Vieser low model floor drain DN75

Vieser low model floor drain DN75

,

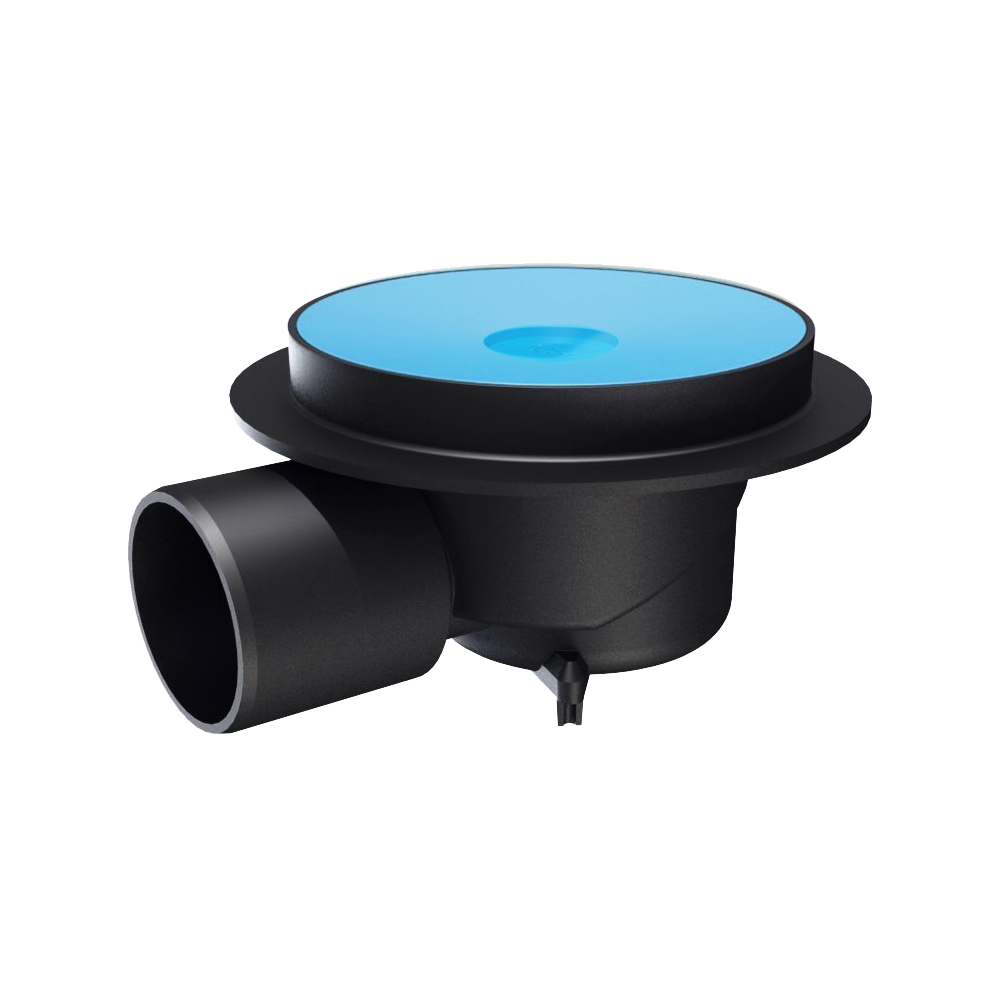

The Vieser low horizontal floor drain DN75 has a 75 mm outlet and is compatible with wood and concrete floors.
  • Type approved
  • Removable water trap
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers
The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring. Please see the structural drawings for different floor structures in our material bank.
Vieser no52615
EAN6418685526151
HVAC3315972
MaterialPolypropylene (PP)
Packaging (box/pallet)24/192
Discharge1.5 l/s

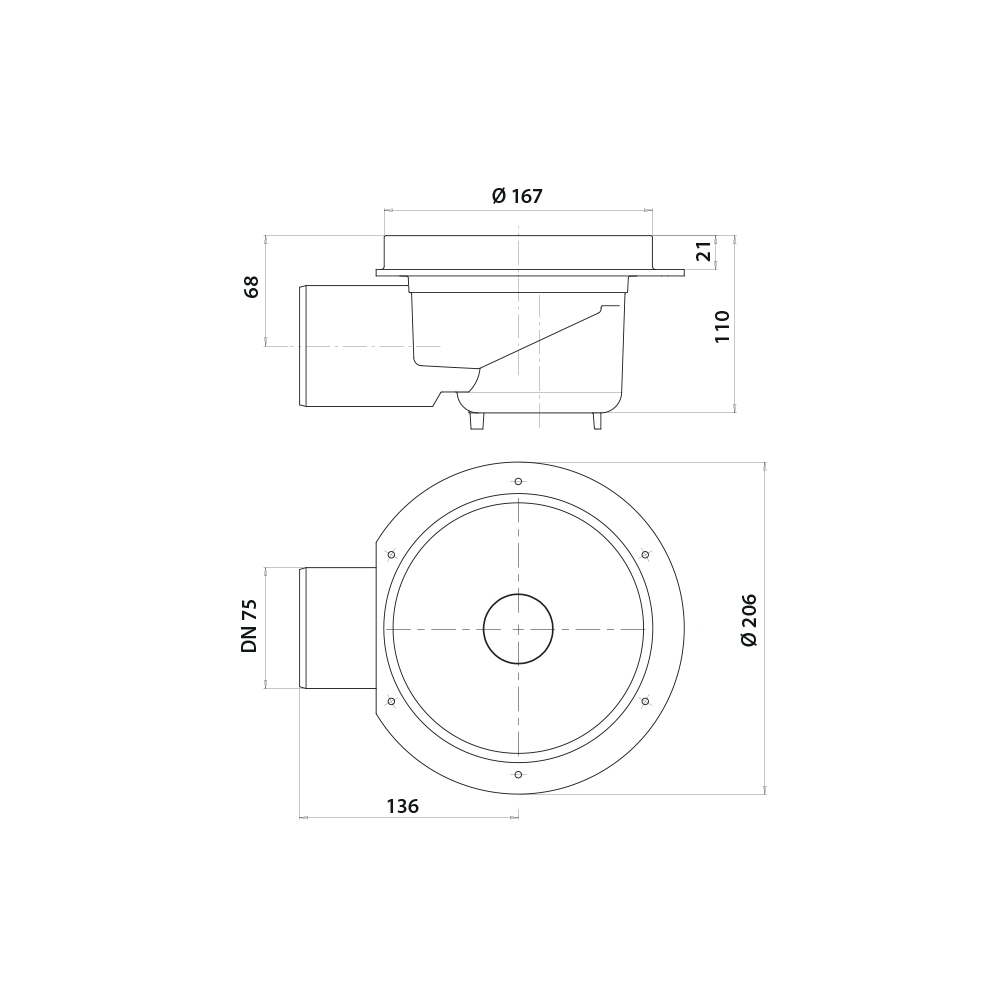

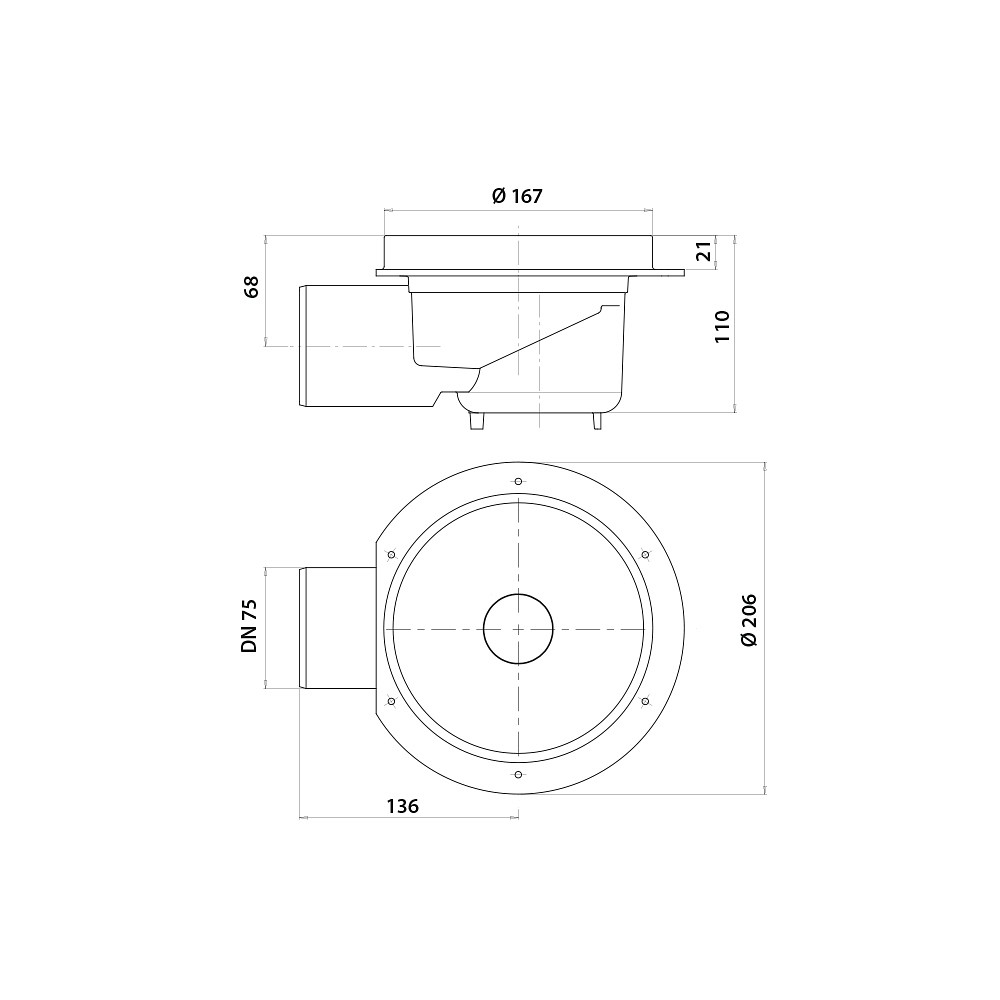

Product dimensions206 x 272 x 110mm
Product weight0.5 kg
Floor materialTile, Plastic mat, Mass

There is no special water trap available for the low horizontal floor drain.

Spare parts

52703
Vieser One casting cover kit

51901
Vieser standard clamping ring and lipsealing

51908

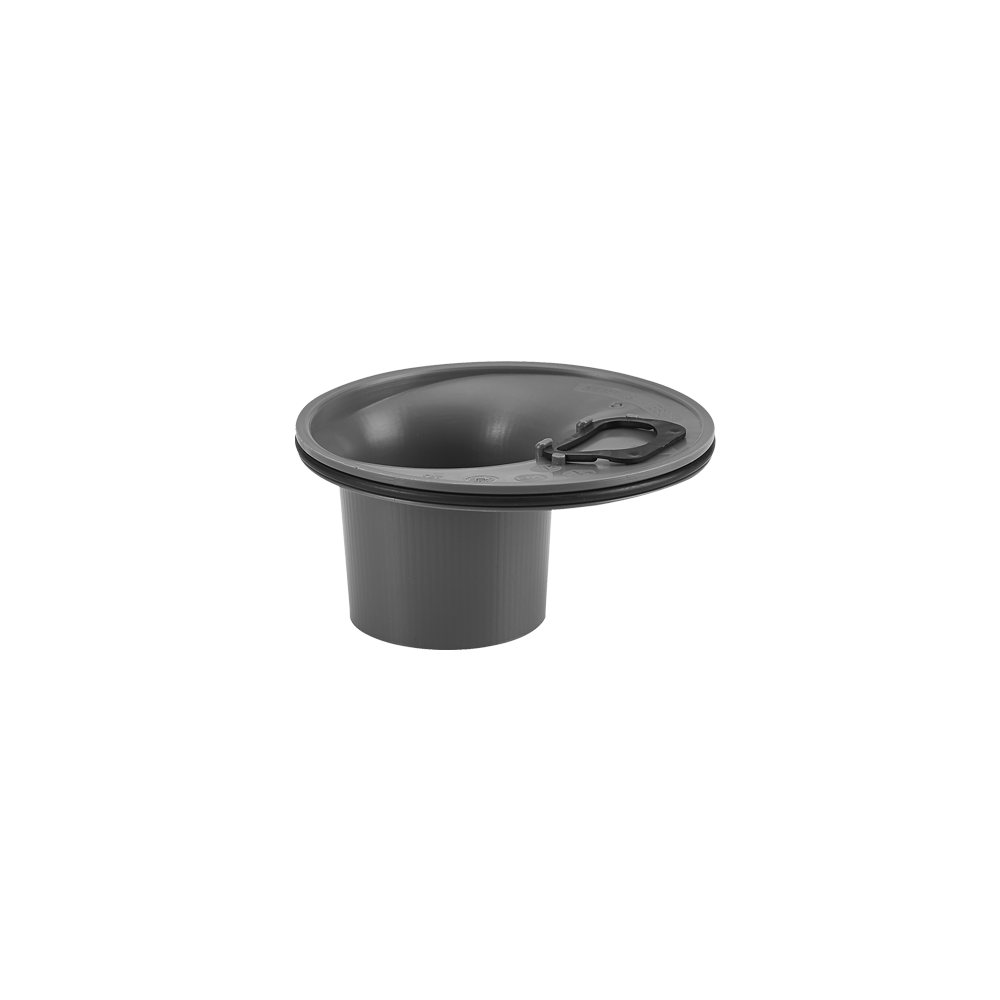

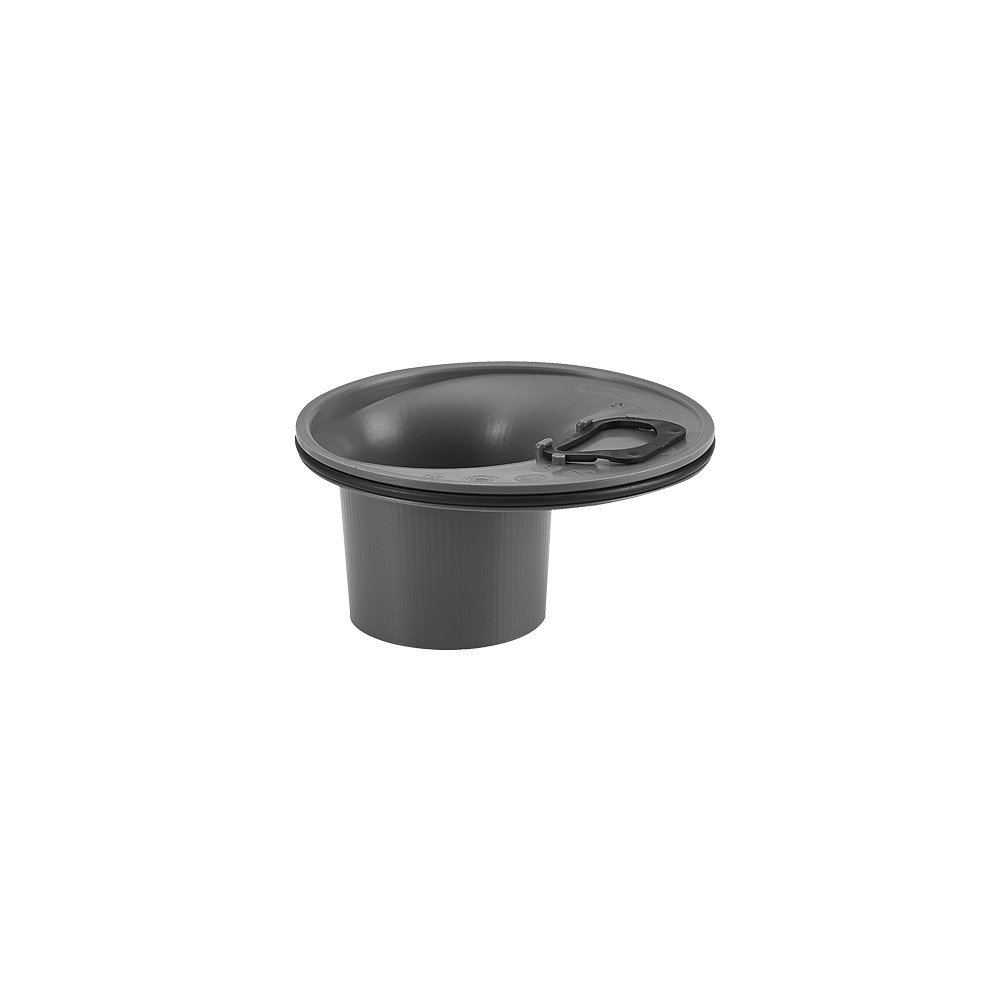

Vieser water trap for low floor drain
