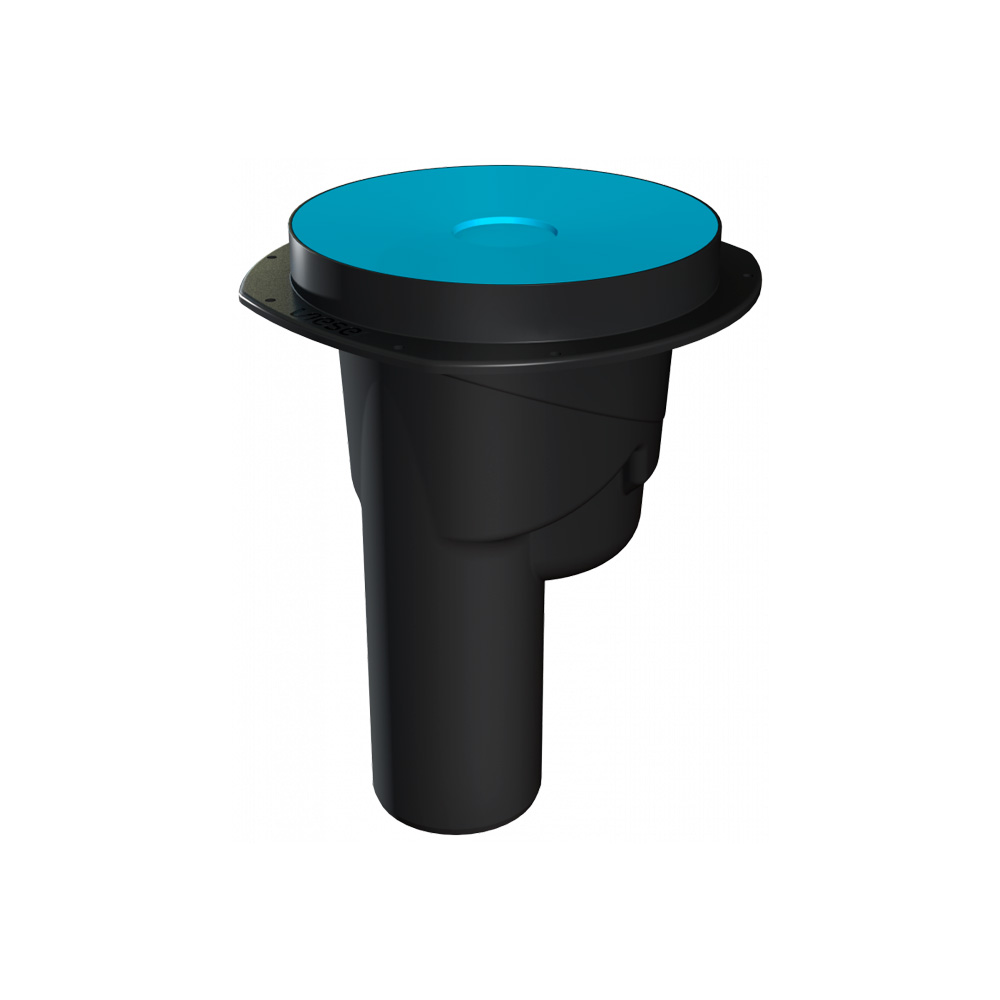

Vieser One vertical floor drain DN75

FLOOR DRAINS

The Vieser One vertical floor drain DN75 has a 75 mm outlet and is compatible with wood and concrete floors.

  • Type approved
  • Removable water trap
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.

Please see the structural drawings for different floor structures in our material bank.

Read more

It is possible to shorten the outlet pipe.

Avainlippu
Vieser no52631
EAN6418685526311
LVI3315979
MaterialPolypropylene (PP)
Packaging (box/pallet)15/120
Discharge2.3 l/s
Product dimensions194 x 194 x 252mm
Product weight0.65 kg
Floor materialTile, Plastic mat, Mass

Vieser One casting cover kit

Show presentation

Vieser One water trap for drain

Show presentation

Vieser standard clamping ring and lipsealing

Show presentation

Vieser distance ring

Show presentation

Vieser extension ring 25-88mm

Show presentation

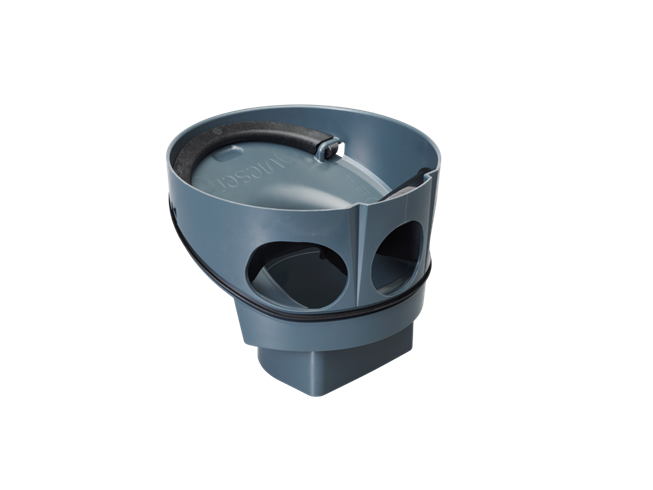

Vieser extension ring with side inlets 3xDN32
