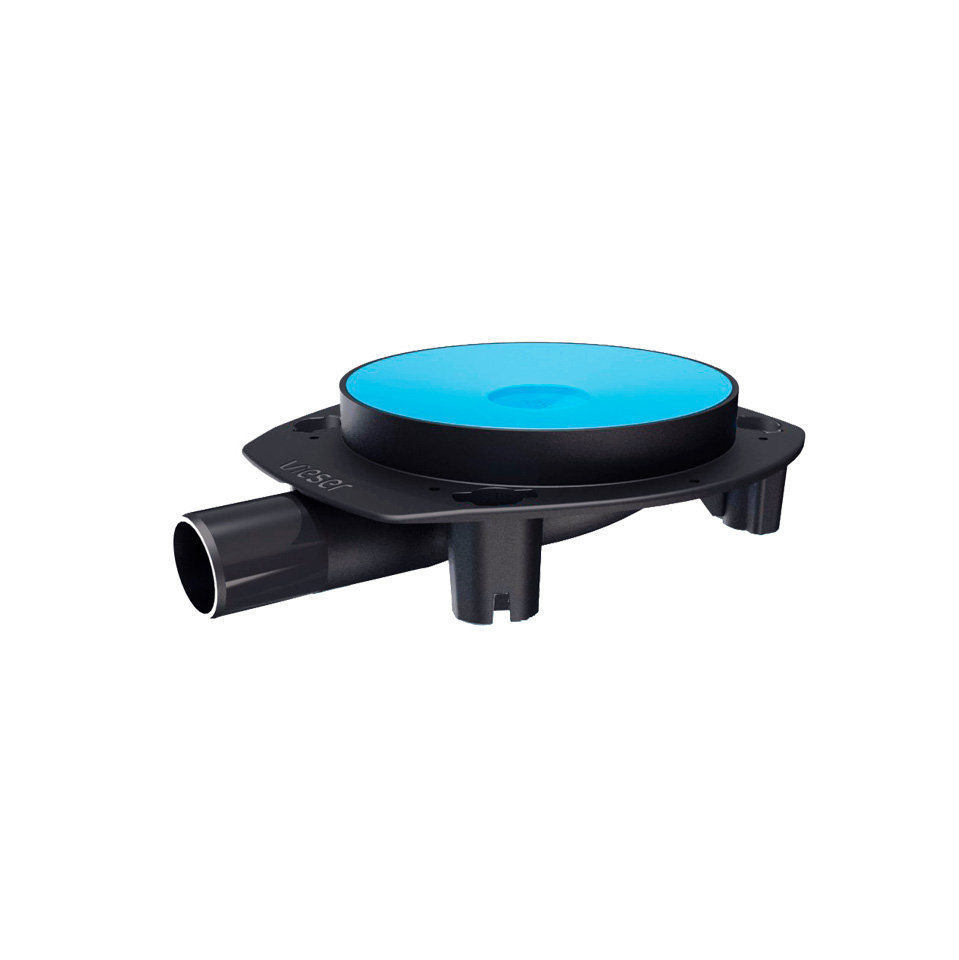

Vieser One untrapped drain DN32/40

FLOOR DRAINS

The Vieser One untrapped floor drain DN32/40 is meant to be used e.g. in a sauna room. The drain is compatible with pipe sizes DN32 and DN40, and with wood and concrete floors.

  • Type approved
  • Does not include a water trap
  • Not suitable for use in a shower room
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

The package includes a drain, casting shield, clamping ring, seal and a tool for installing the clamping ring. Please see the structural drawings for different floor structures in our material bank.

Read more

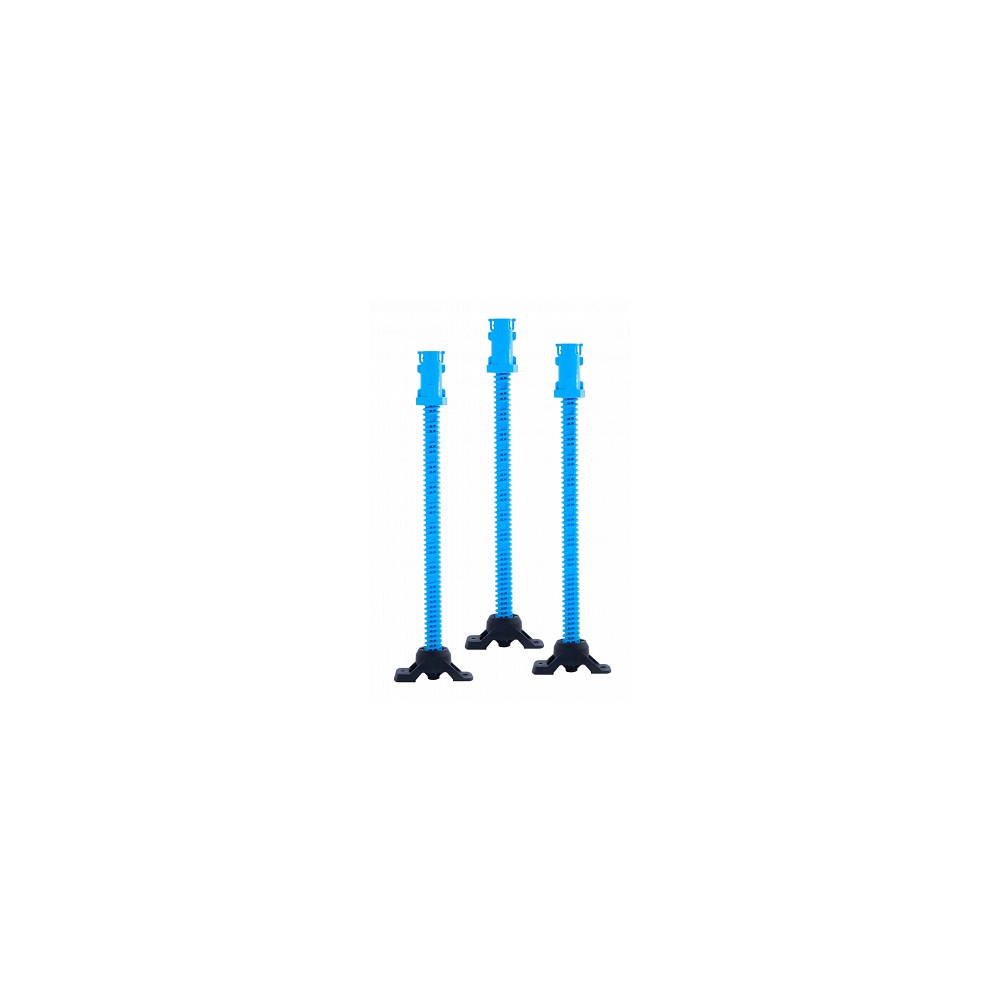

As a spare part, a support leg spare part package is available (HVAC no 3315948). With the support legs, the floor drain can be raised up to 345 mm.

Avainlippu
Vieser no52641
EAN6418685526410
LVI3315942
MaterialPolypropylene (PP)
Packaging (box/pallet)15/180
Discharge0.6 l/s

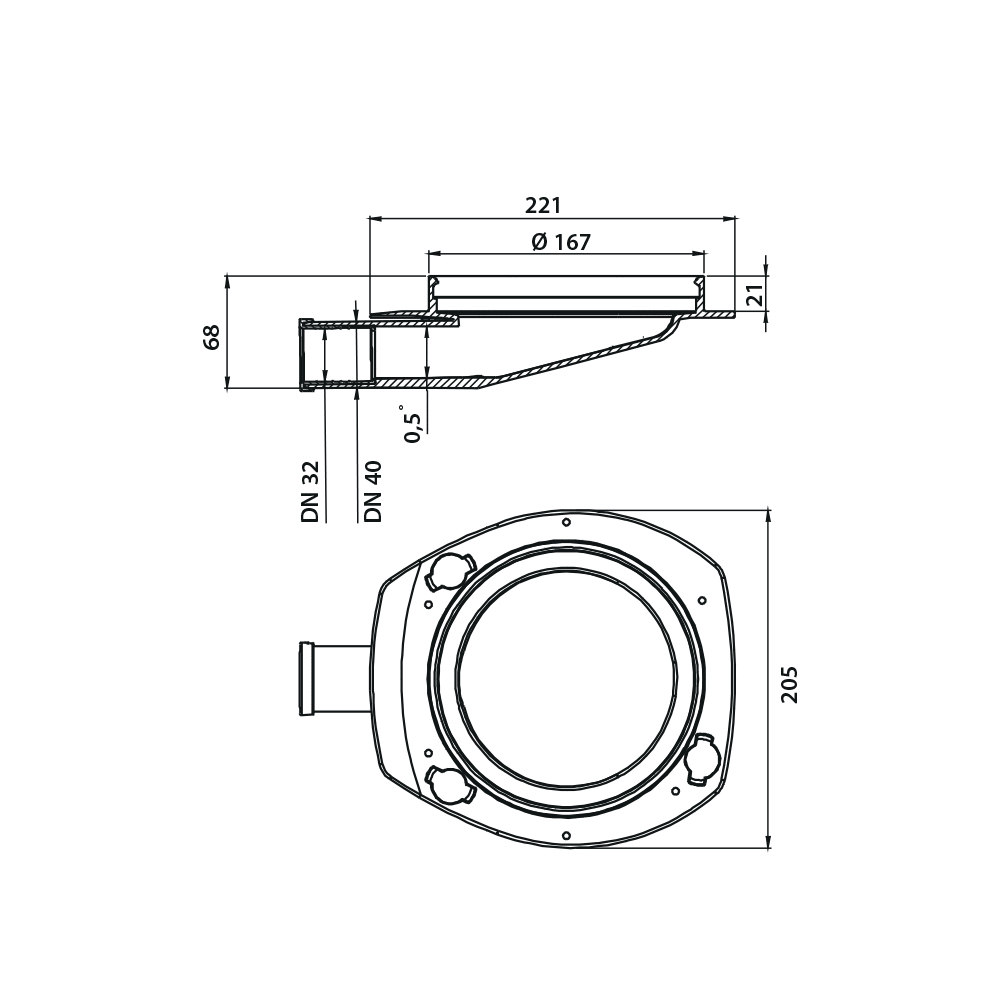

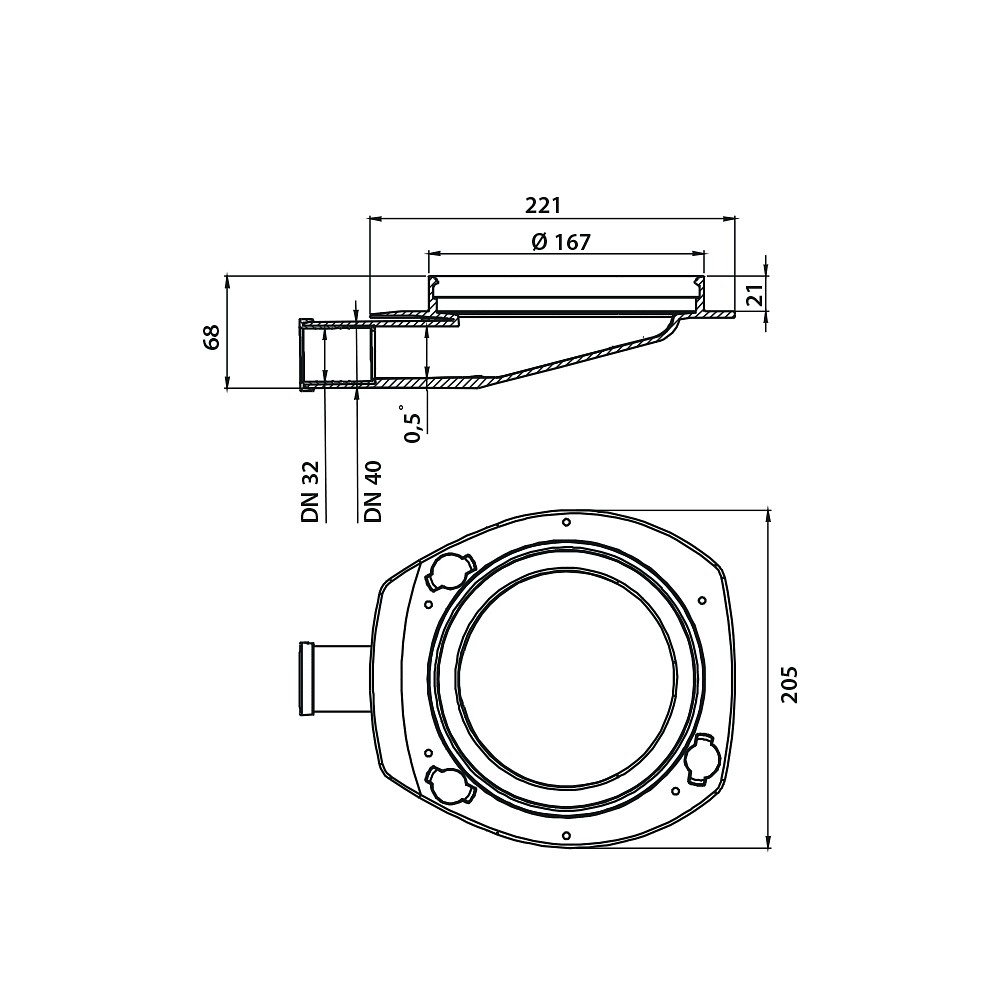

Product dimensions205 x 261 x 69mm
Product weight0.3 kg
Floor materialTile, Plastic mat, Mass
