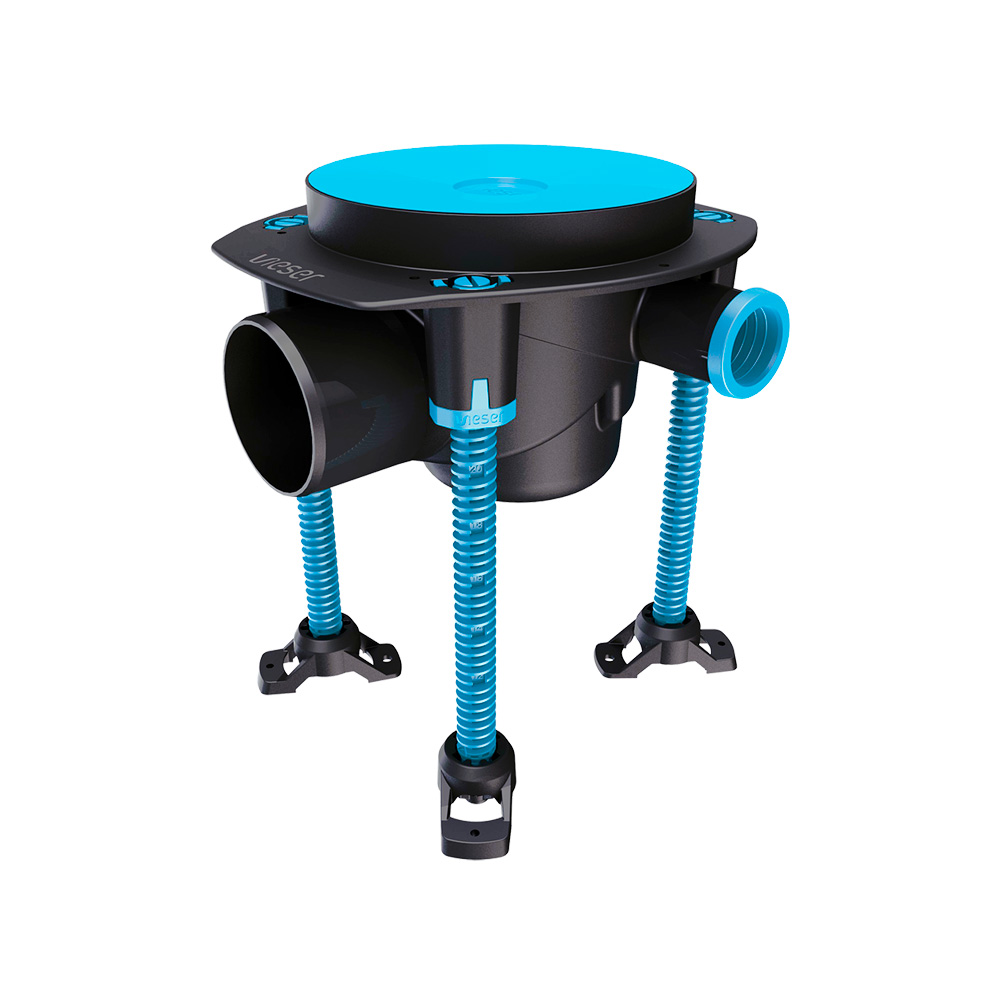

Vieser One floor drain DN75 3×32/40 with support legs

FLOOR DRAINS

The Vieser One horizontal floor drain DN75 has a 75 mm outlet and three 32/40 mm side inlets that can be opened. Compatible with wood and concrete floors.

  • Type approved
  • Removable water trap
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers
  • With the adjustable support legs included in the packaging, the installation height can be set to a maximum of 280 mm.

The package includes a drain, support legs, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.

Please see the structural drawings for different floor structures in our material bank.

Read more

As a spare part, a support leg spare part package is available (HVAC no 3315948). With the support legs, the floor drain can be raised up to 345 mm.

Avainlippu
Vieser no52601
EAN6418685526014
LVI3315931
MaterialPolypropylene (PP)
Packaging (box/pallet)12/96
Discharge1.6 l/s

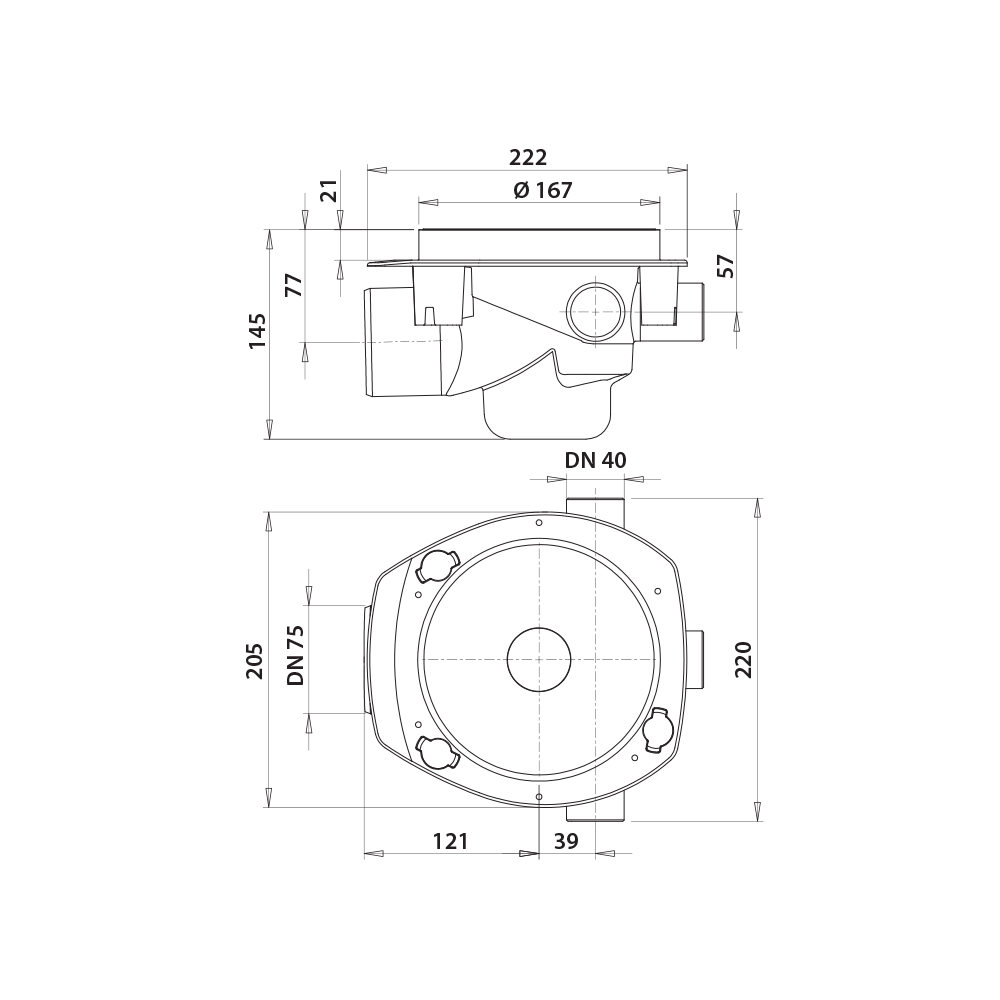

Product dimensions220 x 222 x 145mm
Product weight0.9 kg
Floor materialTile, Plastic mat, Mass

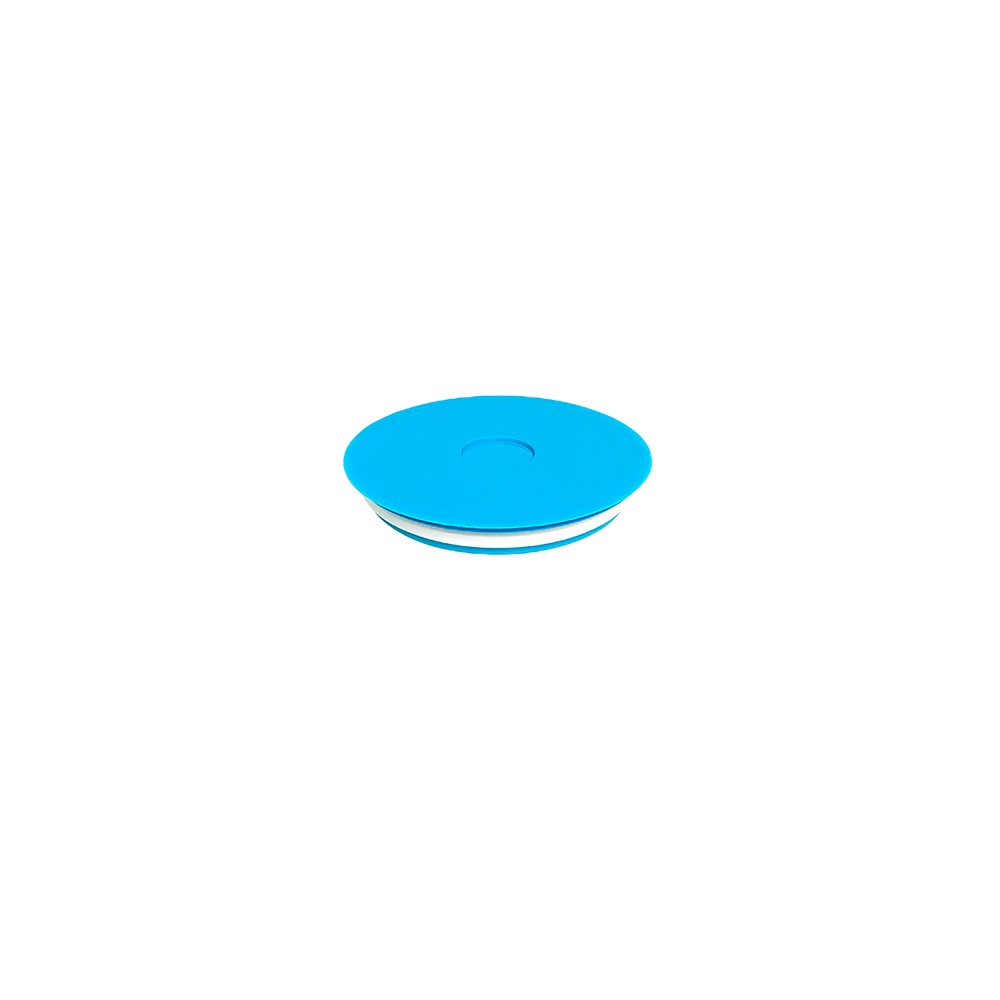

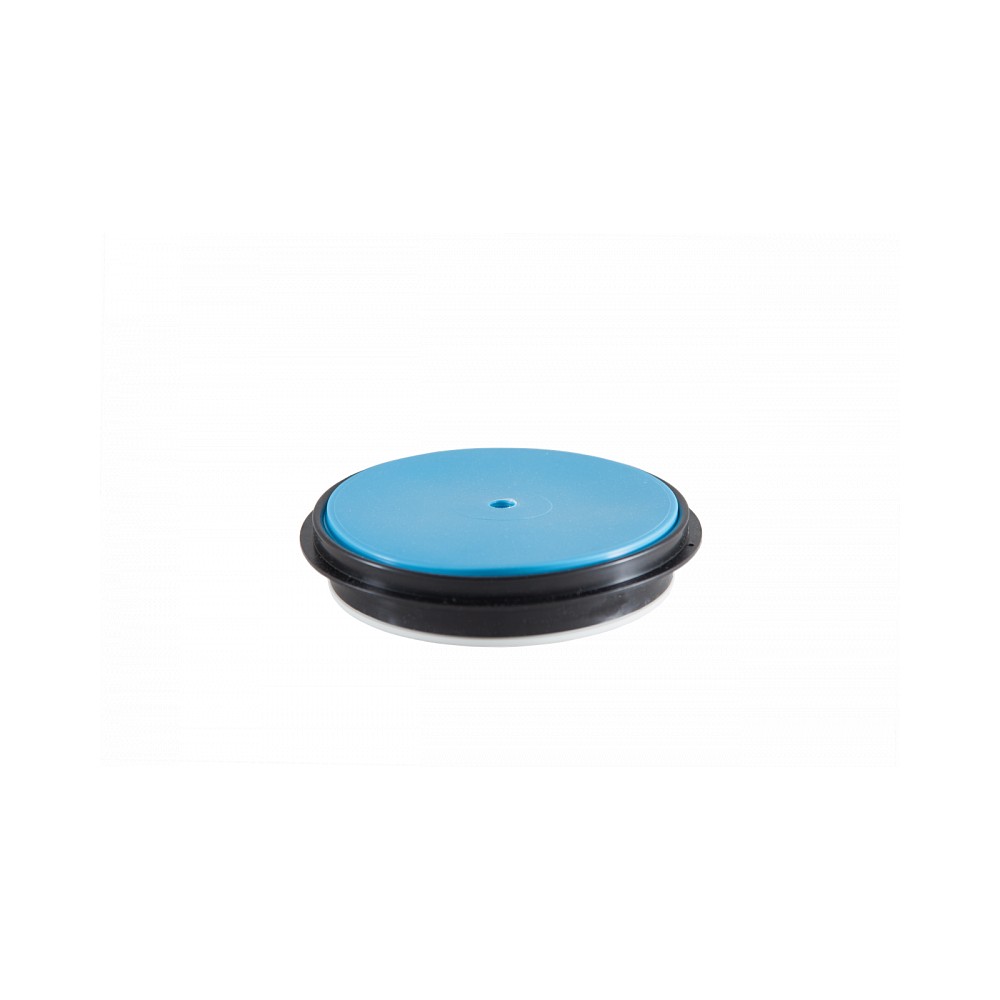

Vieser One casting cover kit

Show presentation

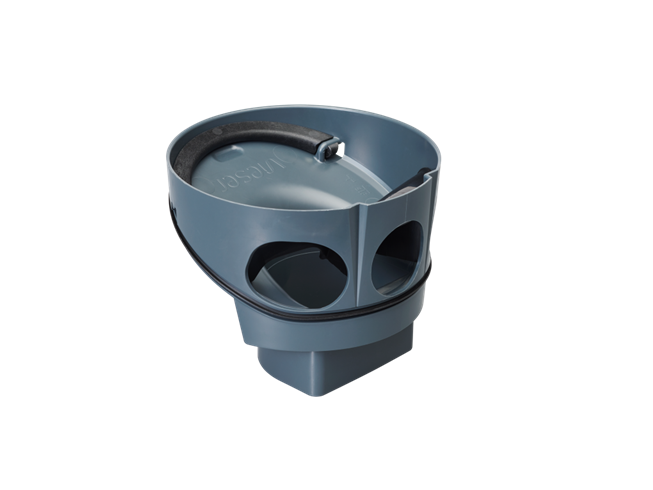

Vieser One water trap for drain

Show presentation

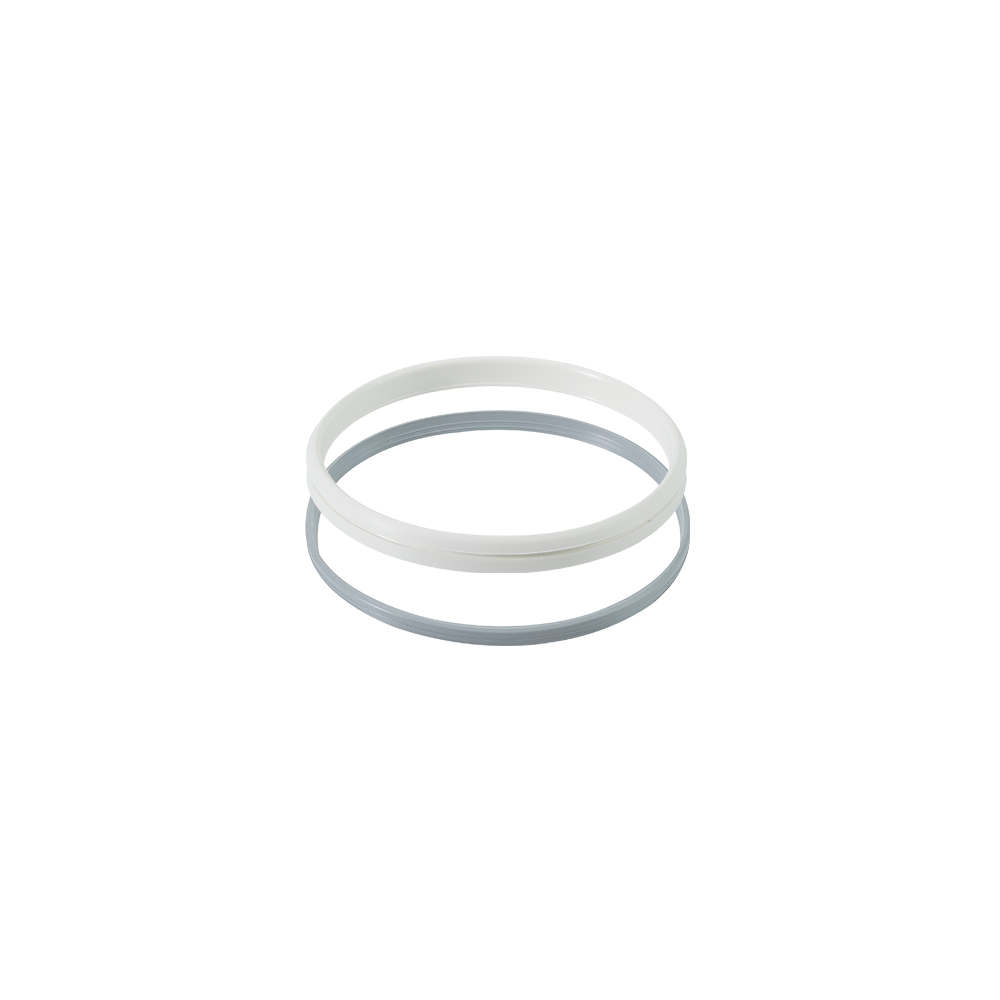

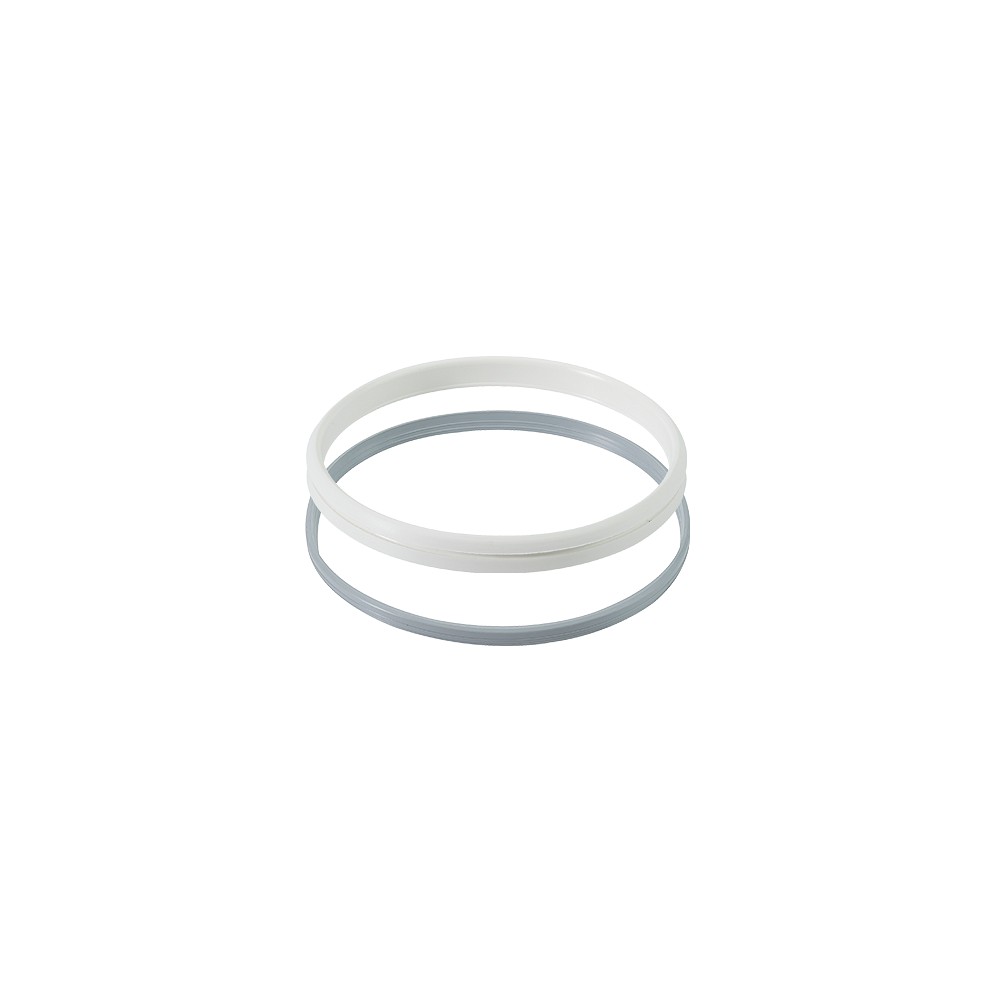

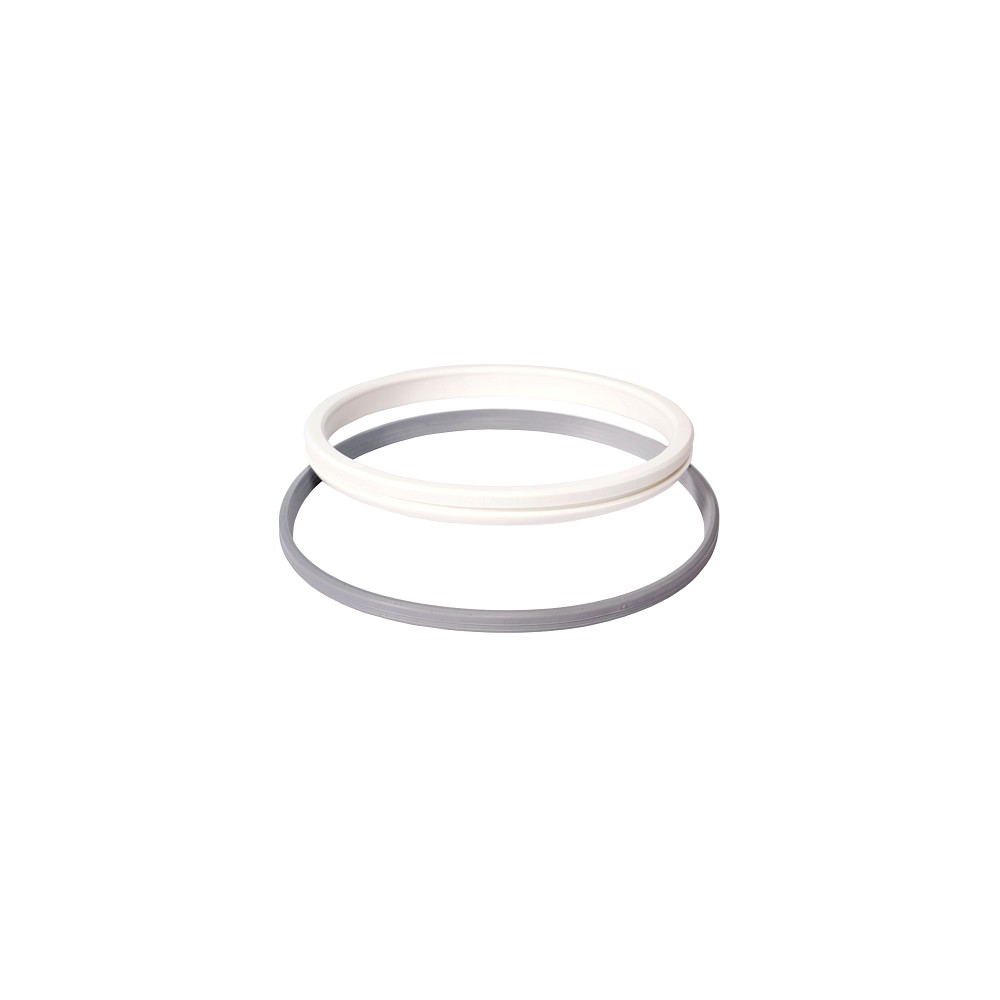

Vieser standard clamping ring and lipsealing

Show presentation

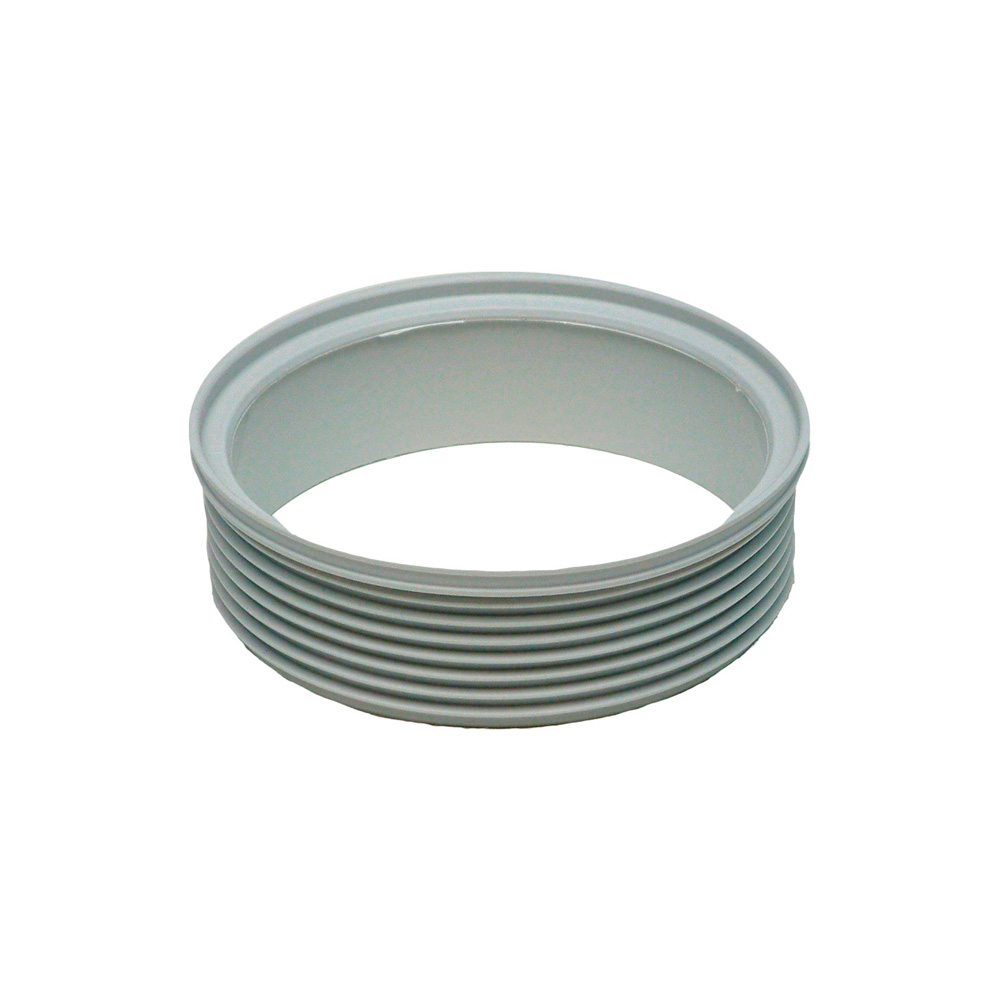

Vieser distance ring

Show presentation

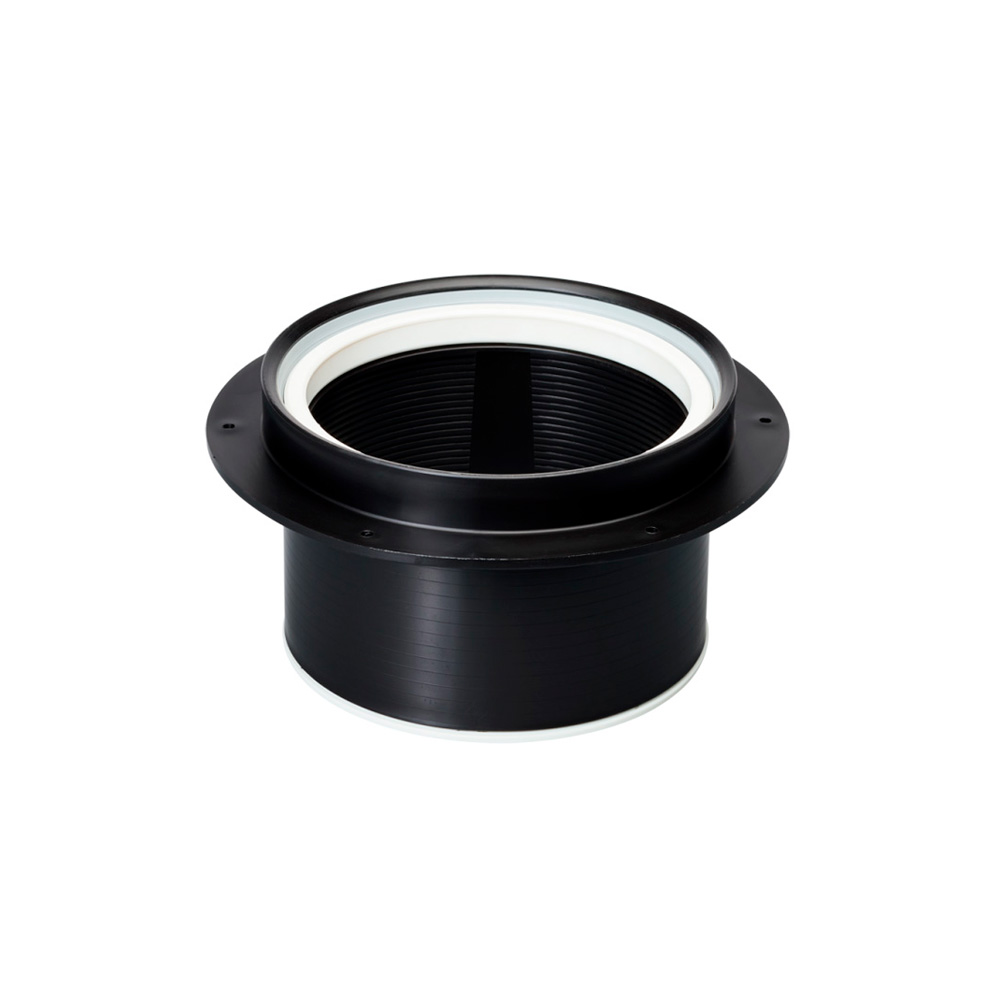

Vieser extension ring 25-88mm

Show presentation

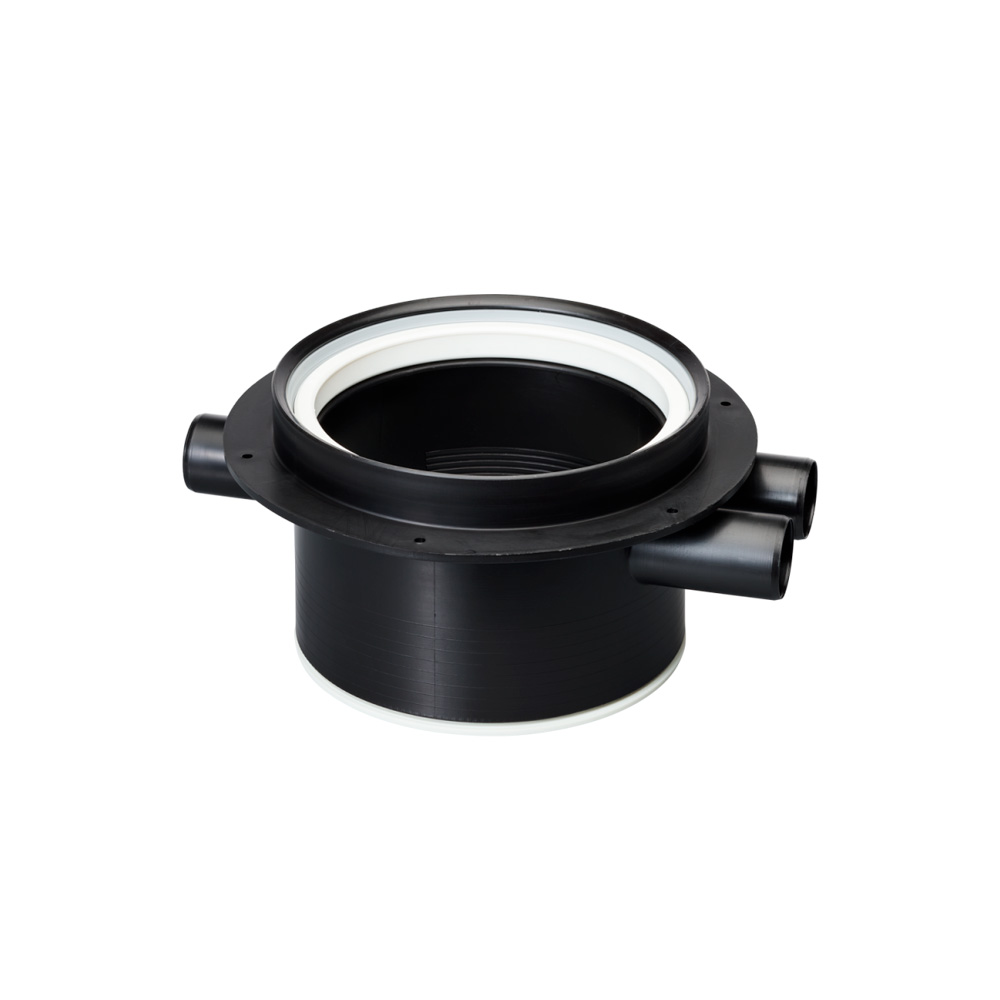

Vieser extension ring with side inlets 3xDN32

Show presentation

Vieser low extension ring 12mm

Show presentation

Vieser low model extension ring 18mm

Show presentation

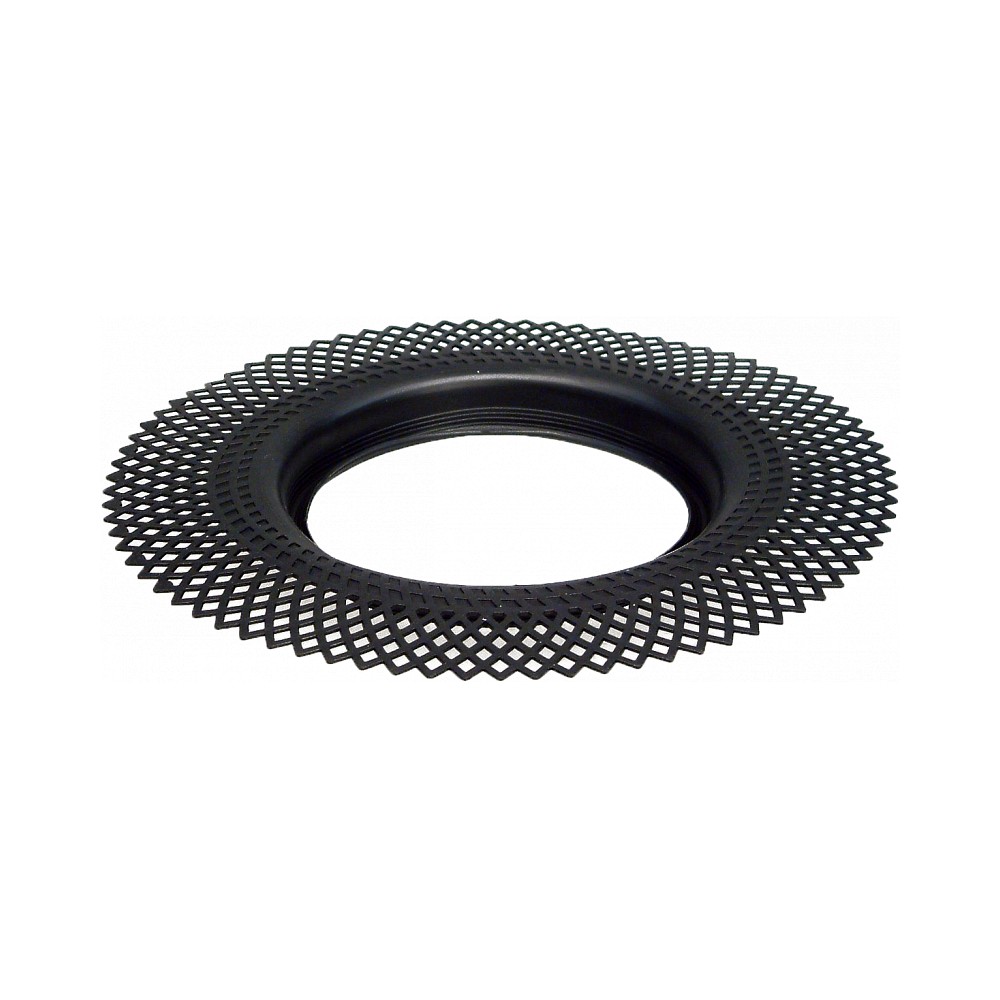

Vieser membrane flange

Show presentation

Vieser One special water trap

Show presentation

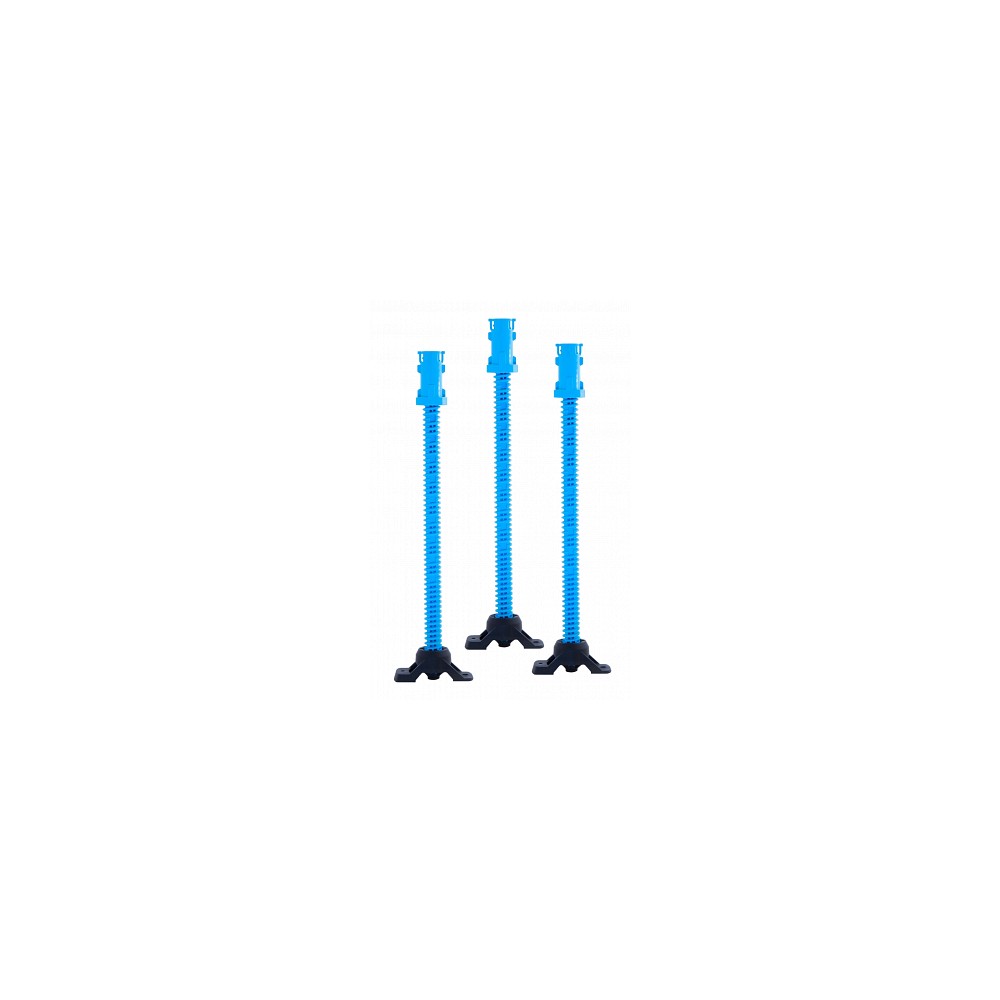

Vieser One support leg package
