Vieser low model floor drain DN50

FLOOR DRAINS

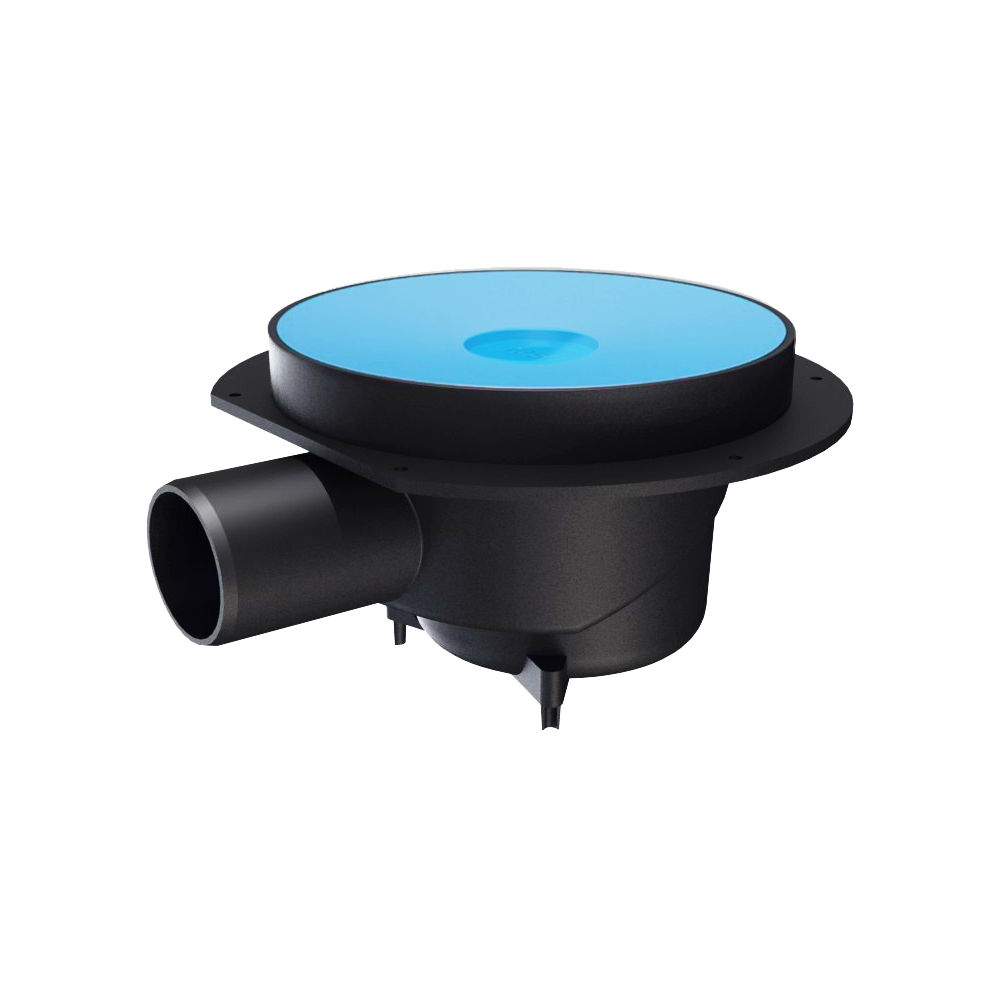

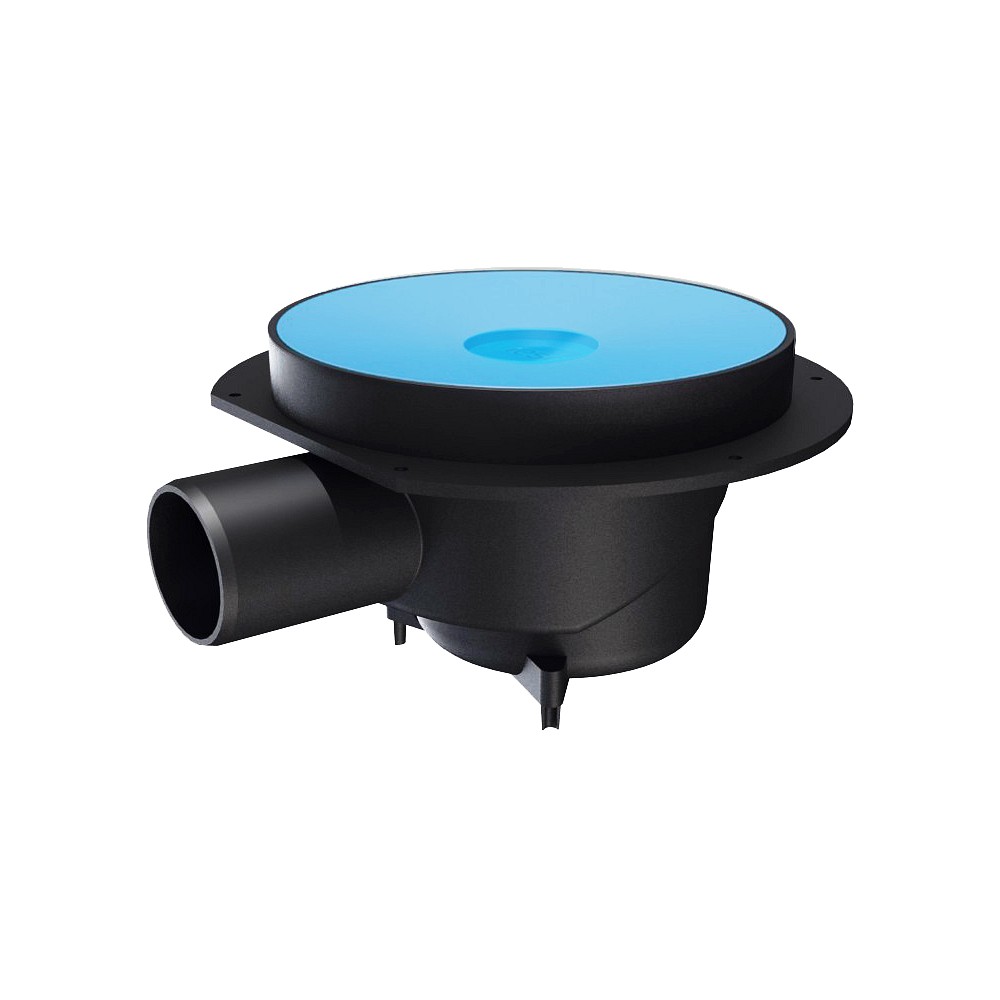

The Vieser low horizontal floor drain DN50 has a 50 mm outlet and is compatible with wood and concrete floors.

  • Type approved
  • Removable water trap
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.

Please see the structural drawings for different floor structures in our material bank.

Read more

There is no special water trap available for the low horizontal floor drain.

Avainlippu
Vieser no52614
EAN6418685526144
LVI3315971
MaterialPolypropylene (PP)
Packaging (box/pallet)24/192
Discharge1.2 l/s

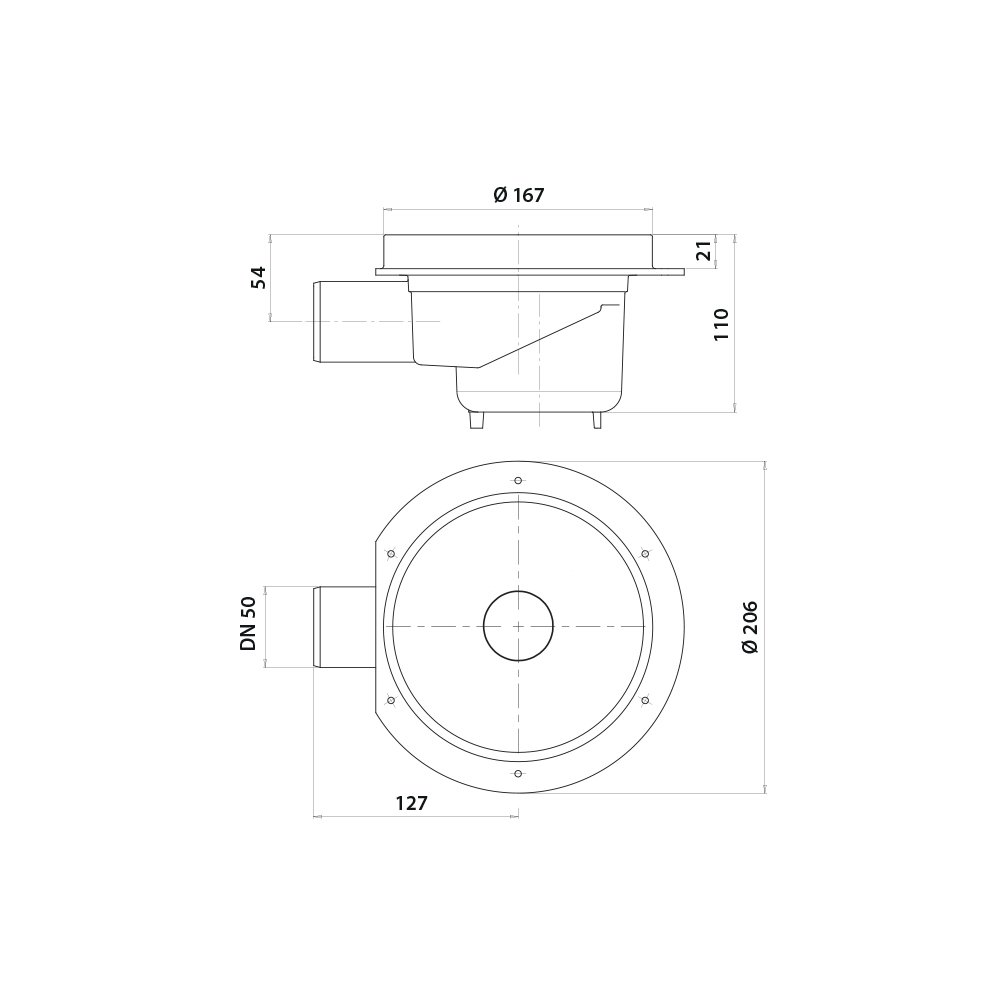

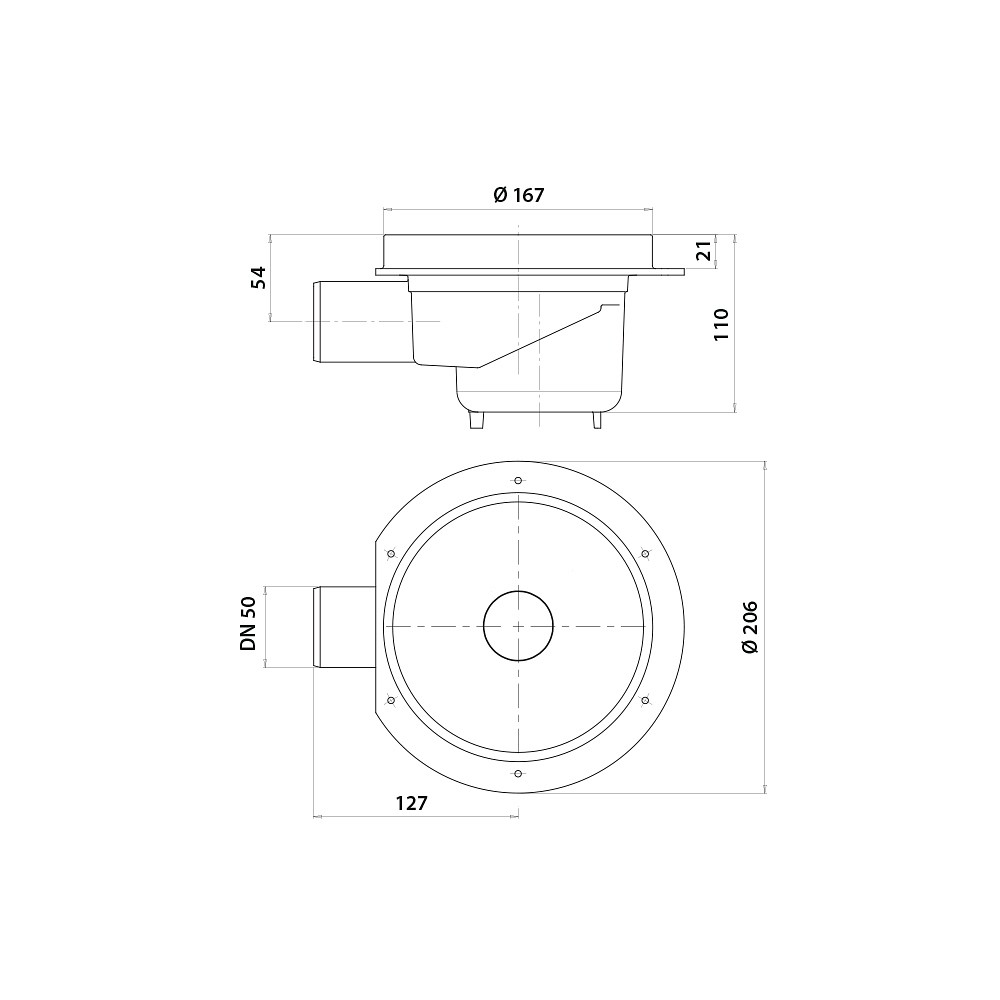

Product dimensions206 x 254 x 110mm
Product weight0.5 kg
Floor materialTile, Plastic mat, Mass
