Vieser Corner Core grating and frame

VIESER CORNER

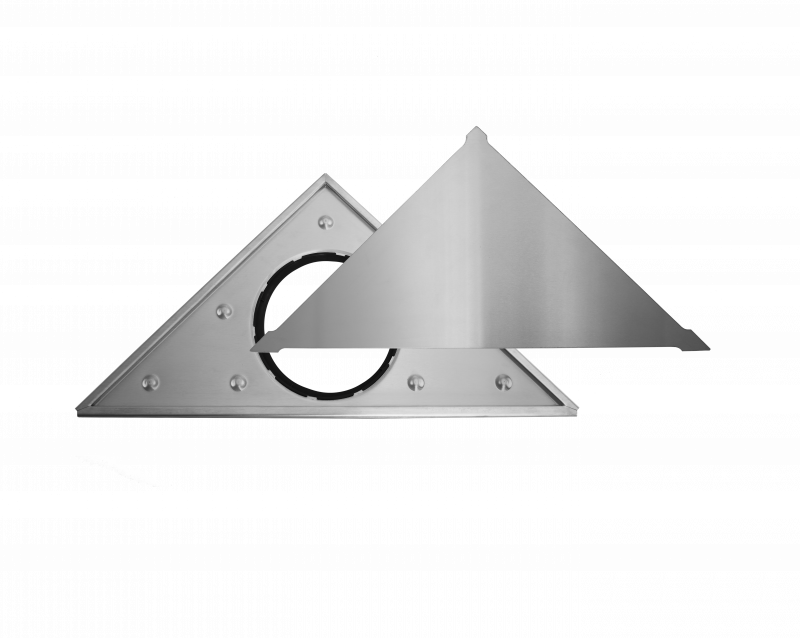

Vieser Corner Core is a stainless steel floor drain grating for corner installation with an adjustable frame. The frame is designed to facilitate the tiling work. By rotating the frame and its adjustment ring, the frame can be aligned with the tiling.

  • Easy to install
  • Easy to clean
  • The total adjustment range is 15 mm – 30 mm.
  • Not compatible with vinyl flooring.
  • Compatible with all Vieser floor drains

The package contains a grating, frame and installation template.

Read more

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system – Tiling example

(DWG)Vieser Corner floor drain system – Tiling example

Avainlippu Design From Finland
Vieser no52928
EAN6430066741519
LVI3315980
MaterialStainless steel (AISI 304)
Packaging (box/pallet)12/144
Product dimensions376 x 526 x 8mm
Product weight1.2 kg
