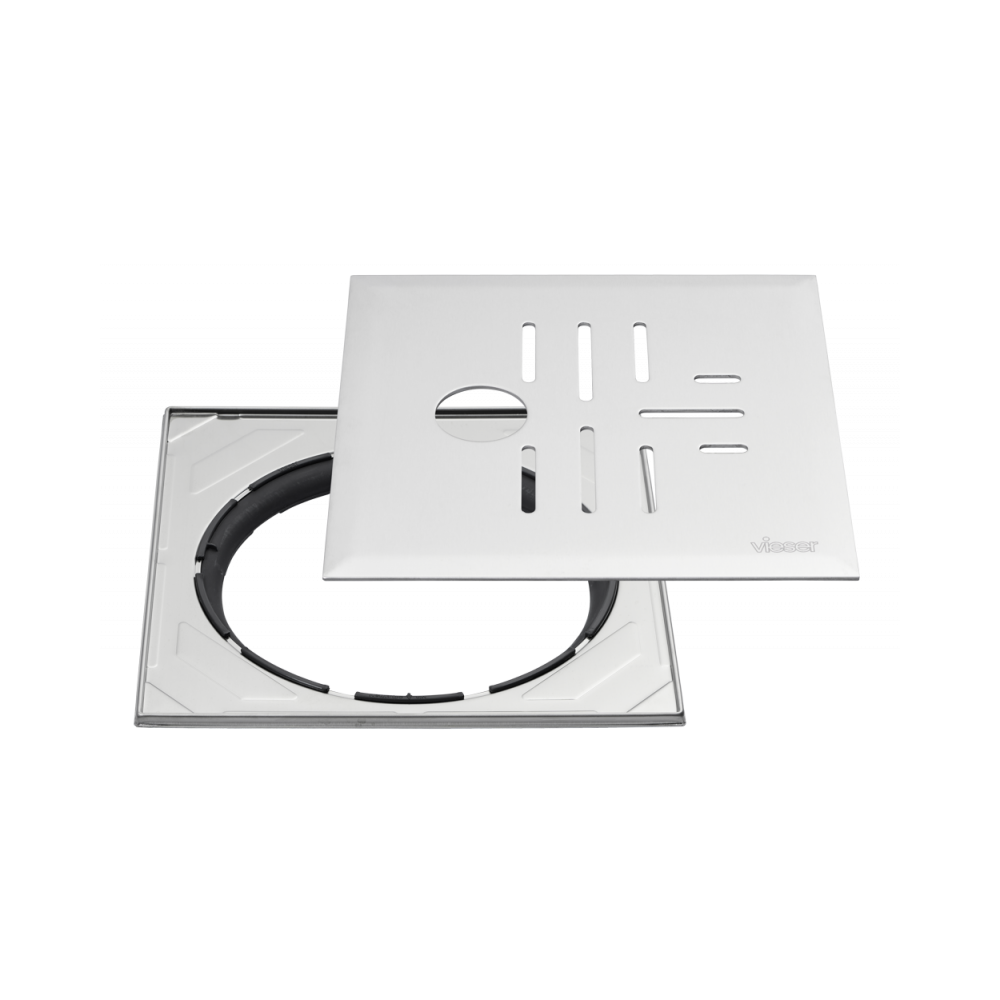

Vieser Classic+ grating with adjustable steel frame 197×197 Ø32

SQUARE GRATINGS

Vieser Classic+ is a stainless steel floor drain grating with an adjustable frame. The grating has a 32 mm throughhole. The frame is designed to facilitate the tiling work. By rotating the frame and its adjustment ring, the frame can be aligned with the tiling.

  • The total adjustment range is 15 mm – 30 mm.
  • Compatible with all Vieser floor drains

The package contains a grating and adjustable stainless steel frame.

Avainlippu
Vieser no51294
EAN6430066741328
LVI3315978
MaterialStainless steel (AISI 304)
Packaging (box/pallet)20/480

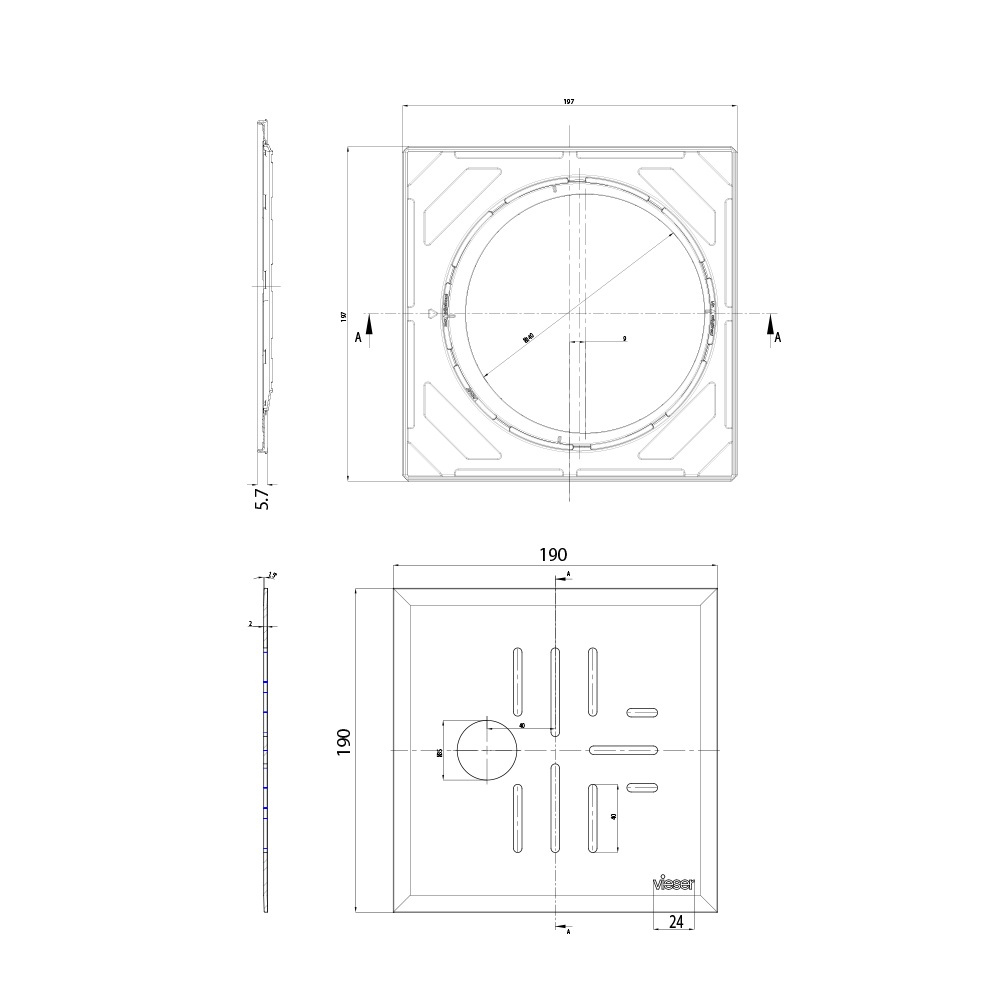

Product dimensions197 x 197 x 5.7mm
Product weight0.6 kg

Floor drains

See products

Installation instructions video
