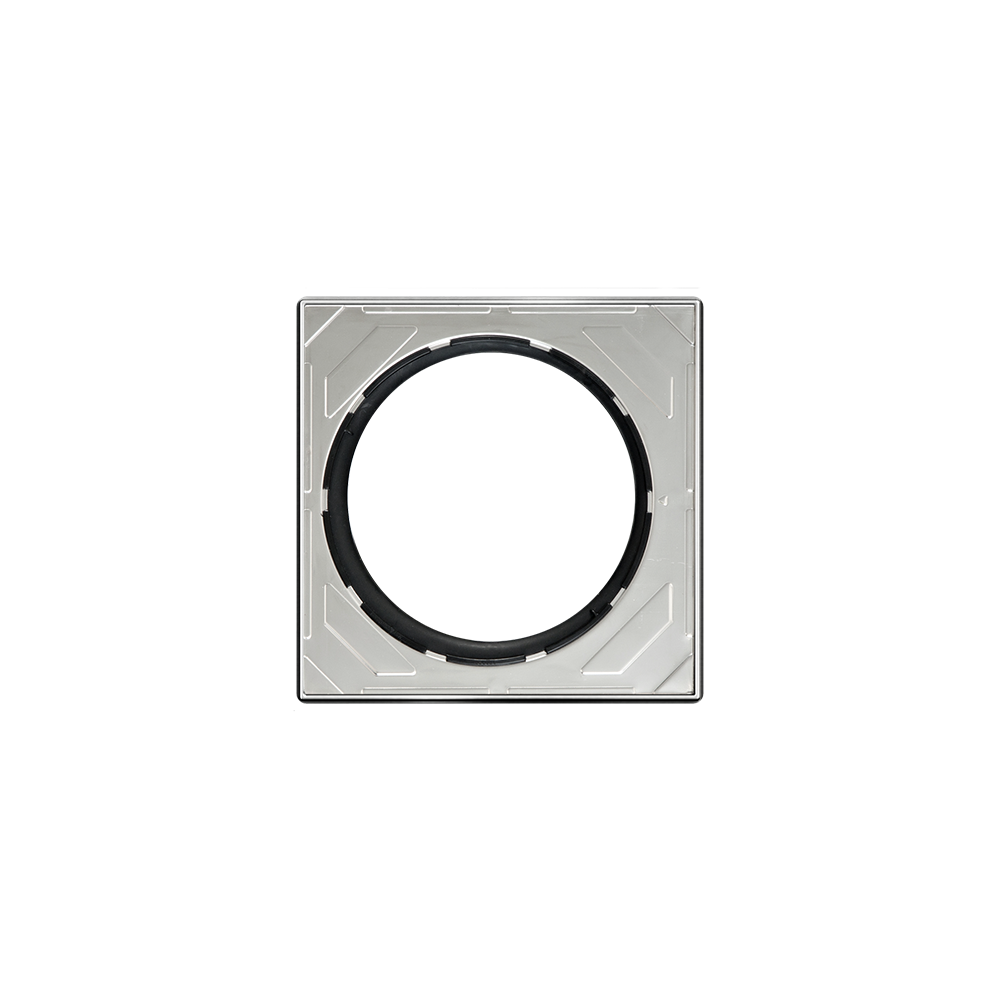

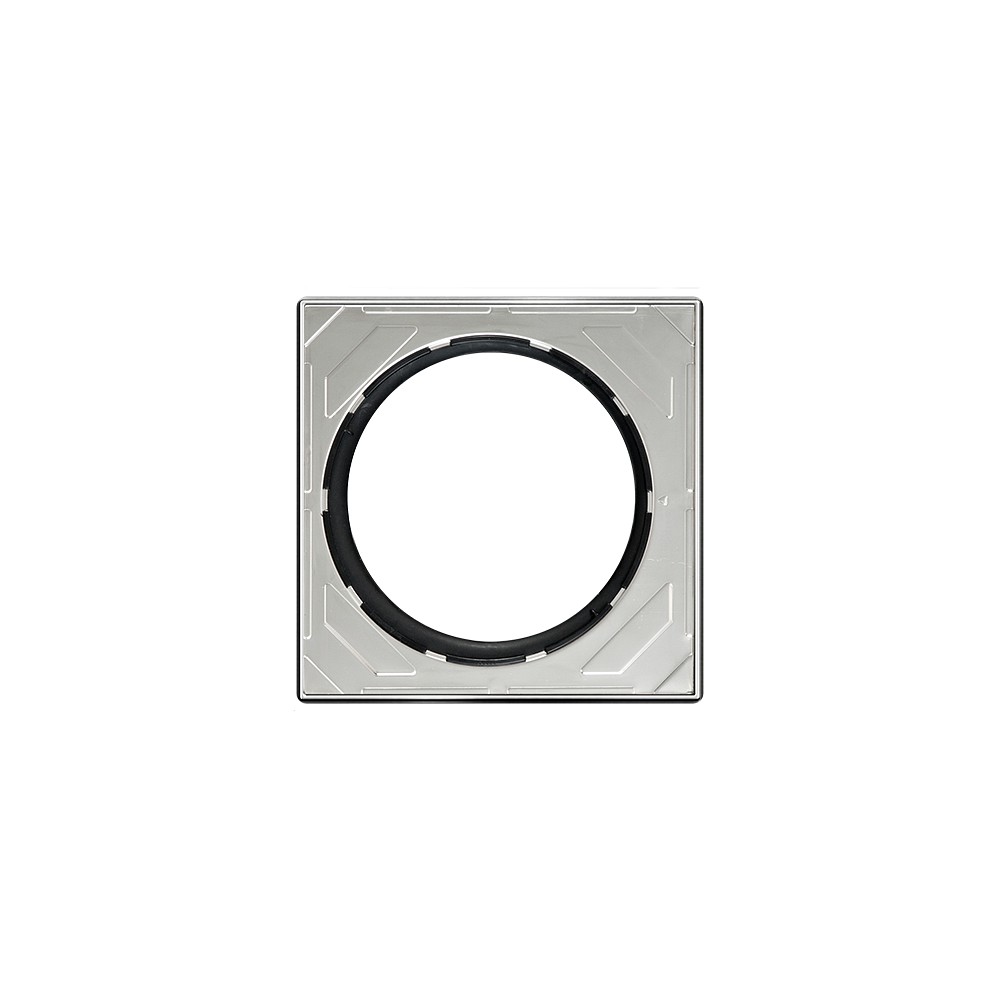

Vieser adjustable stainless steel frame 197×197

SQUARE GRATINGS

The Vieser adjustable stainless steel frame is designed to facilitate the tiling work. By rotating the frame and its adjustment ring, the frame can be aligned with the tiling.

  • The total adjustment range is 15 mm – 30 mm.
  • Compatible with all Vieser 197 x 197 mm square gratings.
  • Compatible with all Vieser floor drains

The package contains an adjustable stainless steel frame.

Avainlippu
Vieser no51280
EAN6418685512802
LVI3316229
MaterialStainless steel (AISI 304)
Packaging (box/pallet)15/600

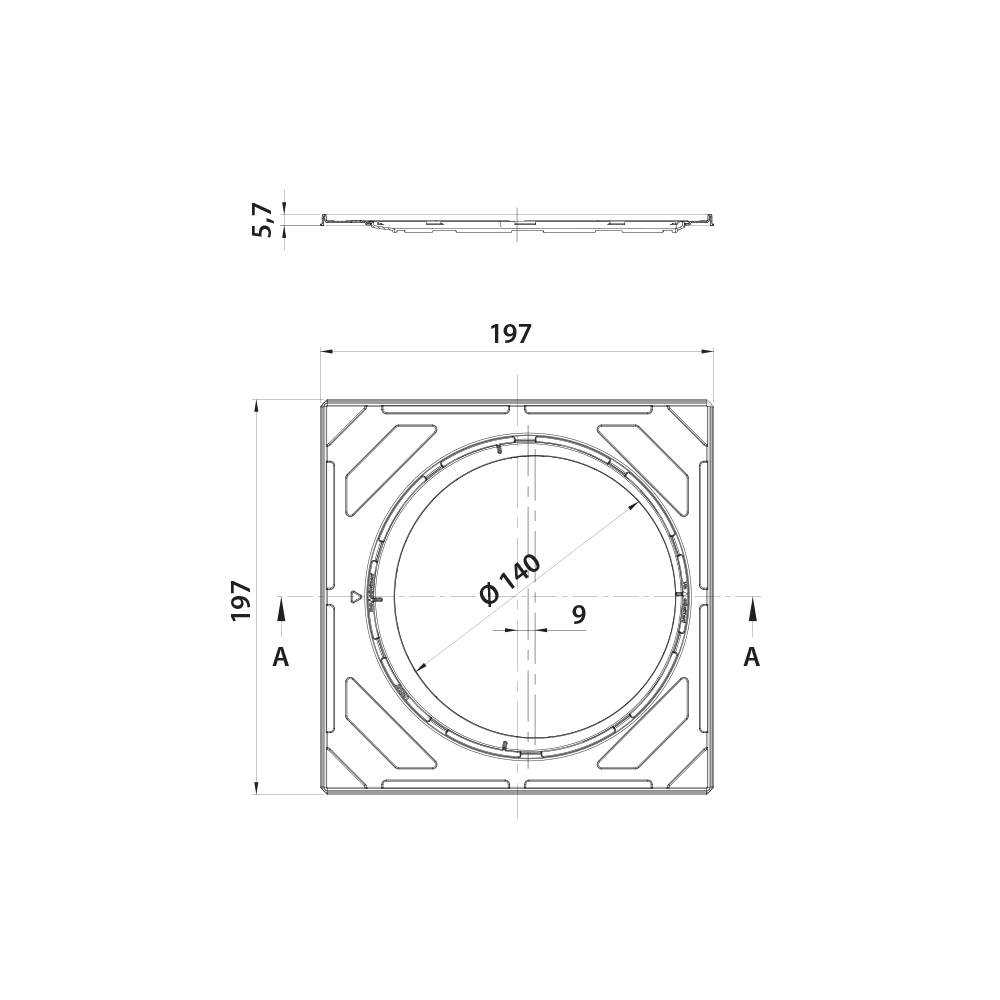

Product dimensions197 x 197 x 5.7mm
Product weight0.2 kg

Floor drains

See products

Installation instructions video
