|Material||Stainless steel (AISI 304)|

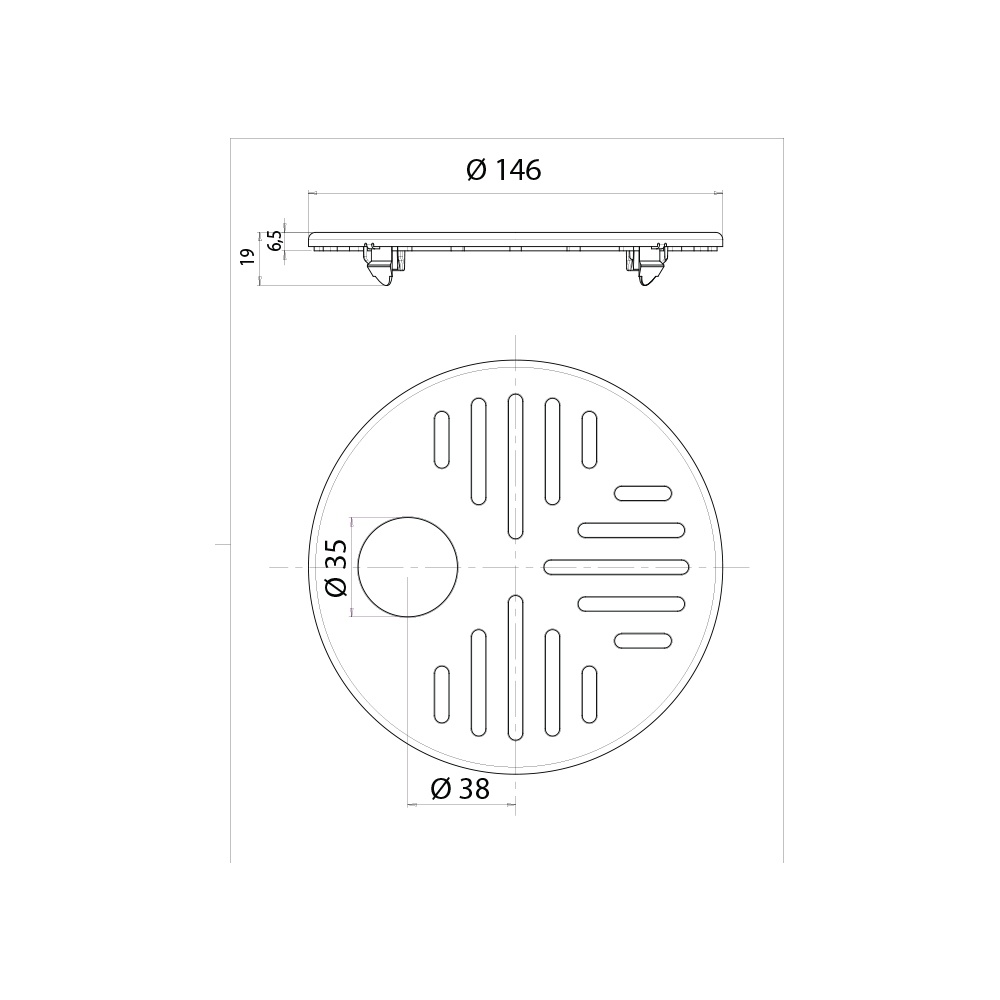

|Product dimensions||146 x 146 x 19 mm|
|Product diameter||150 mm|
|Package dimensions||19 x 185 x 210 mm|
|Package weight||0.2 kg|
Vieser round grating Ø150-Ø32
FLOOR DRAINS AND ACCESSORIES, SQUARE GRATINGS
To be installed with a clamping ring onto plastic membrane flooring. A distance ring (Vieser no. 51206) must be installed under a grating in the case of tiled floors.

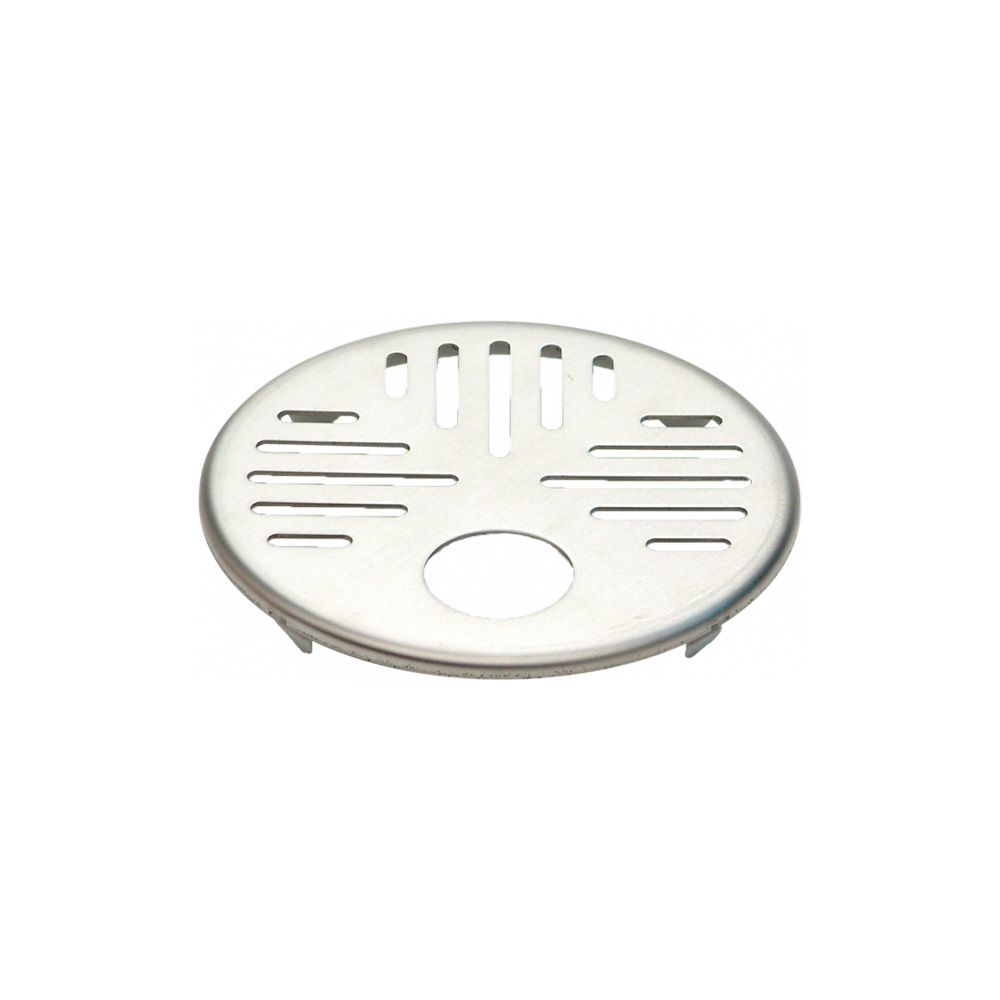

The package contains a round stainless steel grating.
Vieser’s drain and cover combination comes with a 10-year system guarantee.
Our stainless steel gratings are fully compatible with
all our drains and extension rings.
(PDF)Vieser round and square grating in tiled floor
(DWG)Vieser round and square grating in tiled floor
