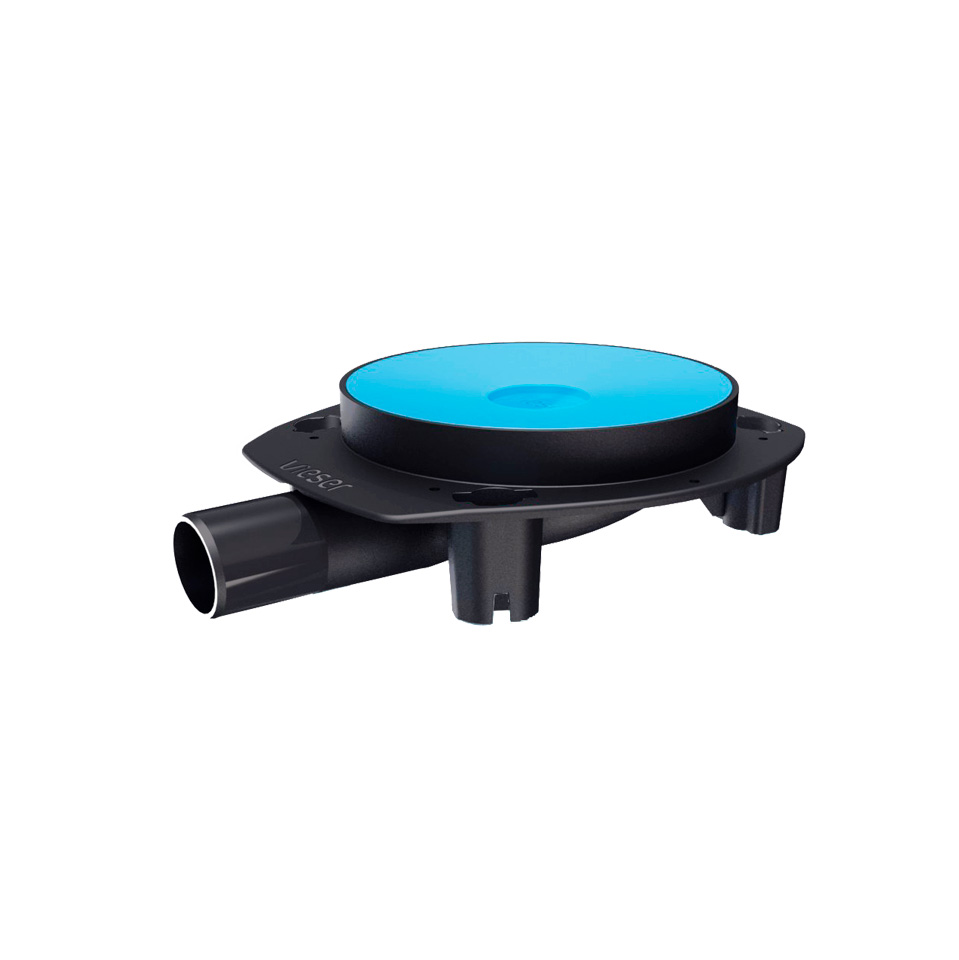

Vieser One untrapped drain DN32/40

FLOOR DRAINS

Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.

The untrapped drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool.

An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Read more

You can download water proofing pictures as a PDF & DWG file.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser untrapped drain is compatible with Vieser design floor drains:

Vieser Line (Vieser Line – Linear drain system)
Vieser Dot (Vieser Dot – Design floor drain system)
Vieser Square (Vieser Square – Design floor drain system)
Vieser Corner (Vieser Corner floor drain system)

Avainlippu
Vieser no52641
EAN6418685526410
HVAC3315942
MaterialPolypropylene PP
Packaging (box/pallet)7/84
Discharge0,6 l/s

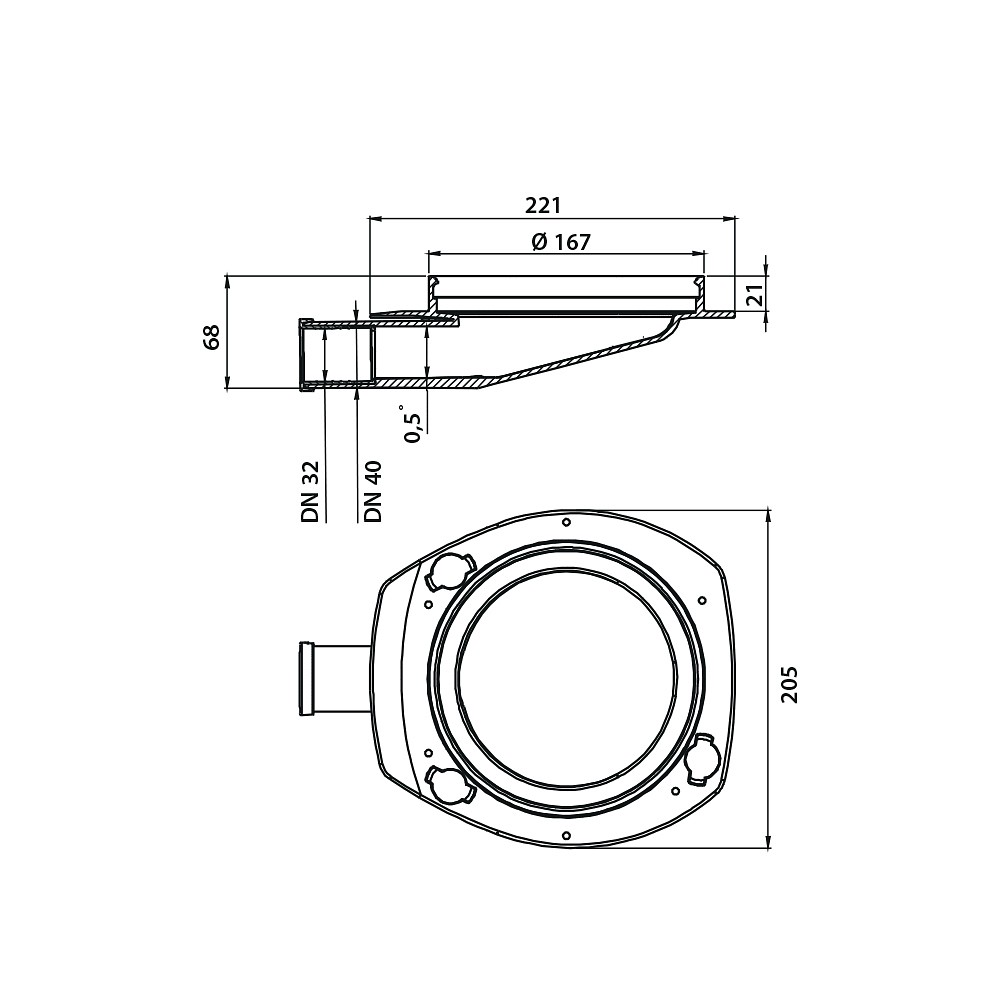

Product dimensions261 x 205 x 69 mm
Product diameter150 mm
Package weight0.55 kg
Product dimensions261 x 205 x 69 mm
Product diameter150 mm
Package weight0.55 kg

Vieser clamping ring with screws

Show presentation

Vieser extension ring 25-88mm

Show presentation

Vieser extension ring with side inlets 3xDN32

Show presentation

Vieser low extension ring 12mm

Show presentation

Vieser low model extension ring 18mm

Show presentation

Vieser One casting cover kit

Show presentation

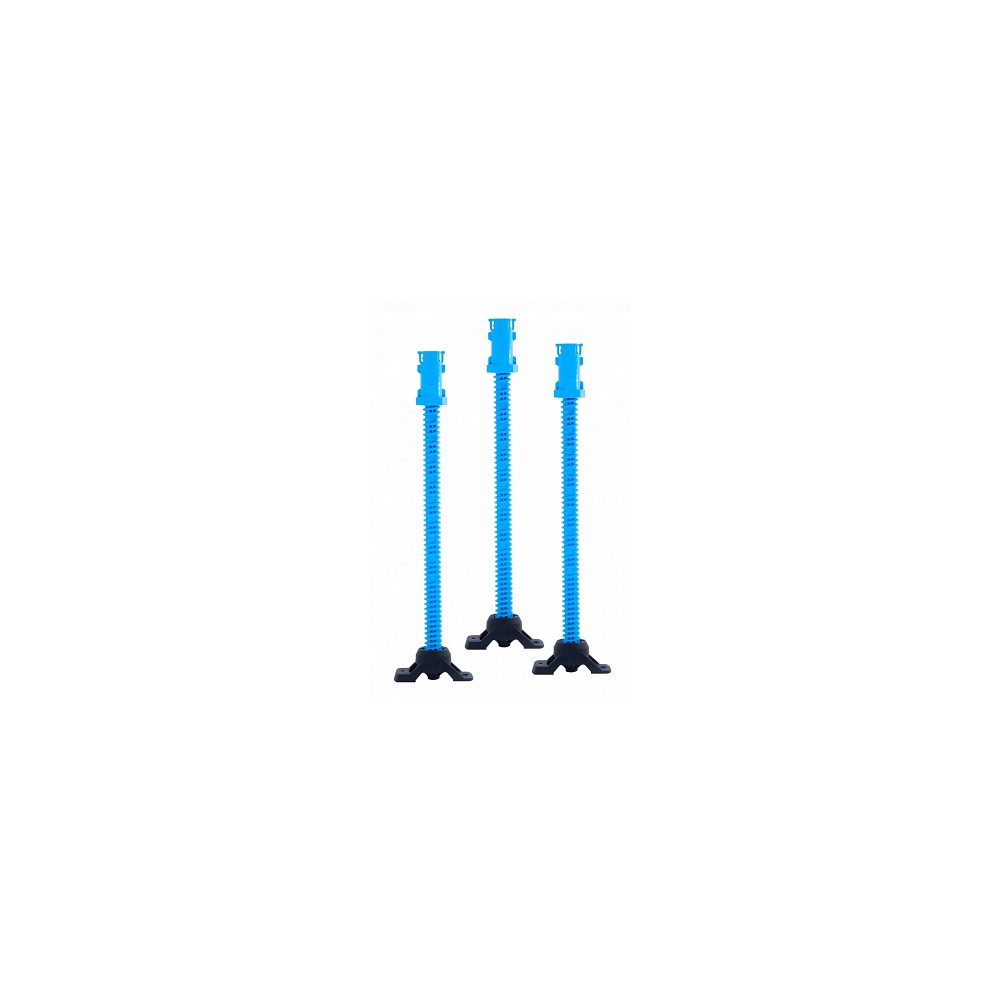

Vieser One support leg package
