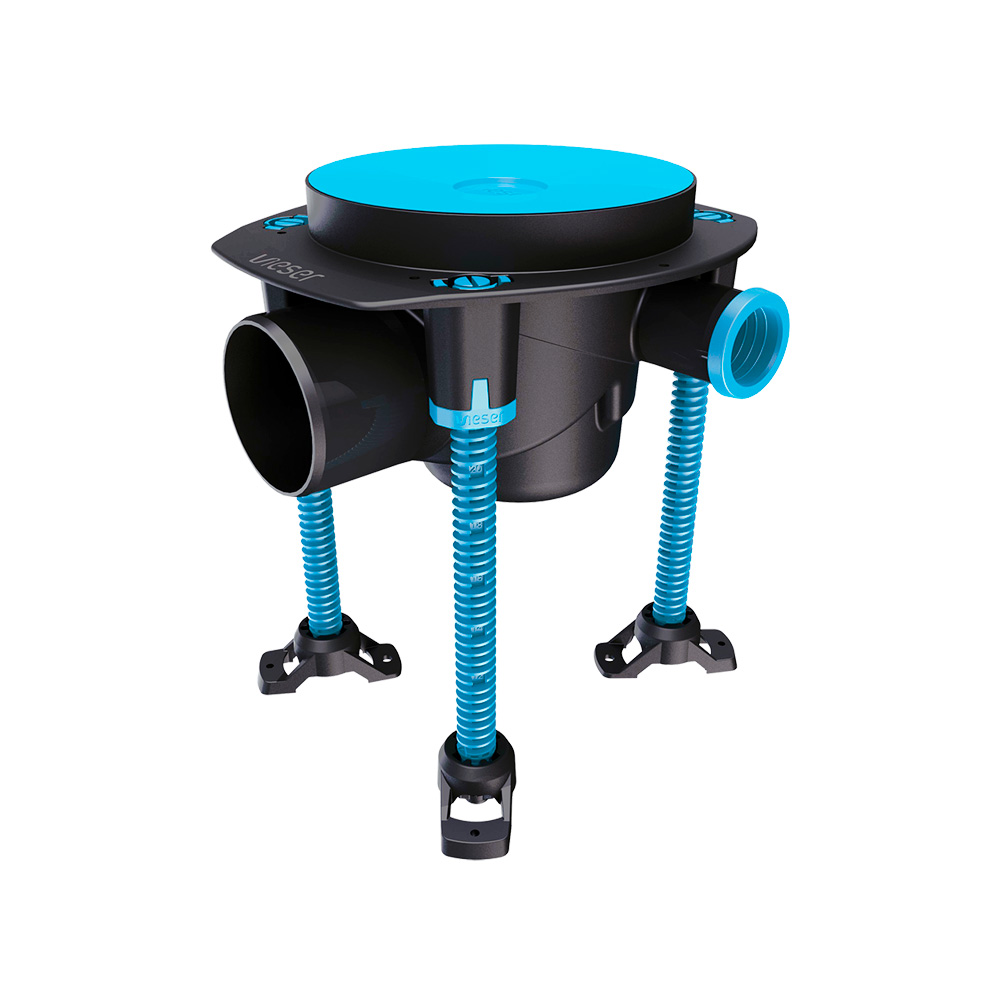

Vieser One floor drain DN75 3×32/40 with support legs

FLOOR DRAINS

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

You can download water proofing pictures as a PDF & DWG file.

Read more

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser One floor drain is compatible with Vieser design floor drains:

Vieser Line (Vieser Line – Linear drain system)
Vieser Dot (Vieser Dot – Design floor drain system)
Vieser Square (Vieser Square – Design floor drain system)
Vieser Corner (Vieser Corner floor drain system)

Avainlippu
Vieser no52601
EAN6418685526014
HVAC3315931
MaterialPolypropylene PP
Packaging (box/pallet)12/96
Discharge1,6

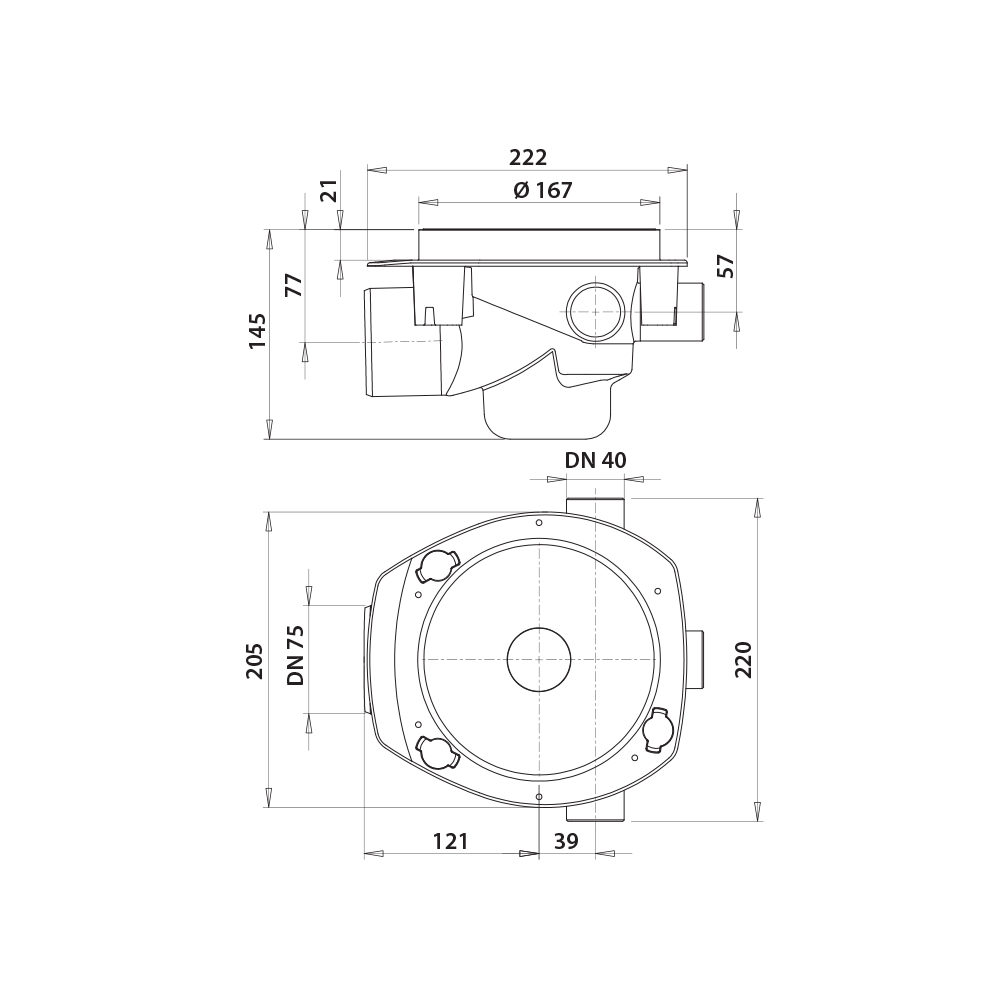

Product dimensions222 x 220 x 145 mm
Product diameter150 mm
Package dimensions280 x 220 x 145 mm
Package weight0.9 kg

Vieser extension ring 25-88mm

Show presentation

Vieser extension ring with side inlets 3xDN32

Show presentation

Vieser low extension ring 12mm

Show presentation

Vieser low model extension ring 18mm

Show presentation

Vieser One casting cover kit

Show presentation

Vieser One side inlet opening tool

Show presentation

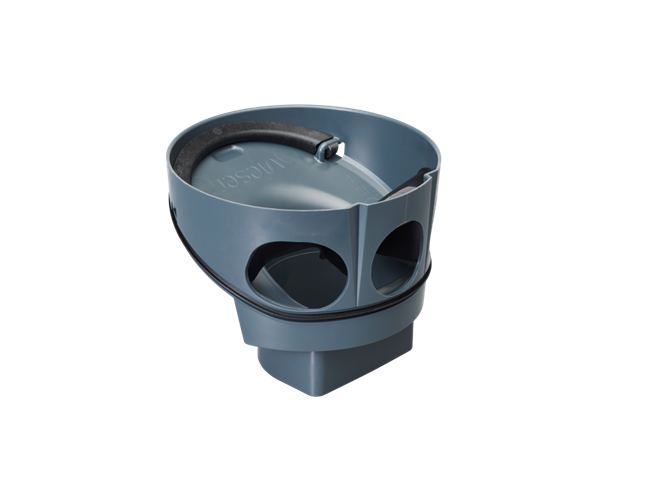

Vieser One special water trap for drain

Show presentation

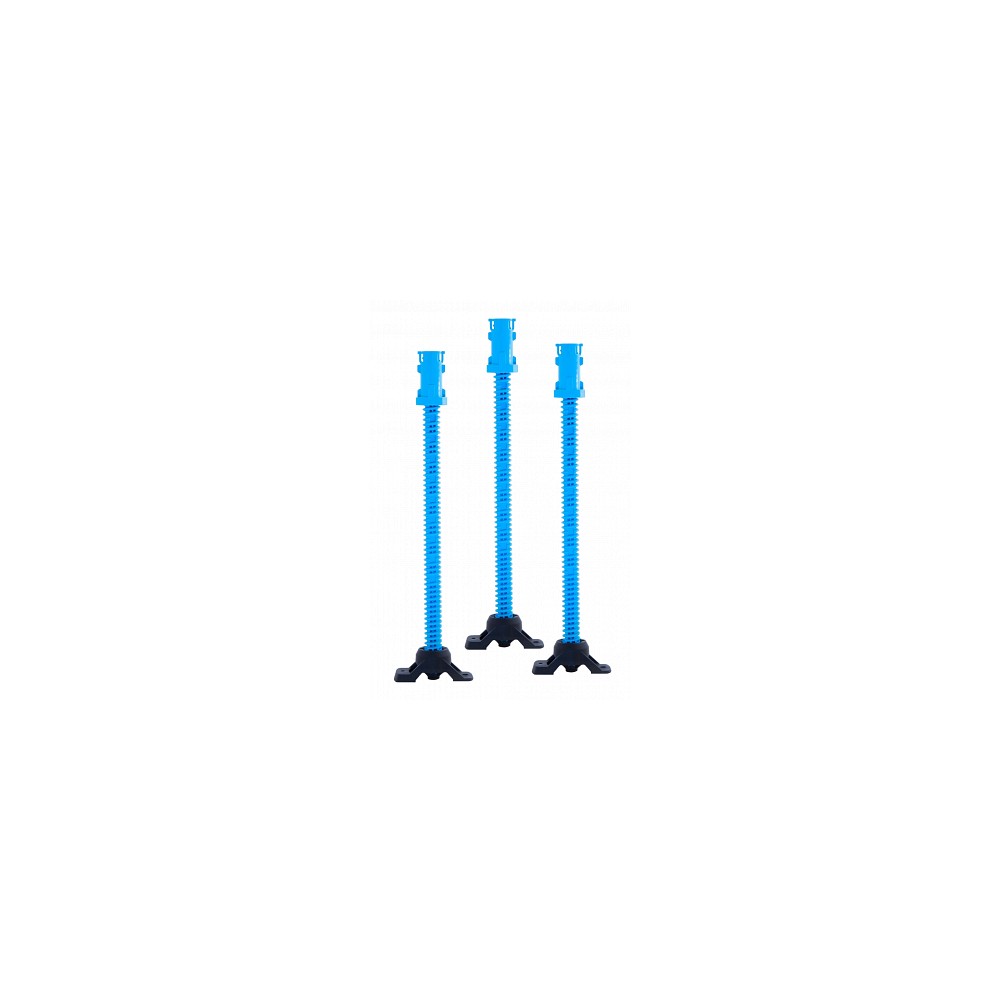

Vieser One support leg package
