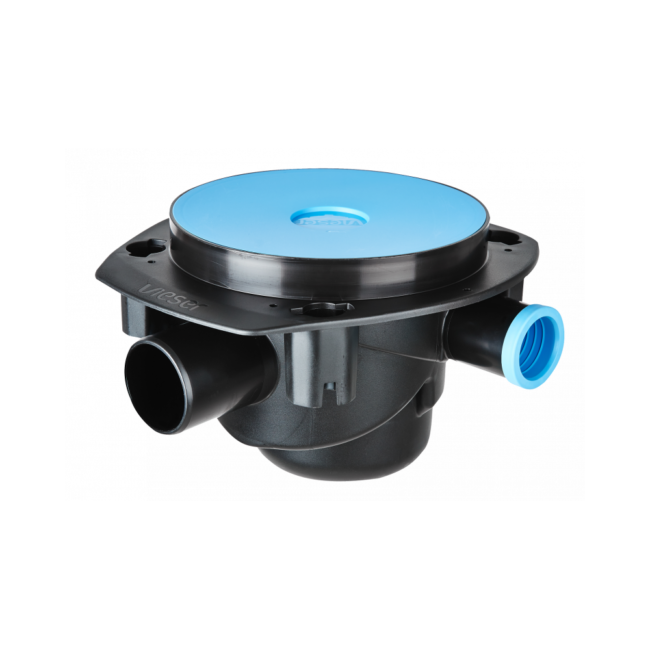

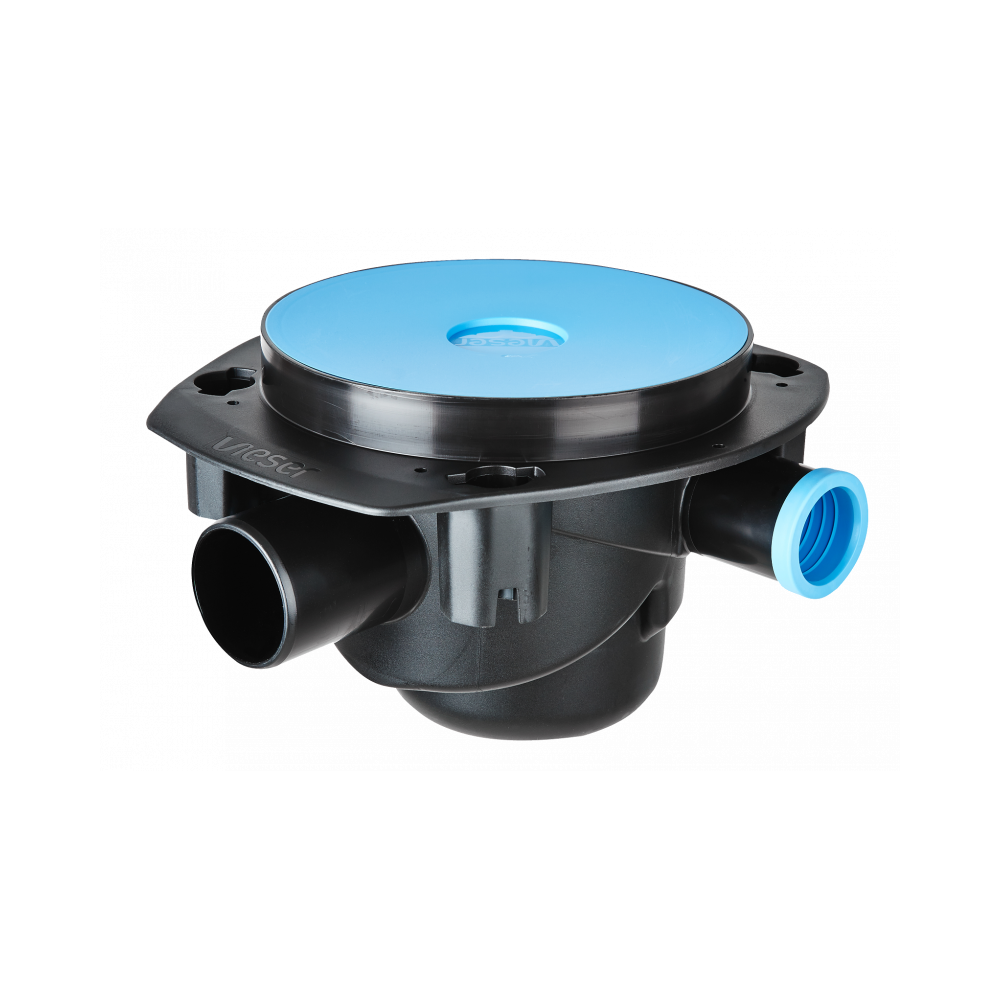

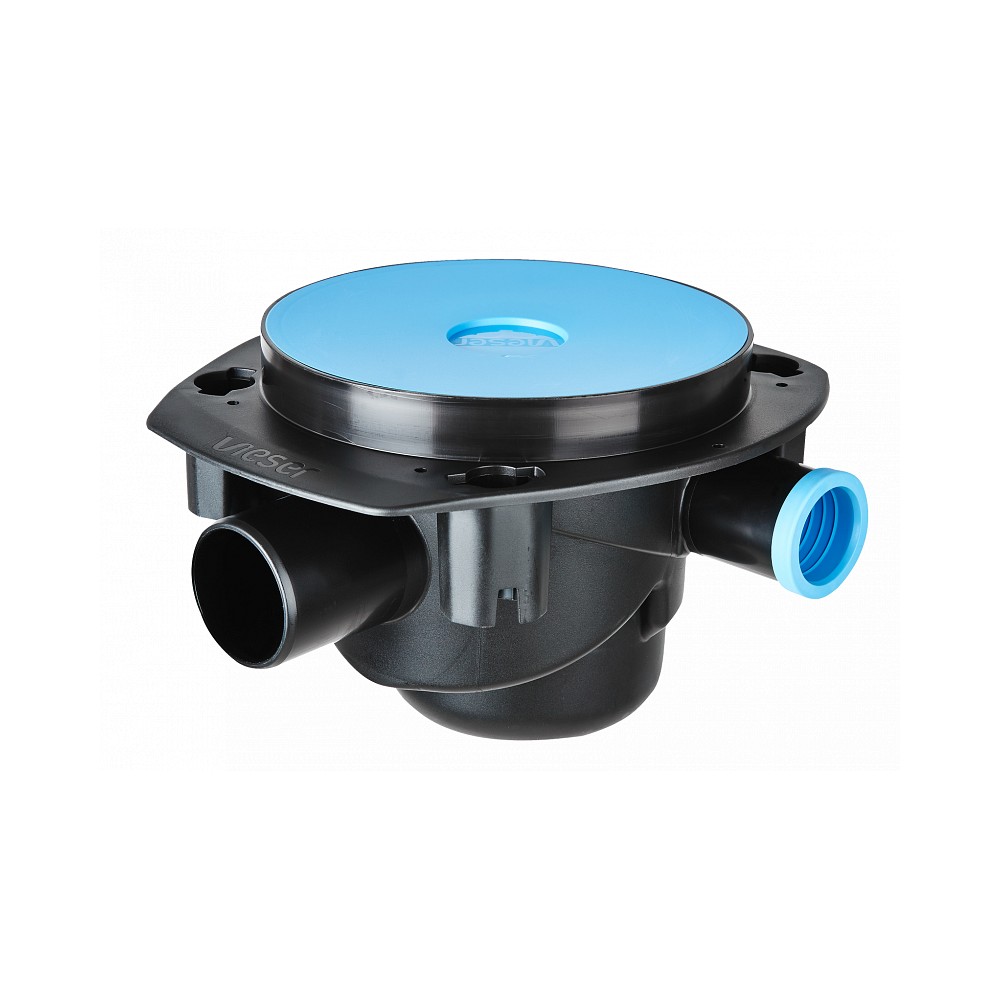

Vieser One floor drain DN50 3×32/40

FLOOR DRAINS

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

You can download water proofing pictures as a PDF & DWG file.

Read more

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser One floor drain is compatible with Vieser design floor drains:

Vieser Line (Vieser Line – Linear drain system)
Vieser Dot (Vieser Dot – Design floor drain system)
Vieser Square (Vieser Square – Design floor drain system)
Vieser Corner (Vieser Corner floor drain system)

Avainlippu
Vieser no52612
EAN6418685526120
HVAC3315958
MaterialPolypropylene PP
Packaging (box/pallet)17/136
Packaging (box/pallet)

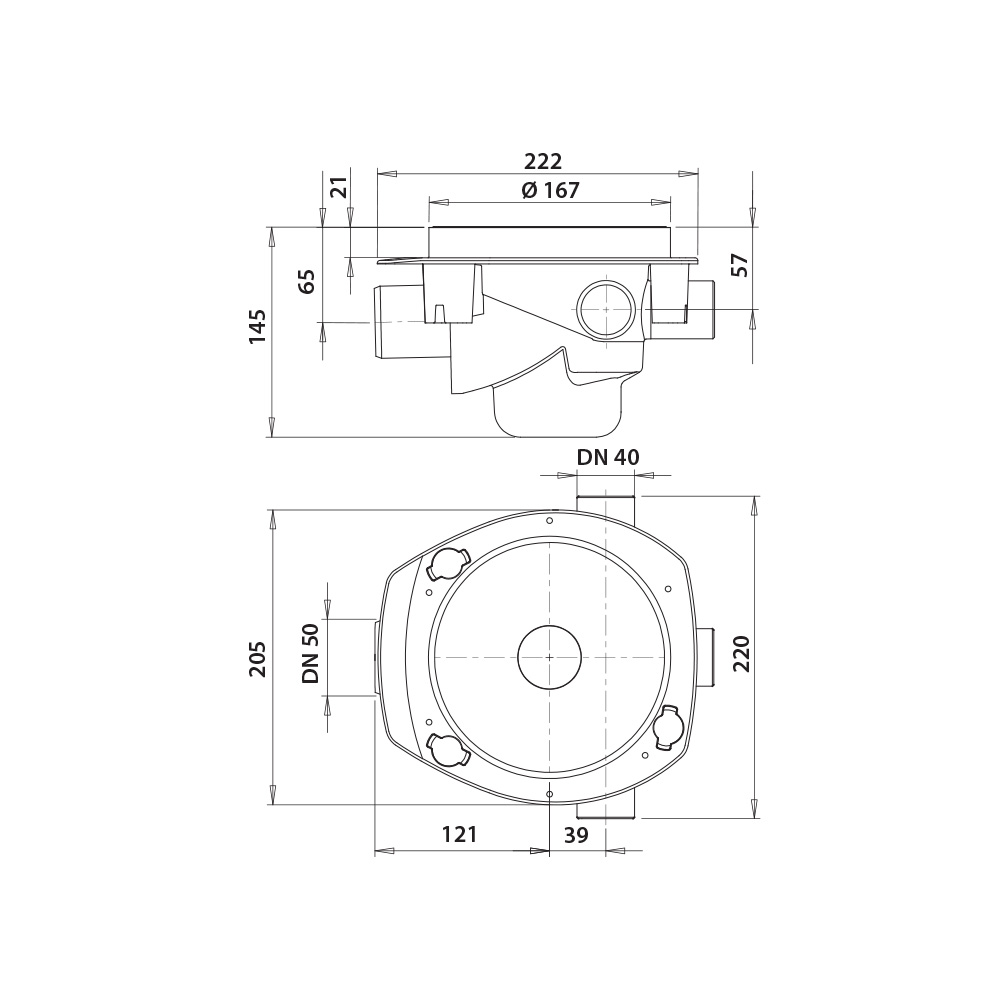

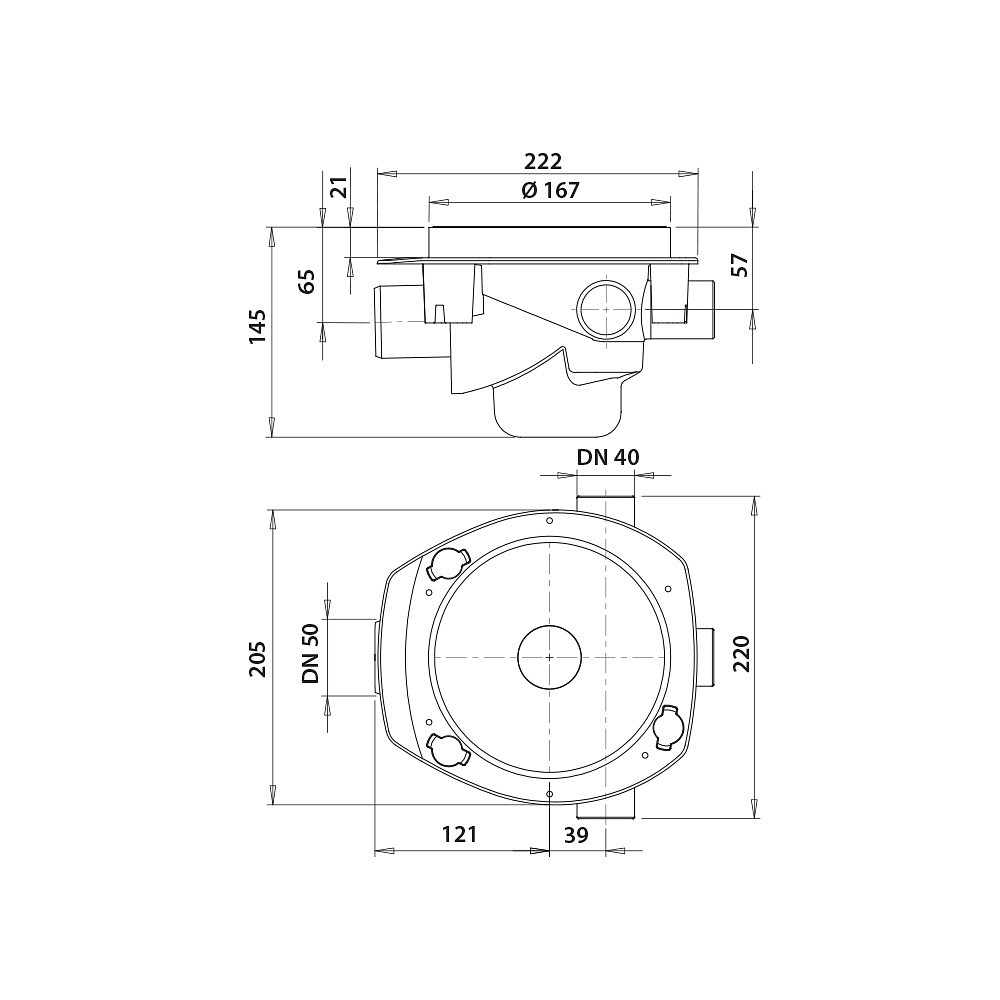

Product dimensions222 x 220 x 145 mm
Product diameter150 mm
Package weight0.5 kg
Product dimensions222 x 220 x 145 mm
Product diameter150 mm
Package weight0.5 kg

Vieser extension ring 25-88mm

Show presentation

Vieser extension ring with side inlets 3xDN32

Show presentation

Vieser low extension ring 12mm

Show presentation

Vieser low model extension ring 18mm

Show presentation

Vieser One casting cover kit

Show presentation

Vieser One side inlet opening tool

Show presentation

Vieser One special water trap for drain

Show presentation

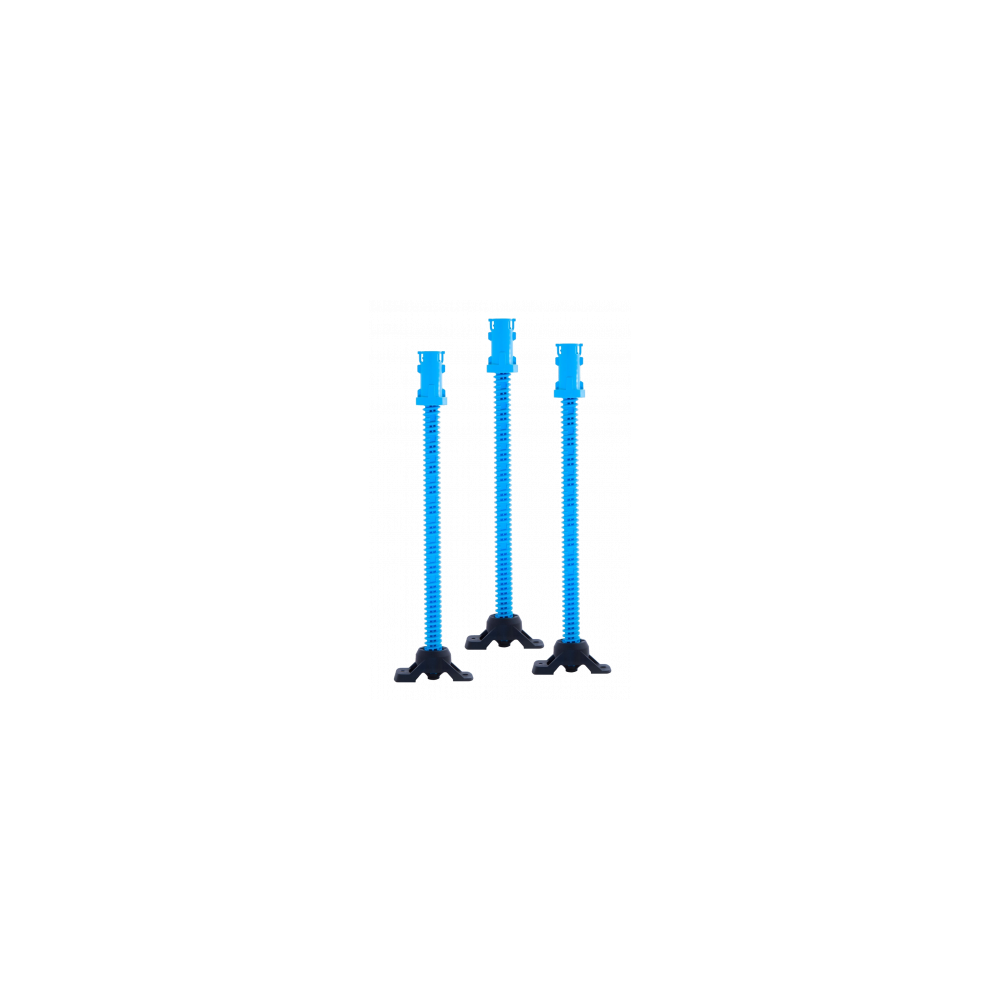

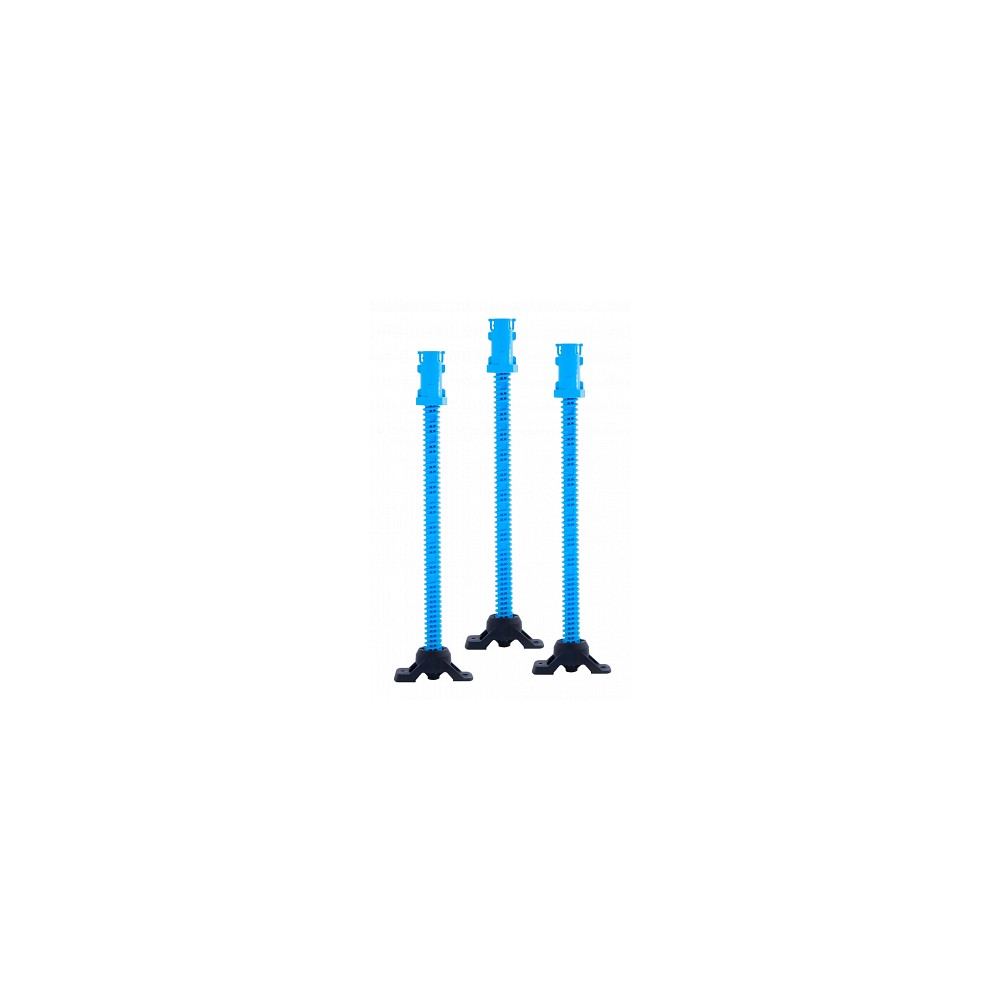

Vieser One support leg package
