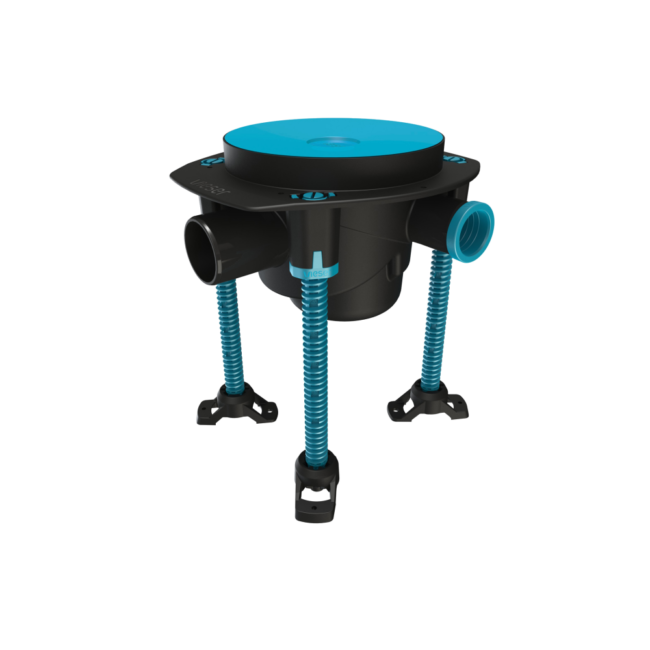

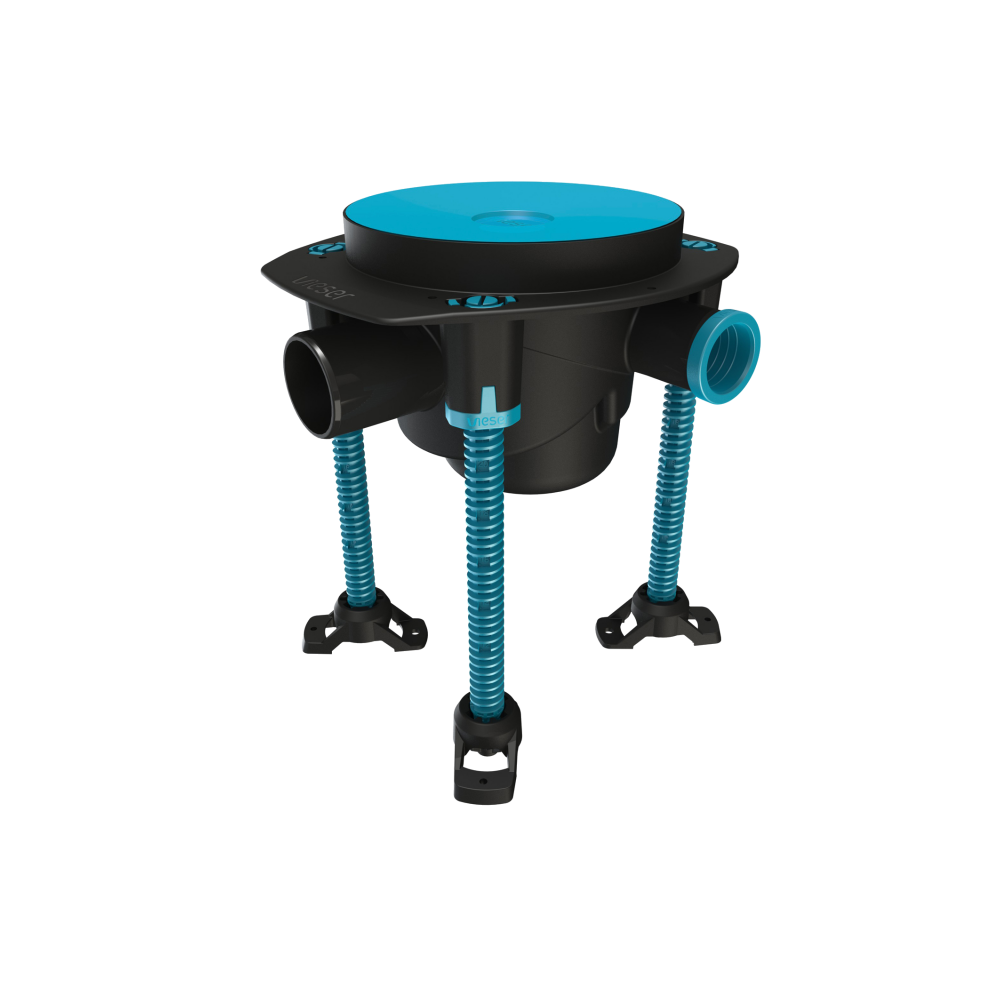

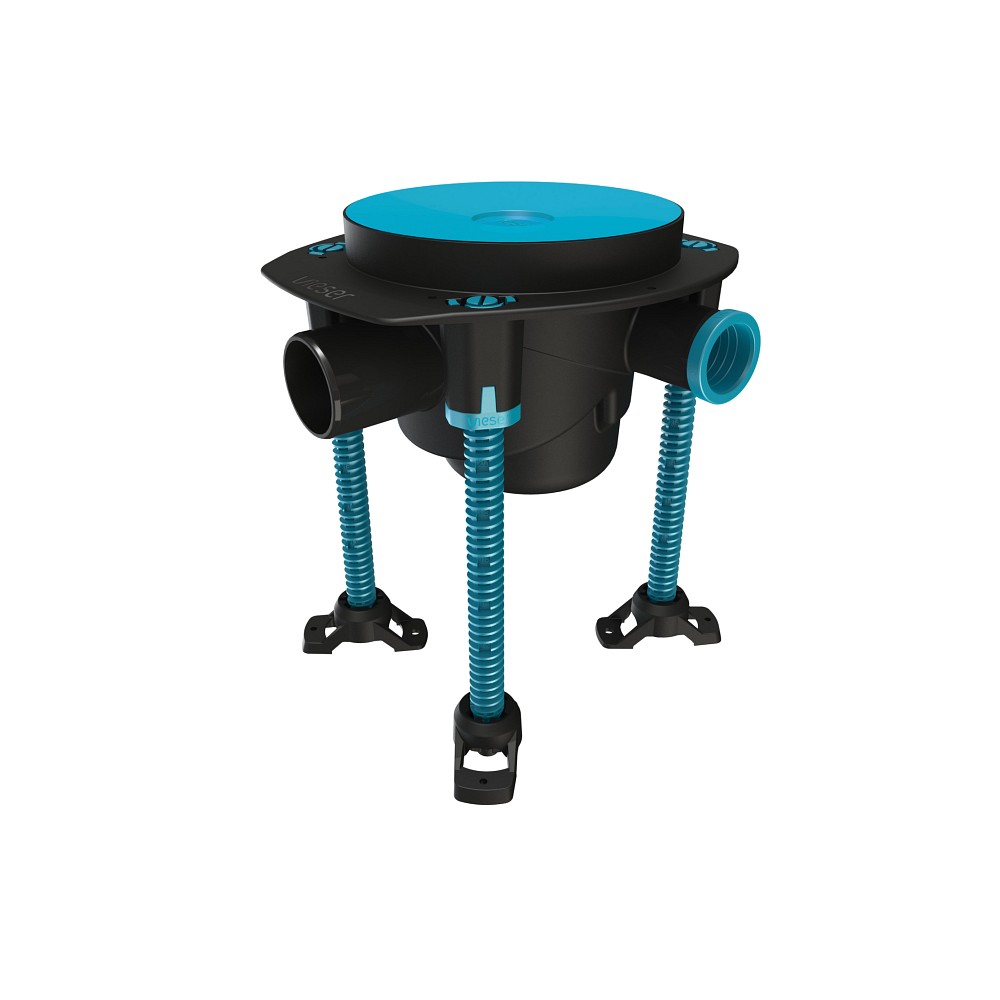

Vieser One floor drain DN50 3×32/40 with support legs

FLOOR DRAINS

The Vieser One horizontal floor drain DN50 has a 50 mm outlet and three 32/40 mm side inlets that can be opened. Compatible with wood and concrete floors.

  • Type approved
  • Removable water trap
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers
  • With the adjustable support legs included in the packaging, the installation height can be set to a maximum of 280 mm.

The package includes a drain, support legs, removable water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.

Please see the structural drawings for different floor structures in our material bank.

Read more

As a spare part, a support leg spare part package is available (HVAC no 3315948). With the support legs, the floor drain can be raised up to 345 mm.

Avainlippu
Vieser no52600
EAN6418685526007
LVI3315930
MaterialPolypropylene (PP)
Packaging (box/pallet)12/96
Discharge1.2 l/s

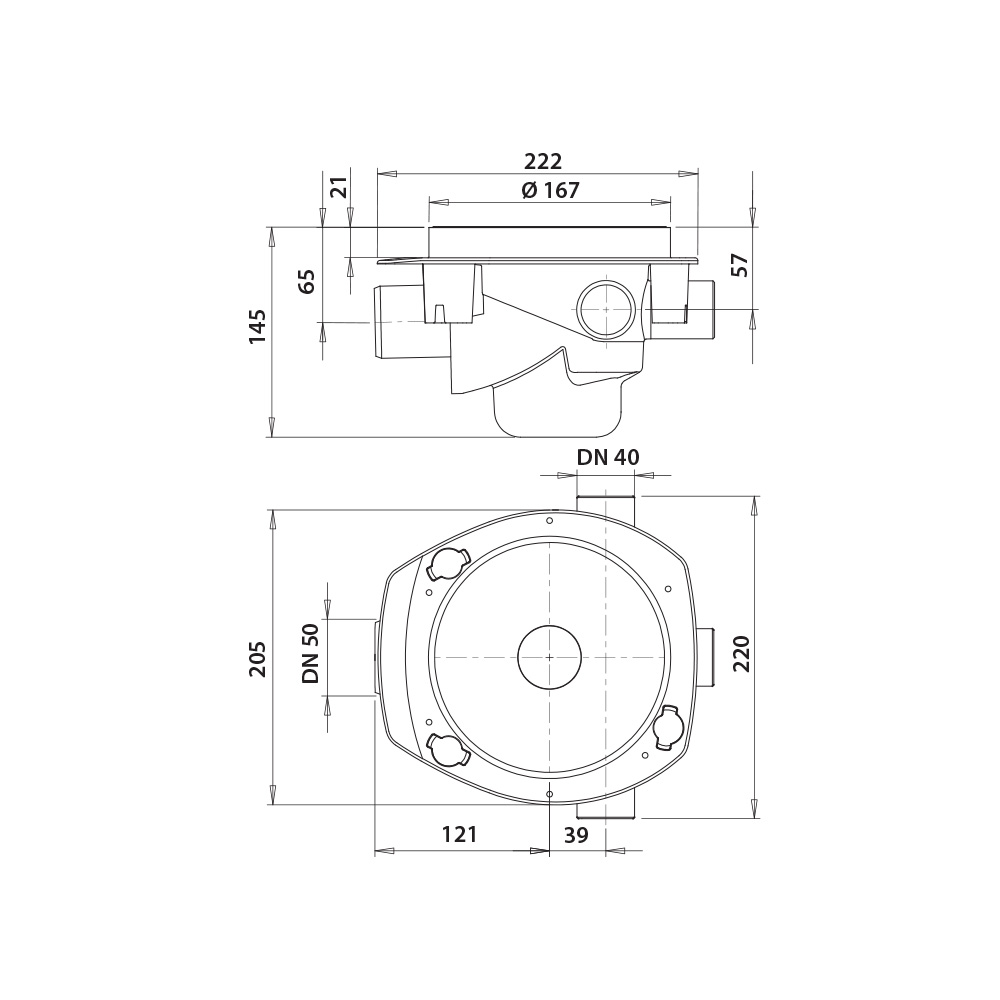

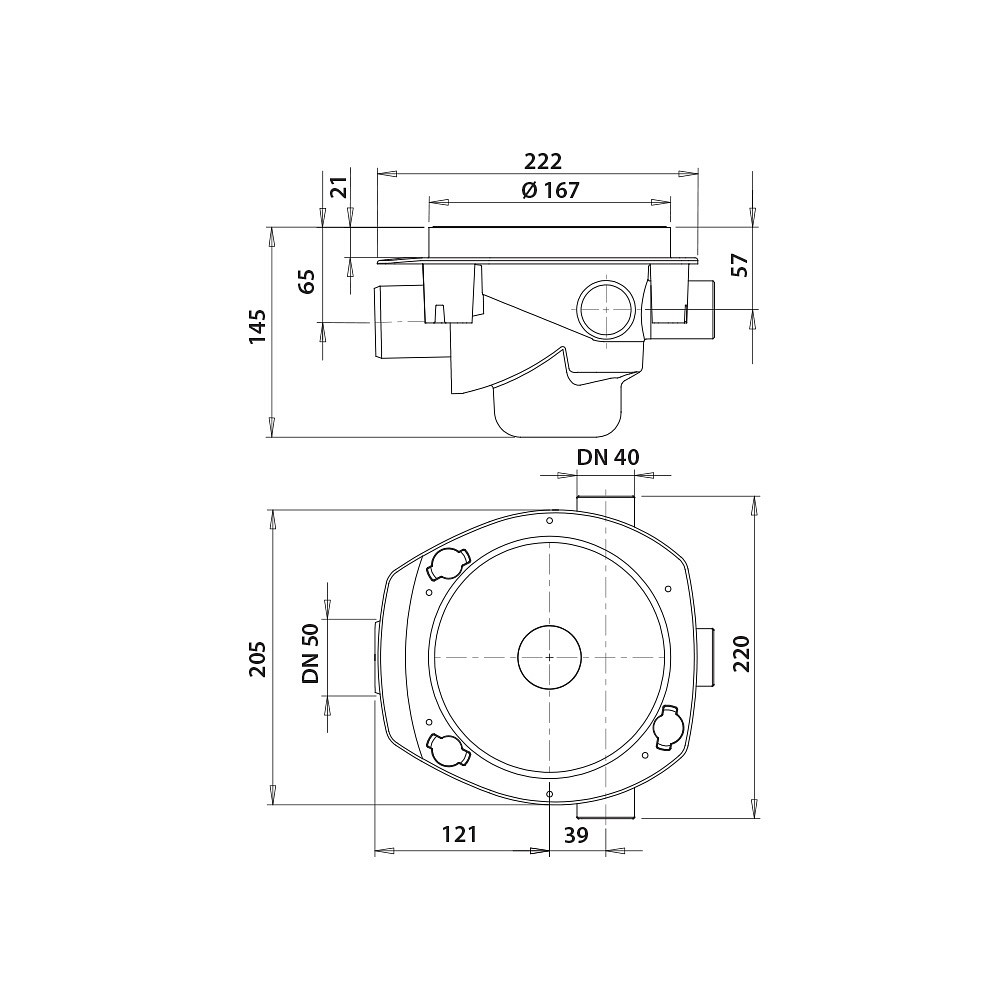

Product dimensions220 x 222 x 145mm
Product weight0.9 kg

Vieser One casting cover kit

Show presentation

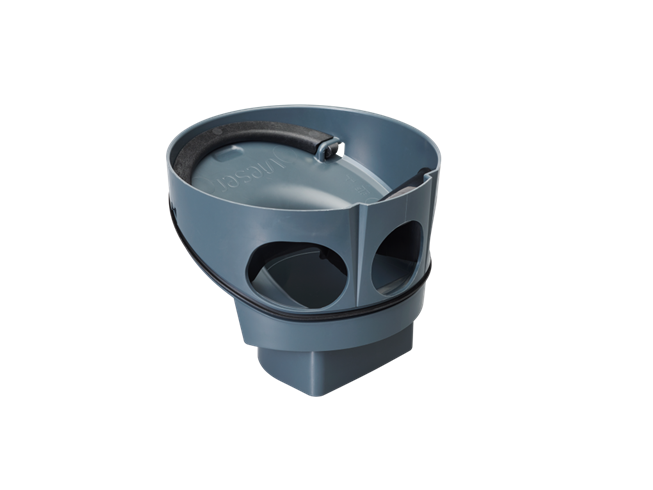

Vieser One water trap for drain

Show presentation

Vieser standard clamping ring and lipsealing

Show presentation

Vieser distance ring

Show presentation

Vieser extension ring 25-88mm

Show presentation

Vieser extension ring with side inlets 3xDN32

Show presentation

Vieser low extension ring 12mm

Show presentation

Vieser low model extension ring 18mm

Show presentation

Vieser membrane flange

Show presentation

Vieser One special water trap for drain

Show presentation

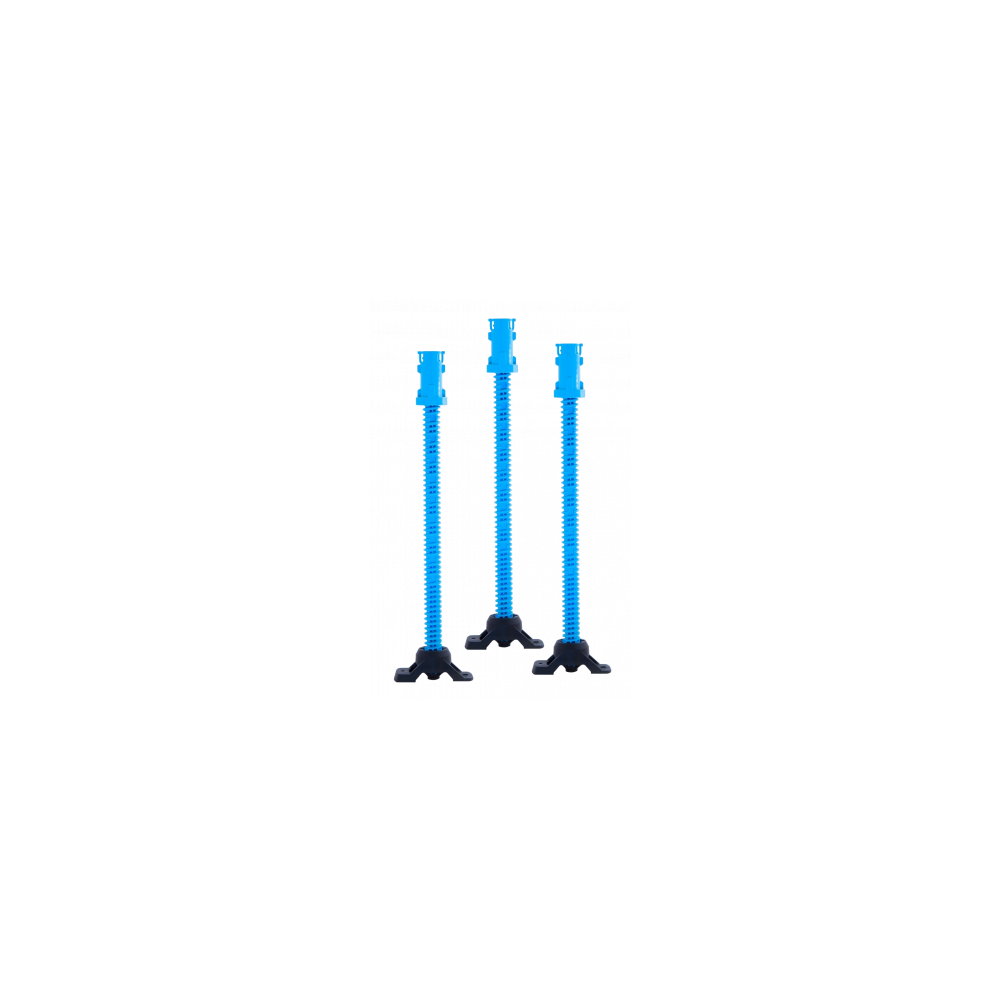

Vieser One support leg package
