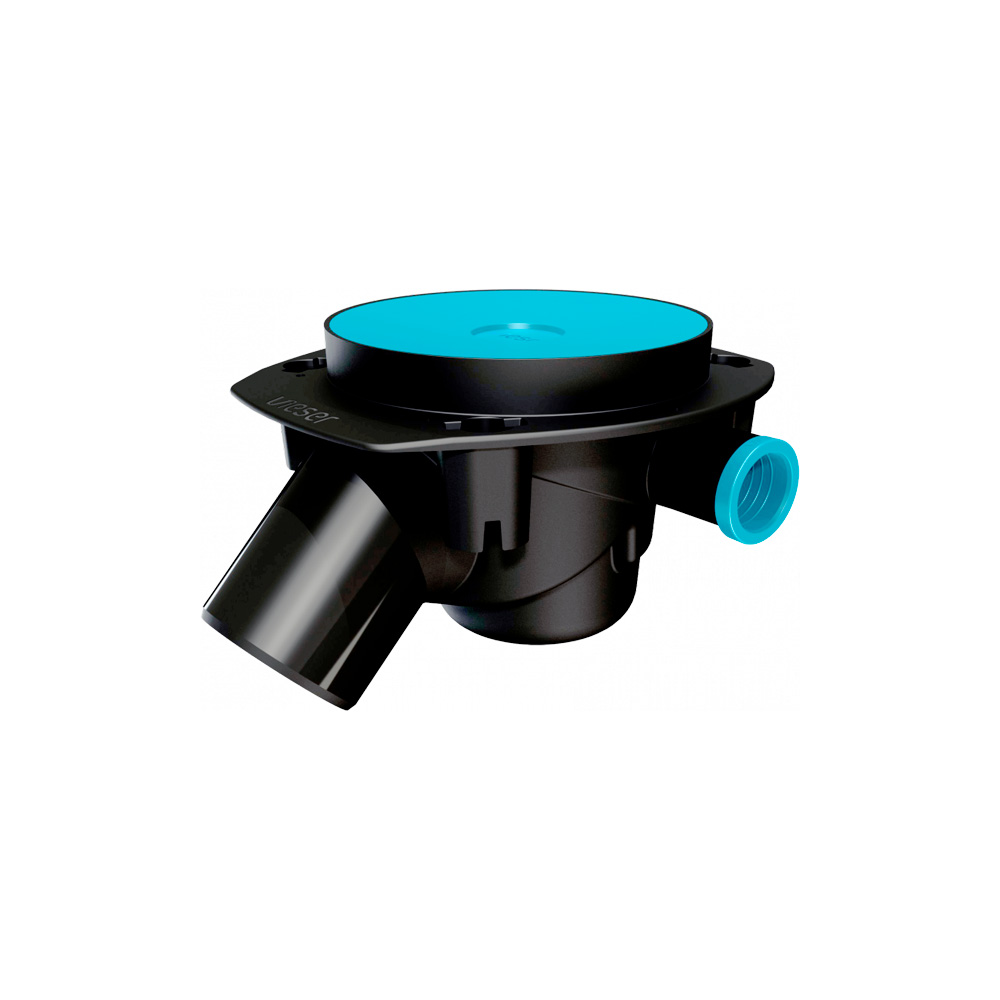

Vieser One floor drain 45° DN75 3×32/40

FLOOR DRAINS

Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

You can download water proofing pictures as a PDF & DWG file.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Read more

Vieser One floor drain is compatible with Vieser design floor drains:

Vieser Line (Vieser Line – Linear drain system)
Vieser Dot (Vieser Dot – Design floor drain system)
Vieser Square (Vieser Square – Design floor drain system)
Vieser Corner (Vieser Corner floor drain system)
Related products

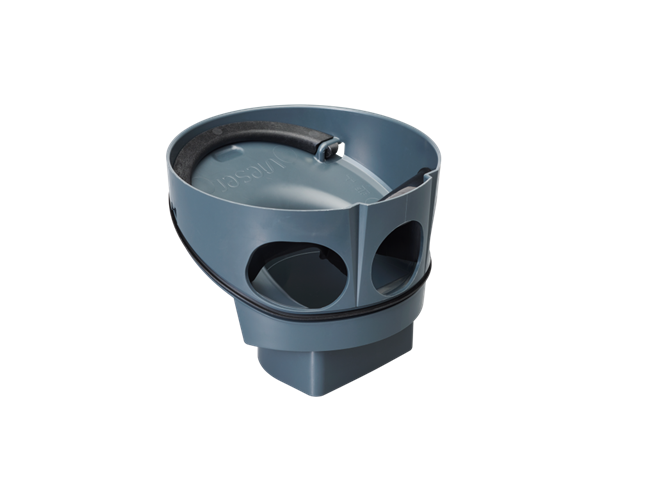

Vieser One water trap for drain
Vieser One special water trap for drain

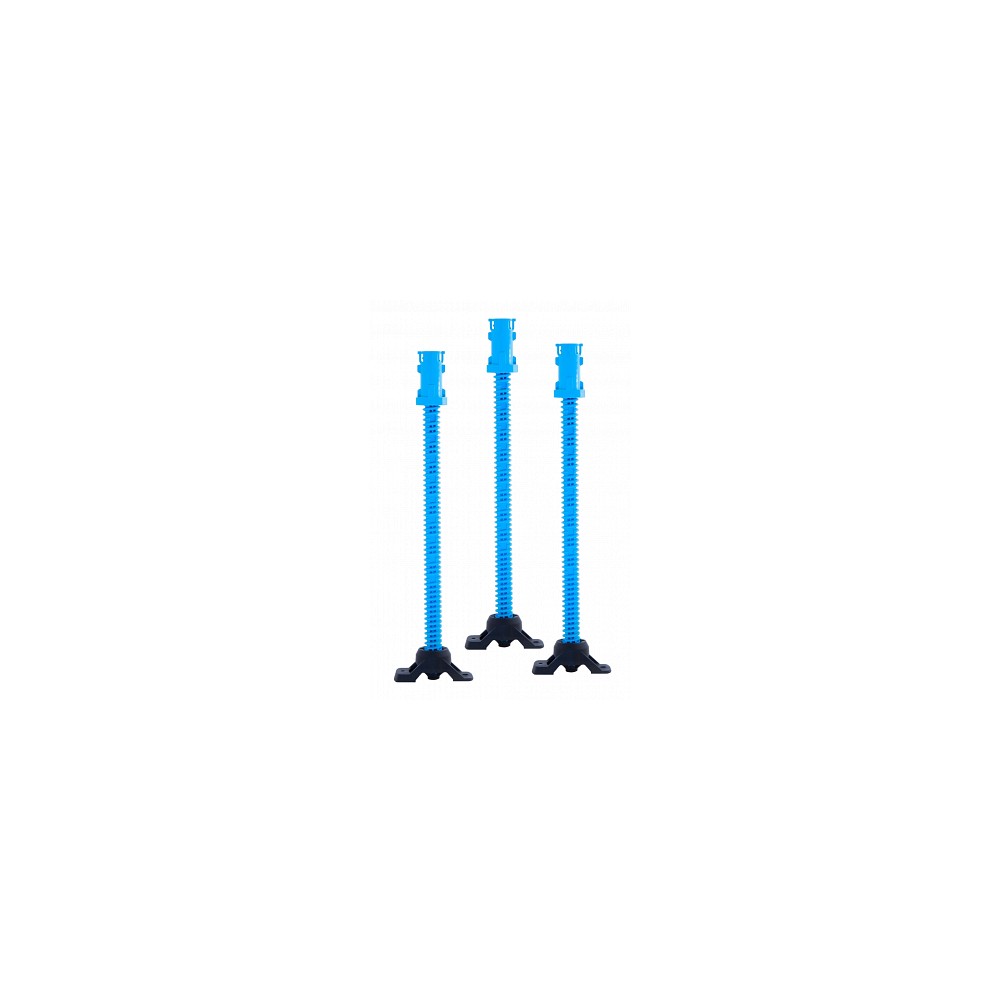

Vieser One support leg package (incl. 3 support legs)
Vieser extension ring 25-88mm
Vieser extension ring with side inlets 3x32mm
Vieser low model extension ring 12 mm
Vieser low model extension ring 18 mm
Vieser standard clamping ring and sealing for 1-2 mm waterproofings
Vieser special clamping ring and sealing for 2-3 mm waterproofings
Vieser One protective lid kit

Avainlippu
Vieser no6004308
EAN6430066742172
HVAC3317303
MaterialPolypropylene PP
Packaging (box/pallet)18/144, 18/144
Virtaama1,4, 1,4 l/s

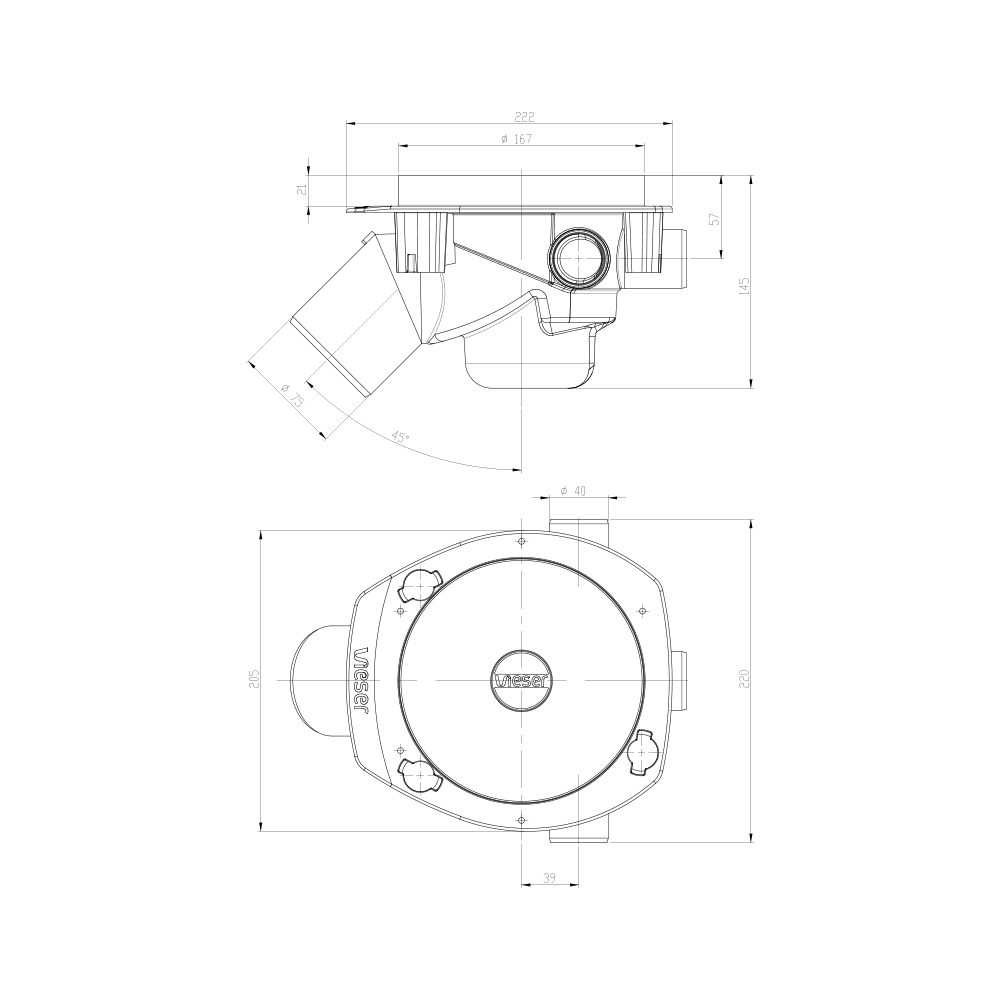

Product dimensions220 x 220 x 145 mm
Product diameter150 mm
Package weight0.5 kg
Product dimensions220 x 220 x 145 mm
Product diameter150 mm
Package weight0.5 kg
