Vieser One floor drain DN50 1x32 extra low

Vieser One floor drain DN50 1x32 extra low

,

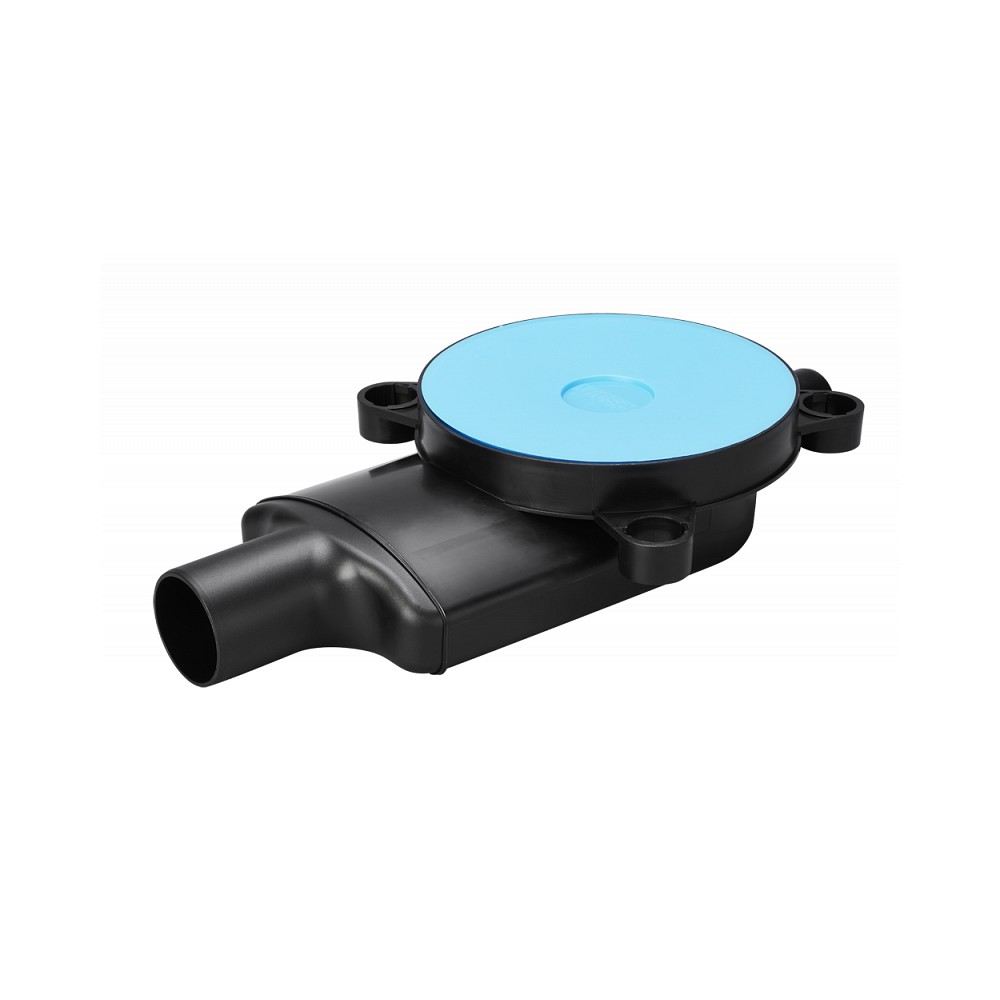

The Vieser One horizontal floor drain DN50 extra low has a height of just 69 mm. The drain has a 50 mm outlet and one 32 mm openable side inlet. Suitable for use in showers and bathtubs.
  • Type approved
  • Removable membrane water trap.
  • High flow rate
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

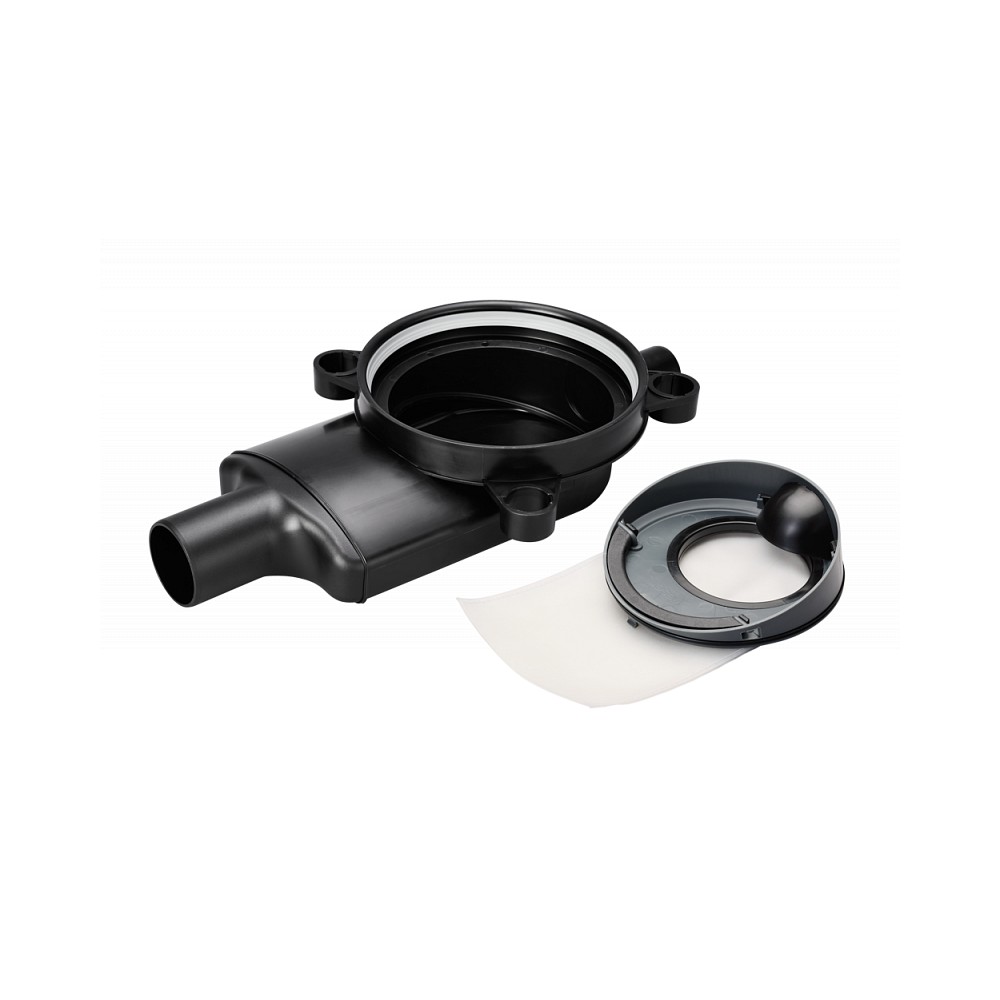

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring. Please see the structural drawings for different floor structures in our material bank.
Vieser no6004512
EAN6430066742325
HVAC3317307
MaterialPolypropylene (PP)
Packaging (box/pallet)10/120
Discharge1.2 l/s

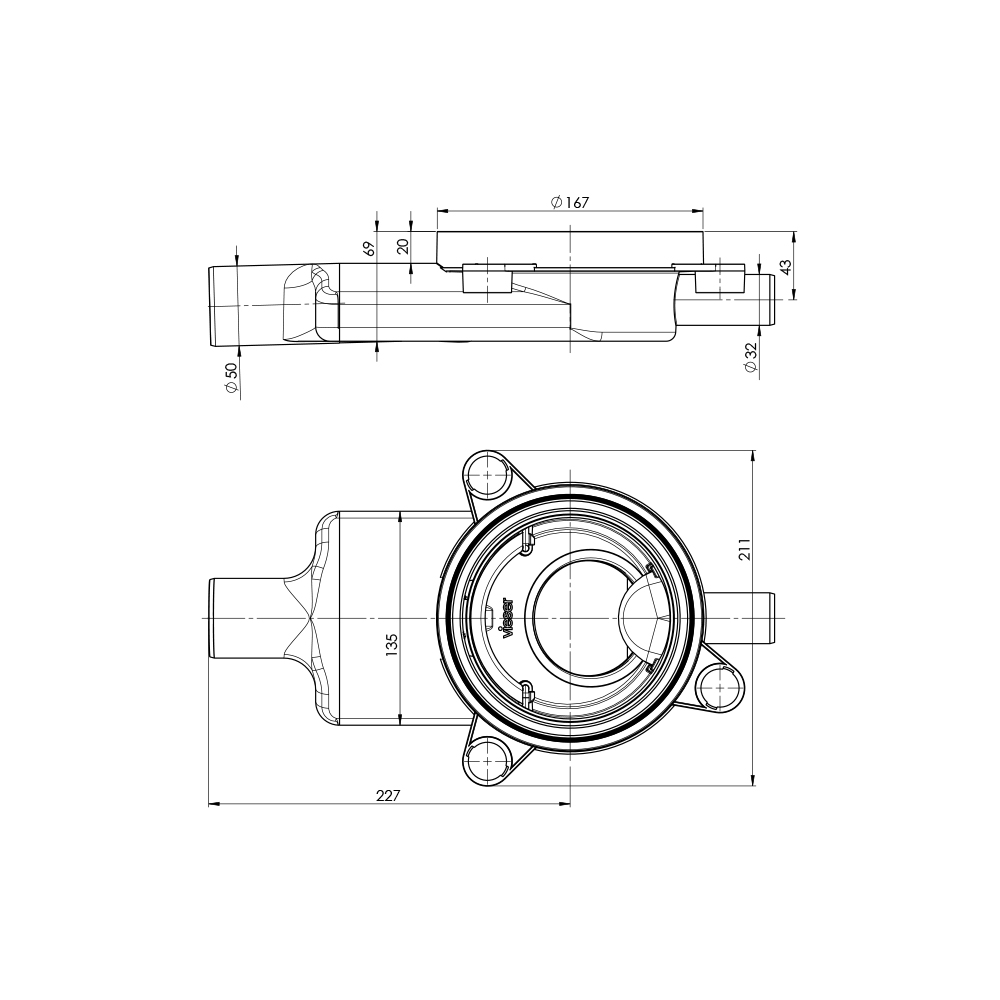

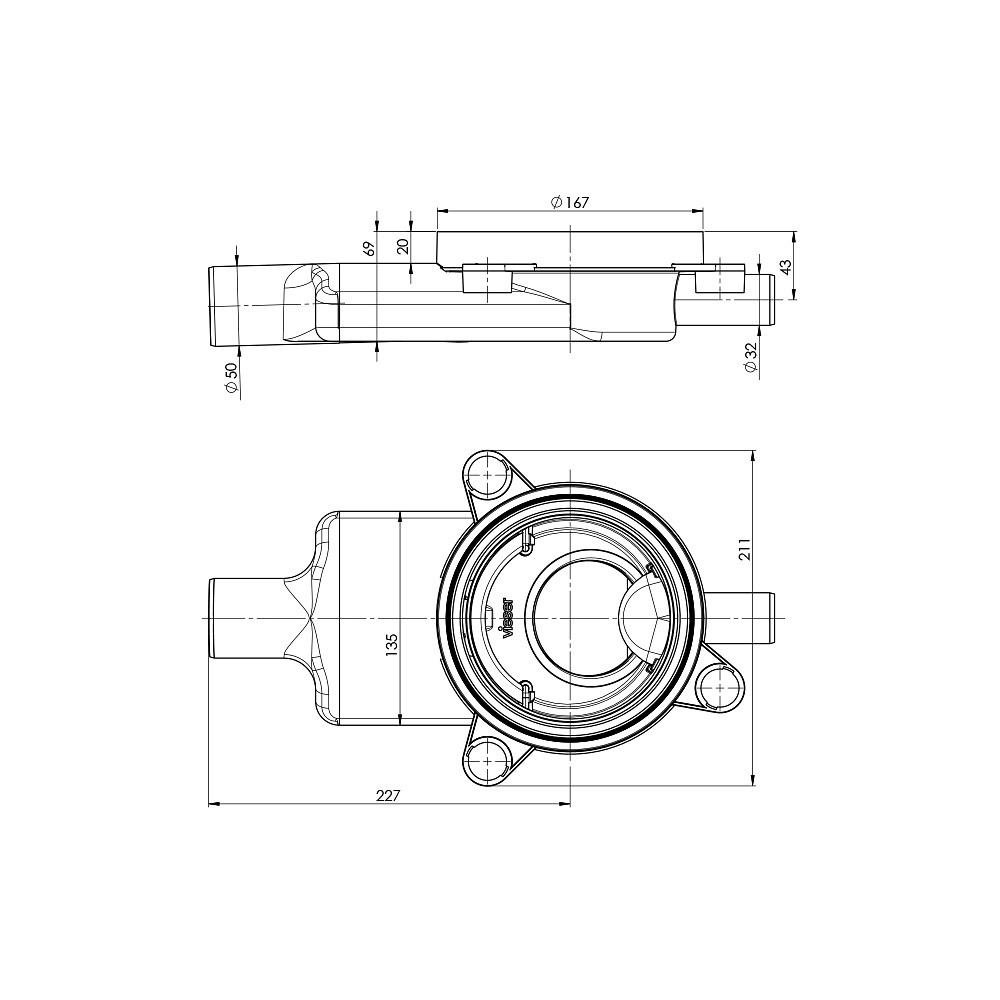

Product dimensions211 x 355 x 69mm
Product weight0.5 kg
Floor materialTile, Plastic mat, Mass

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s. The low structure is a significant benefit in both renovations and new construction. The water trap is based on innovative patented membrane technology, which has a long life and functions reliably. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

Spare parts

52703
Vieser One casting cover kit

6005861

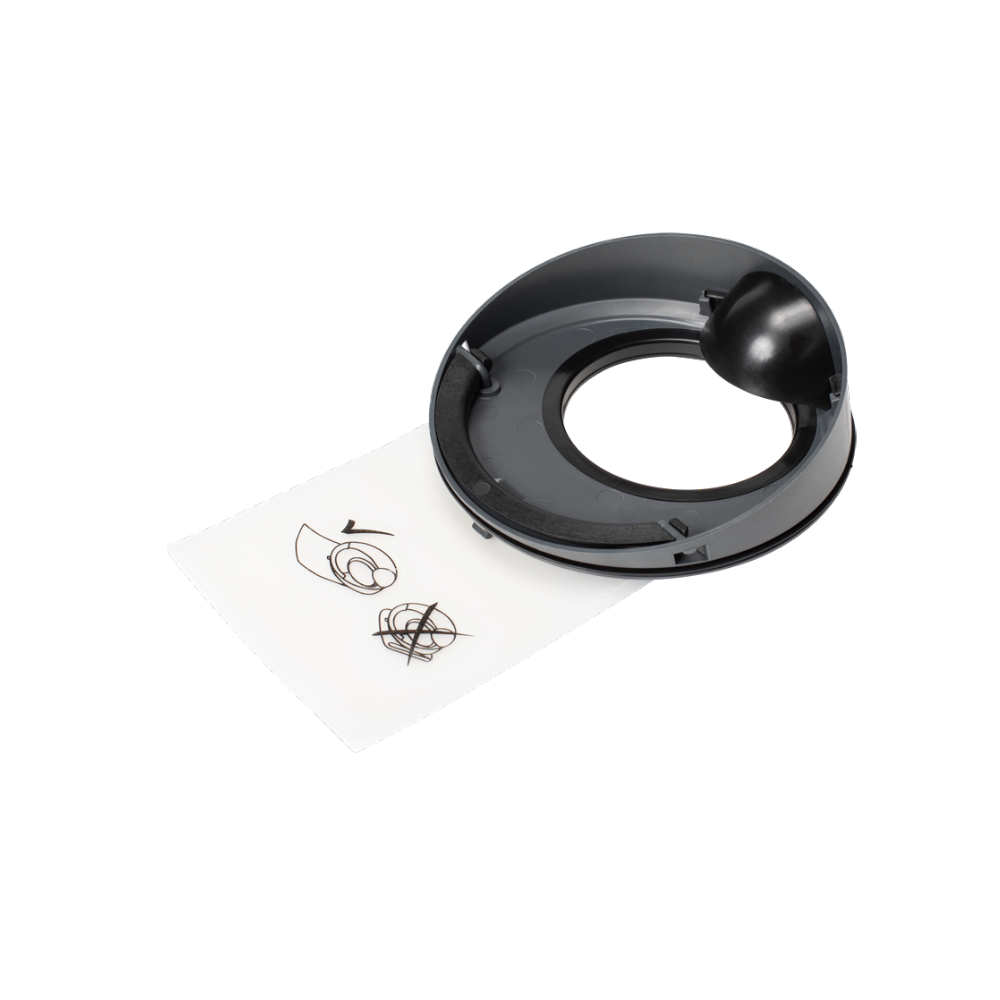

Vieser One extra low floor drain membrane water trap

51901
Vieser standard clamping ring and lipsealing

Vieser One floor drain DN50 1x32 extra low - Vieser Suomi

Vieser One floor drain DN50 1×32 extra low

FLOOR DRAINS

The Vieser One horizontal floor drain DN50 extra low has a height of just 69 mm. The drain has a 50 mm outlet and one 32 mm openable side inlet. Suitable for use in showers and bathtubs.

  • Type approved
  • Removable membrane water trap.
  • High flow rate
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.

Please see the structural drawings for different floor structures in our material bank.

Read more

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s. The low structure is a significant benefit in both renovations and new construction. The water trap is based on innovative patented membrane technology, which has a long life and functions reliably. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

Avainlippu
Vieser no6004512
EAN6430066742325
LVI3317307
MaterialPolypropylene (PP)
Packaging (box/pallet)10/120
Discharge1.2 l/s
Product dimensions211 x 355 x 69mm
Product weight0.5 kg
Floor materialTile, Plastic mat, Mass

Vieser One casting cover kit

Show presentation

Vieser One extra low floor drain membrane water trap

Show presentation

Vieser standard clamping ring and lipsealing

Show presentation

Vieser distance ring

Show presentation

Vieser extension ring 25-88mm

Show presentation

Vieser extension ring with side inlets 3xDN32

Show presentation

Vieser low extension ring 12mm

Show presentation

Vieser low model extension ring 18mm

Show presentation

Vieser membrane flange

Show presentation

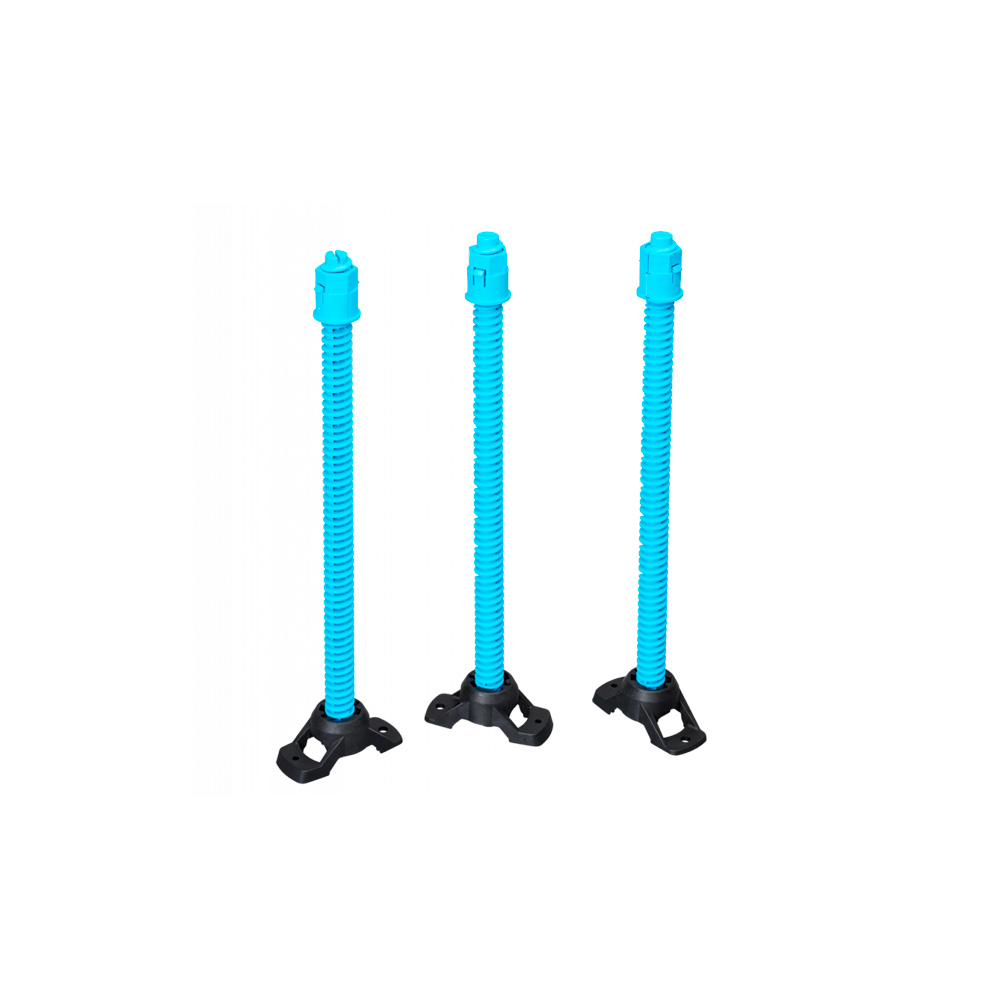

Vieser One extra low floor drain support legs
