Vieser One floor drain DN50 1×32 extra low with support legs

FLOOR DRAINS

The Vieser One horizontal floor drain DN50 extra low has a height of just 69 mm. The drain has a 50 mm outlet and one 32 mm openable side inlet. Suitable for use in showers and bathtubs.

  • Type approved

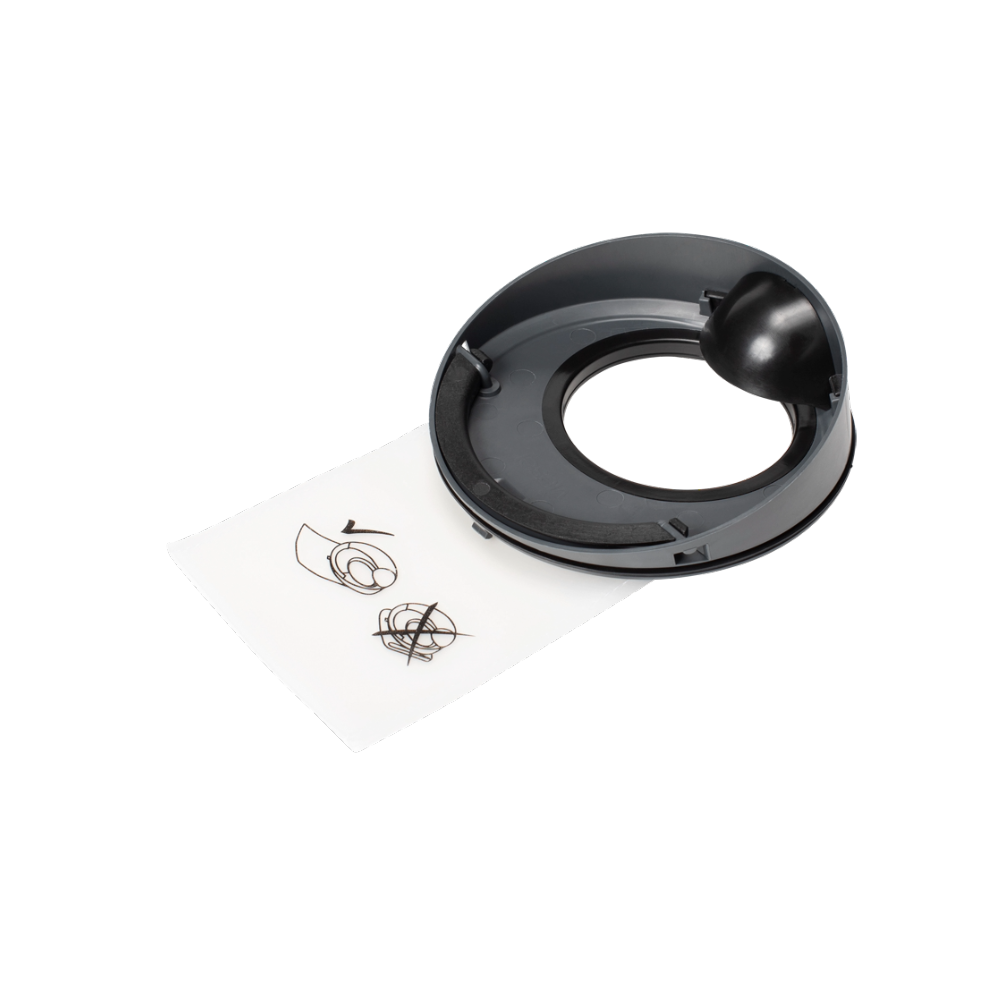

  • Removable membrane water trap.
  • High flow rate 1.2 l/s
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

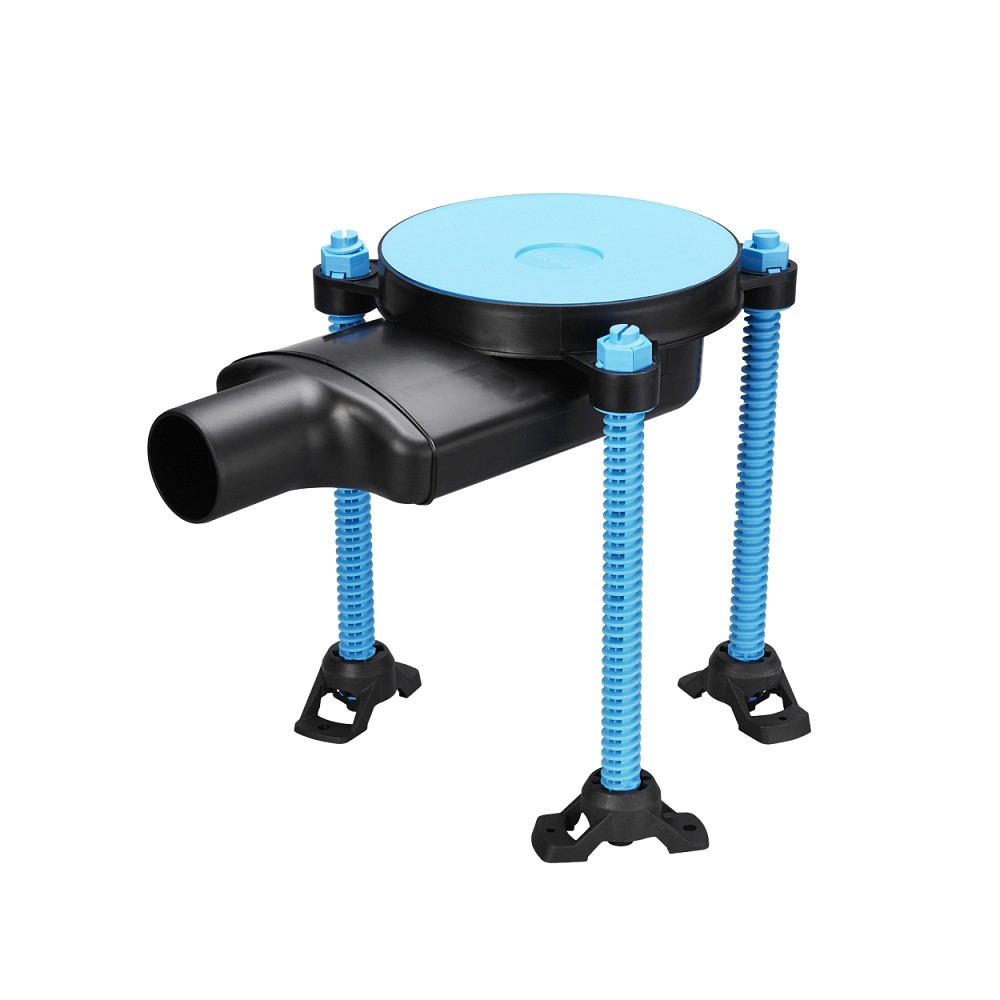

  • With the adjustable support legs included in the packaging, the installation height can be set to a maximum of 280 mm.

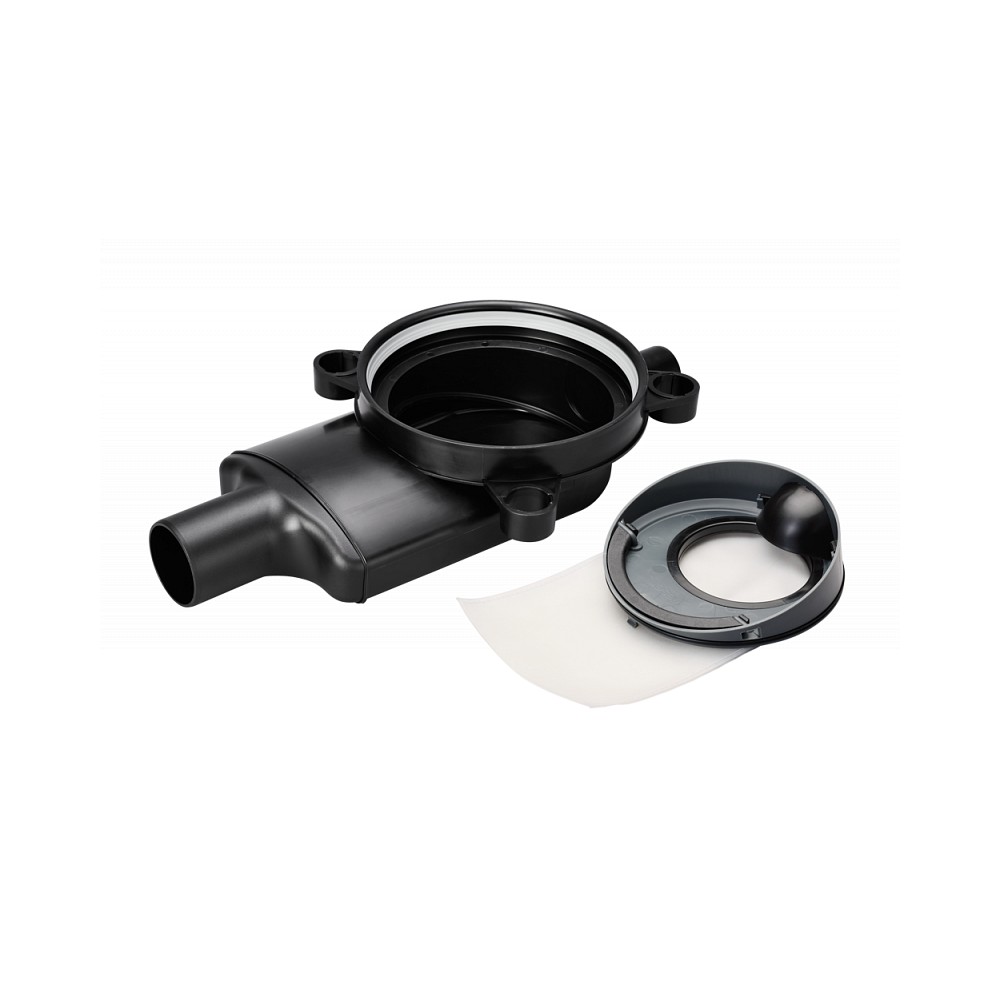

The package includes a drain, water trap, support legs, casting shield, clamping ring, seal and a tool for installing the clamping ring.

Please see the structural drawings for different floor structures in our material bank.

Read more

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s. The low structure is a significant benefit in both renovations and new construction. The water trap is based on innovative patented membrane technology, which has a long life and functions reliably. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

Avainlippu
Vieser no6004513
EAN6430066742332
LVI3317308
MaterialPolypropylene (PP)
Packaging (box/pallet)10/80
Discharge1.2 l/s

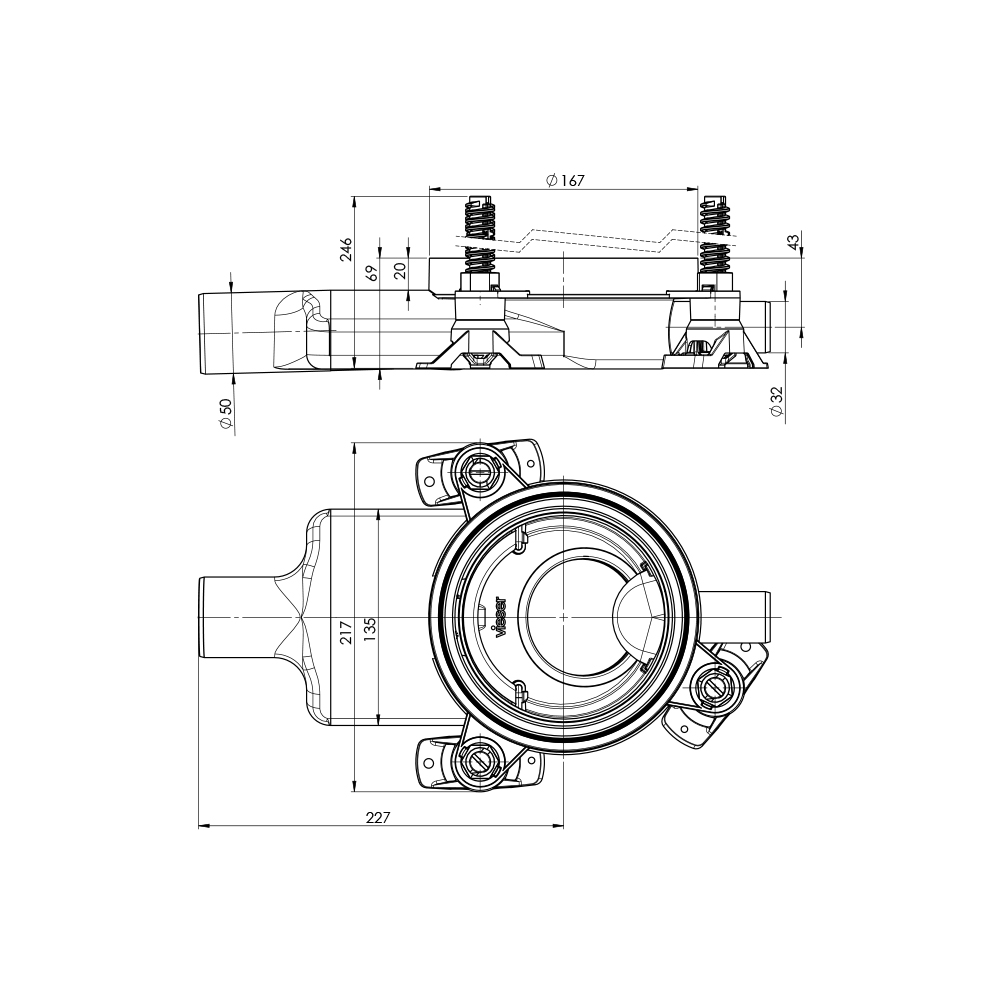

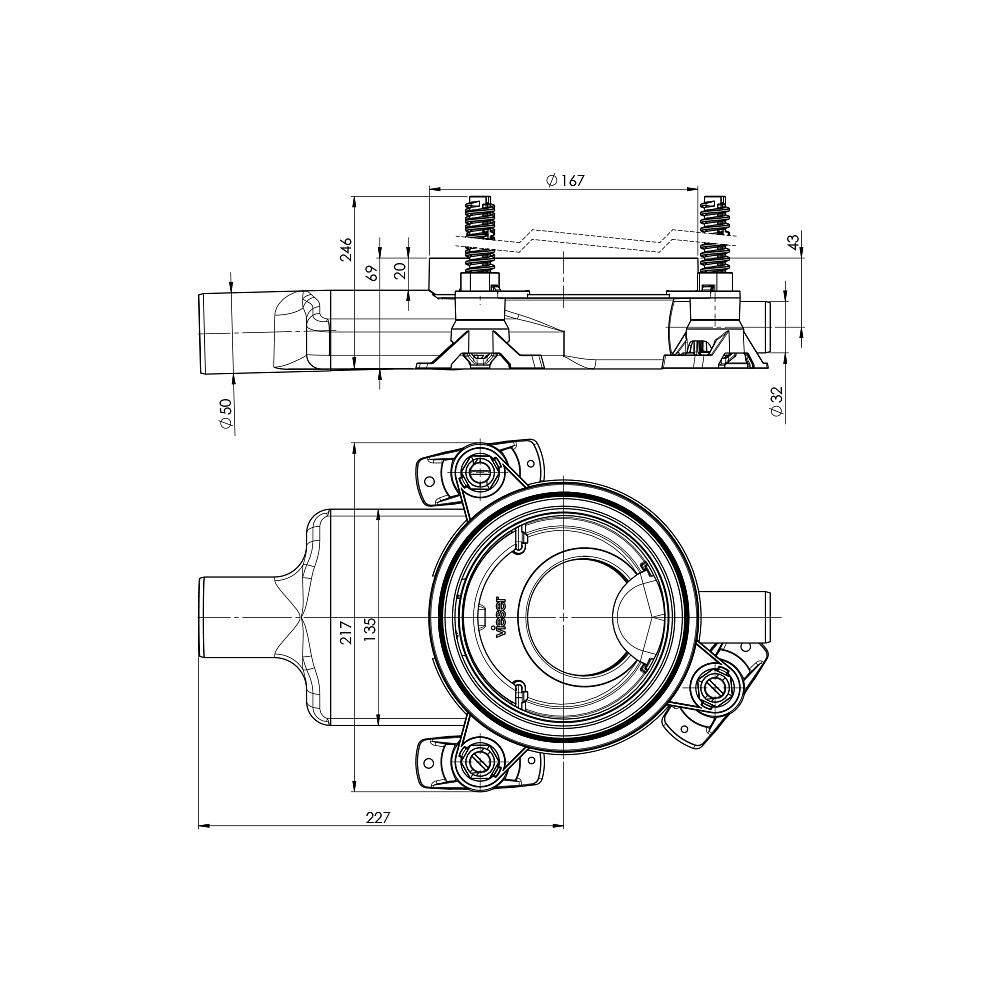

Product dimensions211 x 355 x 69mm
Product weight0.8 kg
Floor materialTile, Plastic mat, Mass
