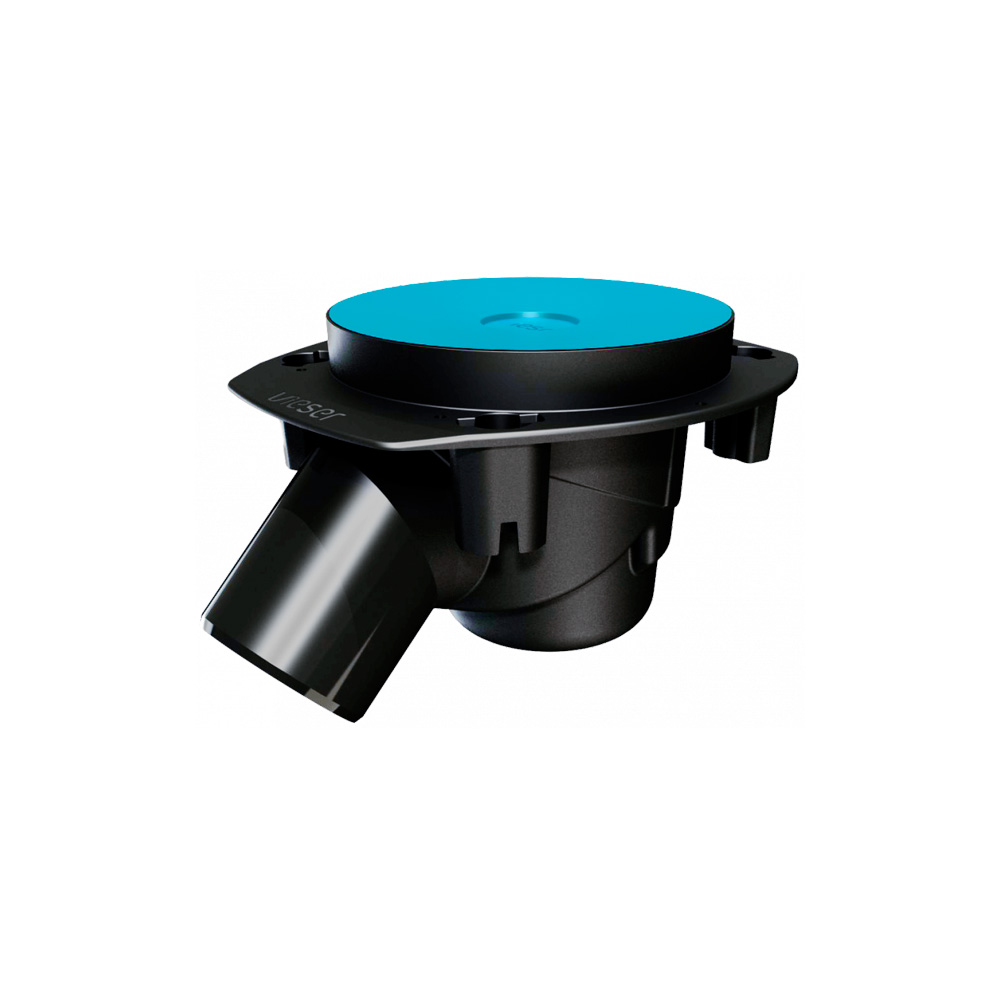

Vieser One floor drain 45° DN75

FLOOR DRAINS

The Vieser One corner floor drain 45° DN75 has a 75 mm outlet. Compatible with concrete and wood floors.

  • Type approved
  • Removable water trap
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.

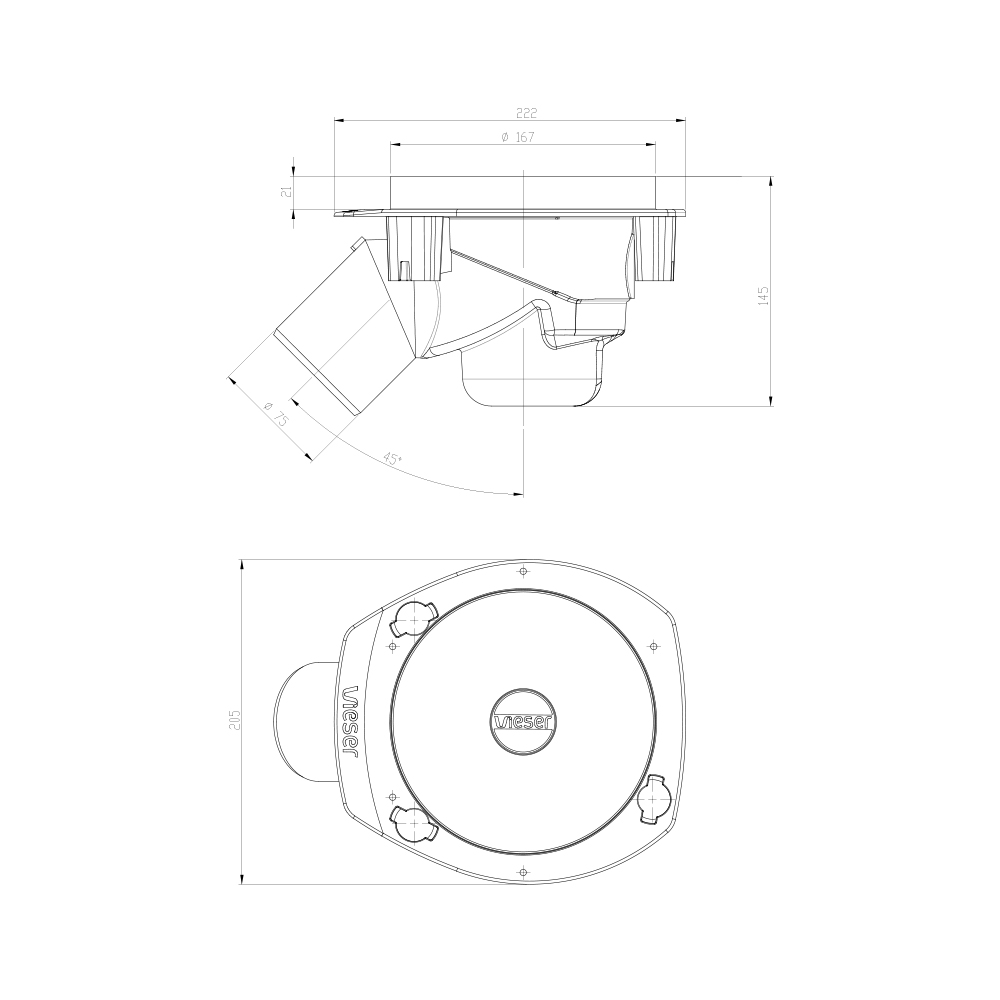

Please see the structural drawings for different floor structures in our material bank.

Avainlippu
Vieser no6004309
EAN6430066742196
LVI3317304
MaterialPolypropylene (PP)
Packaging (box/pallet)18/144
Discharge1.4 l/s
Product dimensions205 x 205 x 145mm
Product weight0.5 kg
Floor materialTile, Plastic mat, Mass

Vieser One casting cover kit

Show presentation

Vieser One water trap for drain

Show presentation

Vieser standard clamping ring and lipsealing

Show presentation

Vieser distance ring

Show presentation

Vieser extension ring 25-88mm

Show presentation

Vieser extension ring with side inlets 3xDN32

Show presentation

Vieser low extension ring 12mm

Show presentation

Vieser low model extension ring 18mm

Show presentation

Vieser membrane flange

Show presentation

Vieser One special water trap

Show presentation

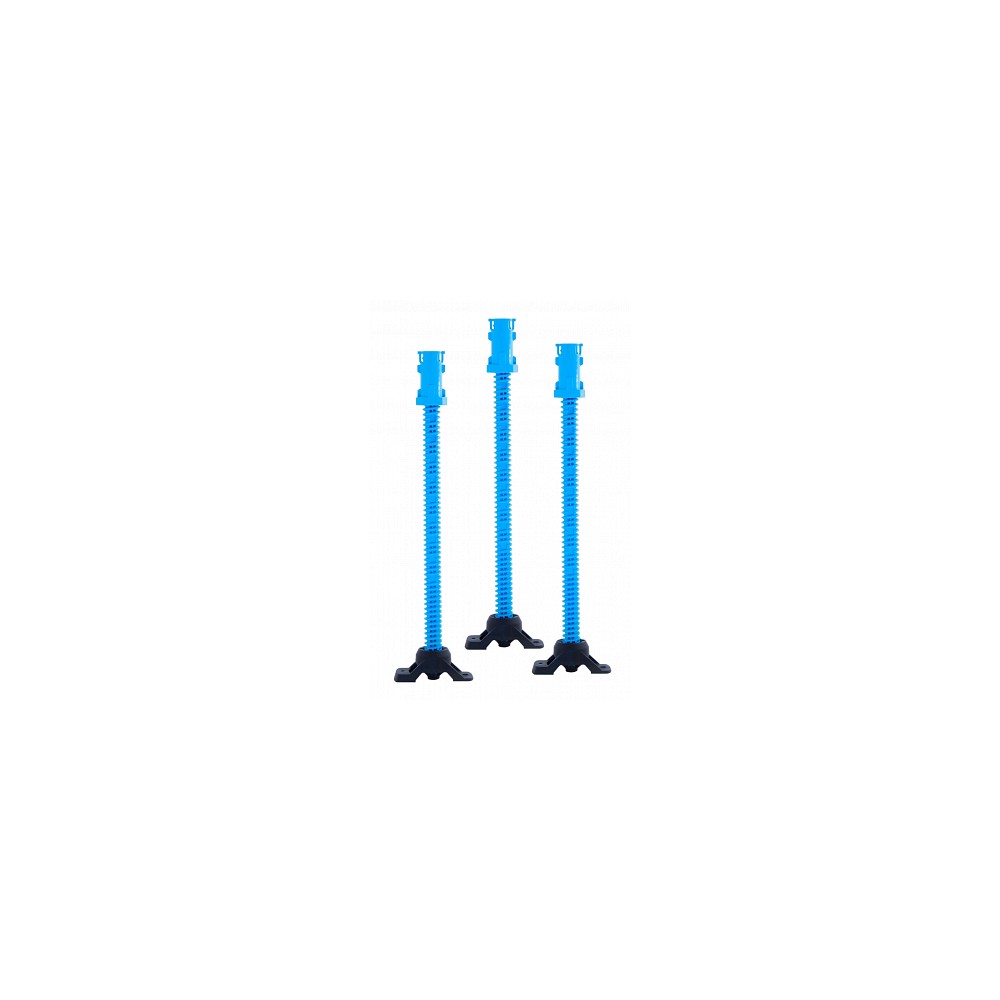

Vieser One support leg package
