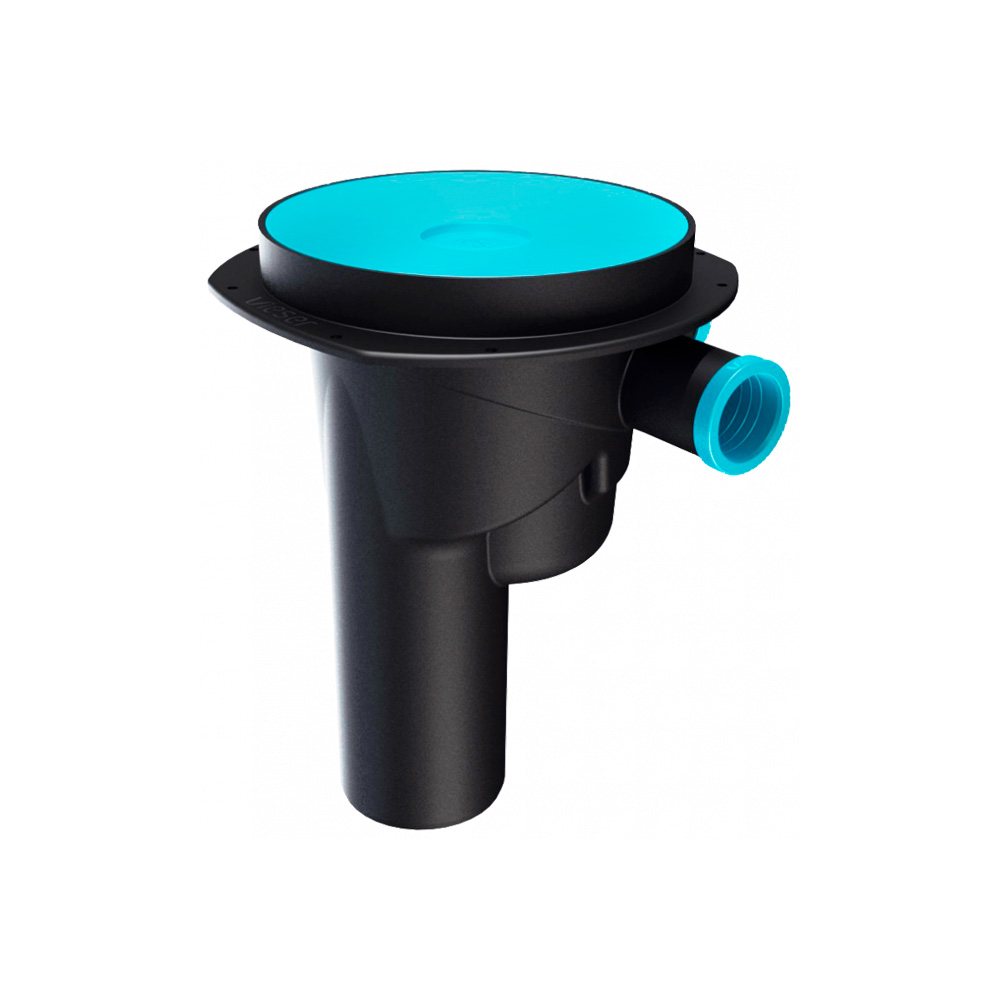

Vieser One vertical floor drain DN75 3×32/40

FLOOR DRAINS

Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Read more

You can download water proofing pictures as a PDF & DWG file.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser One floor drain is compatible with Vieser design floor drains:

Vieser Line (Vieser Line – Linear drain system)
Vieser Dot (Vieser Dot – Design floor drain system)
Vieser Square (Vieser Square – Design floor drain system)
Vieser Corner (Vieser Corner floor drain system)

Avainlippu
Vieser no52630
EAN6418685526304
HVAC3315935
MaterialPolypropylene PP
Packaging (box/pallet)15/120
Virtaama2,3 l/s

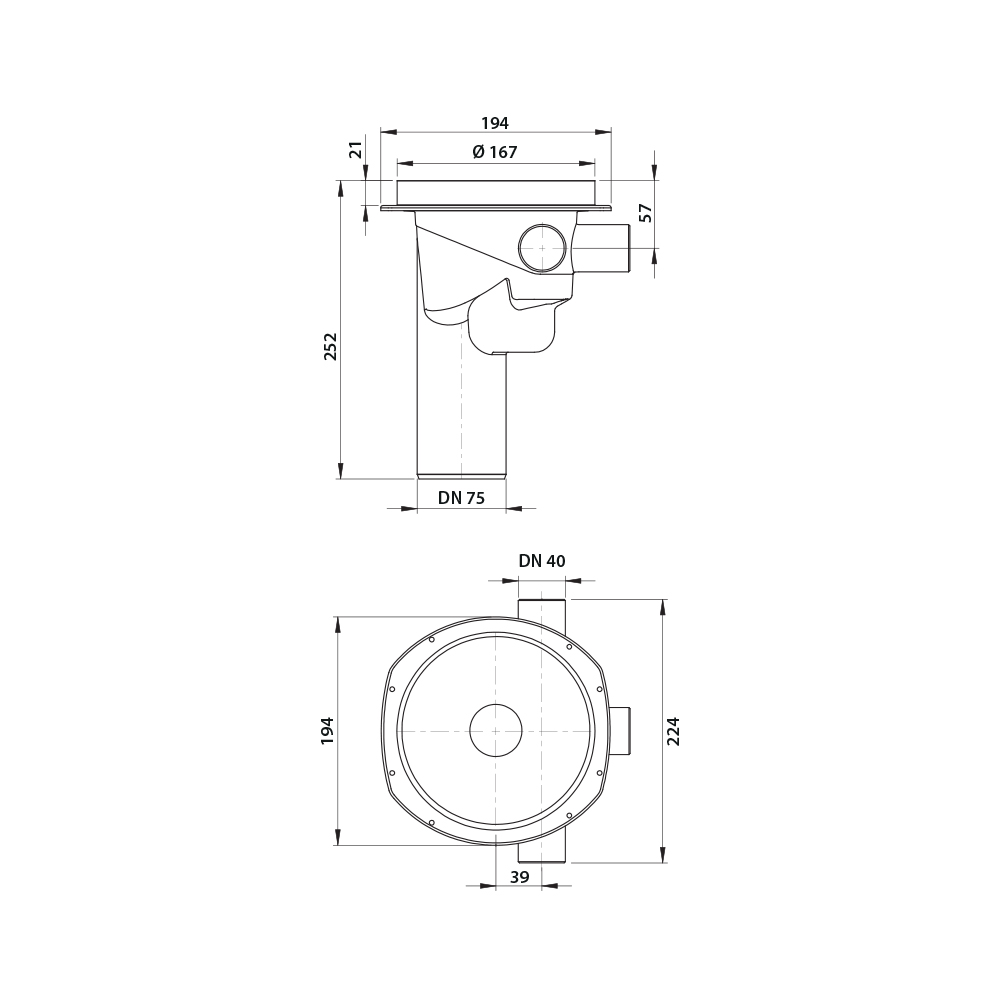

Product dimensions224 x 224 x 252 mm
Product diameter150 mm
Package weight0.65 kg
Product dimensions224 x 224 x 252 mm
Product diameter150 mm
Package weight0.65 kg
