|Material||Stainless steel (AISI 304)|
|Product dimensions||197 x 197 x 14.5 mm|
|Package dimensions||15 x 225 x 250 mm|
|Package weight||0.6 kg|

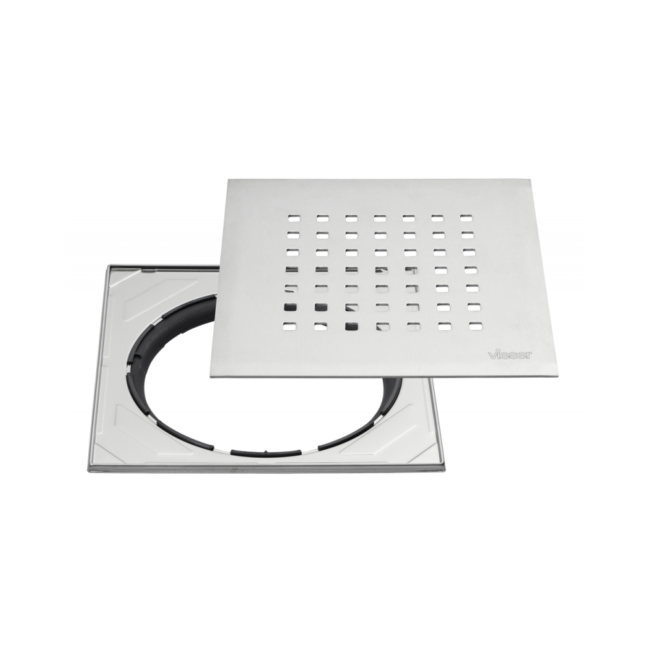

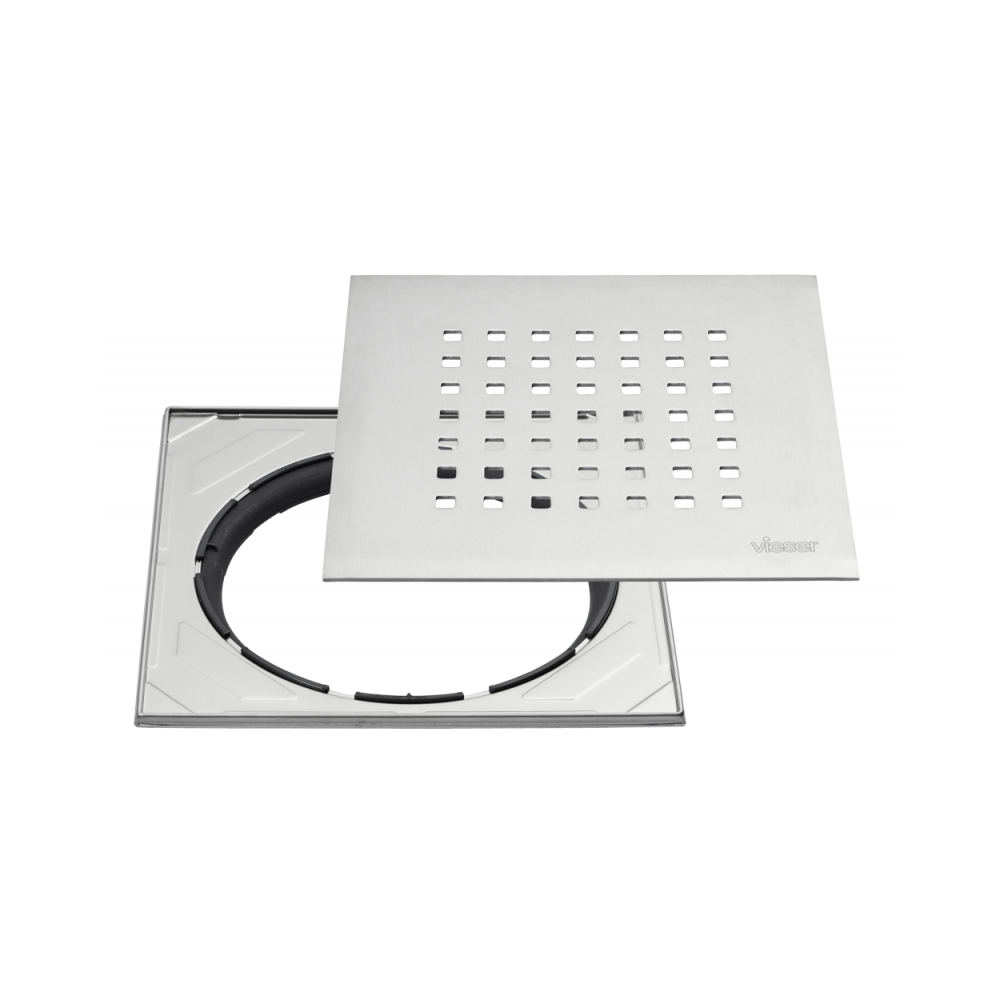

Vieser Grid rating with adjustable steel frame 197×197
FLOOR DRAINS AND ACCESSORIES, SQUARE GRATINGS
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.
Type approved based on European standard
(EN 1253) – Withstands up to 300 kg, excellent flow properties
Strong and pleasant underfoot – remains firmly in place
Manufactured in Finland
Compatible with all Vieser floor drains
Adjustable steel frame – easy to install
The package includes the Vieser stainless steel Grid square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.
Vieser’s drain and grating combination comes with a 10-year system guarantee.
Download a tiling example:
(PDF) Tiling example for Vieser round and square gratings
(DWG) Tiling example for Vieser round and square gratings
