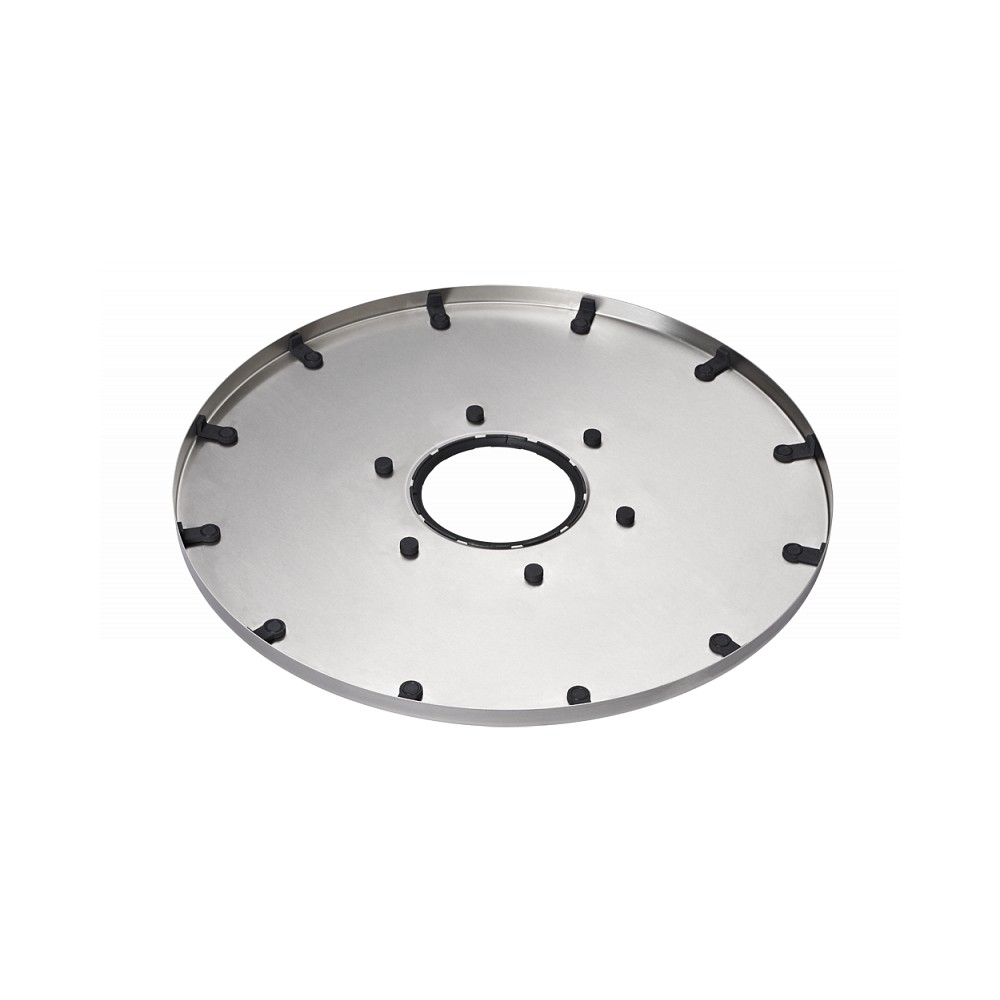

Vieser Dot tray 600


The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately.

Check out the Vieser floor drain options here
Check out the Vieser Dot cover options here

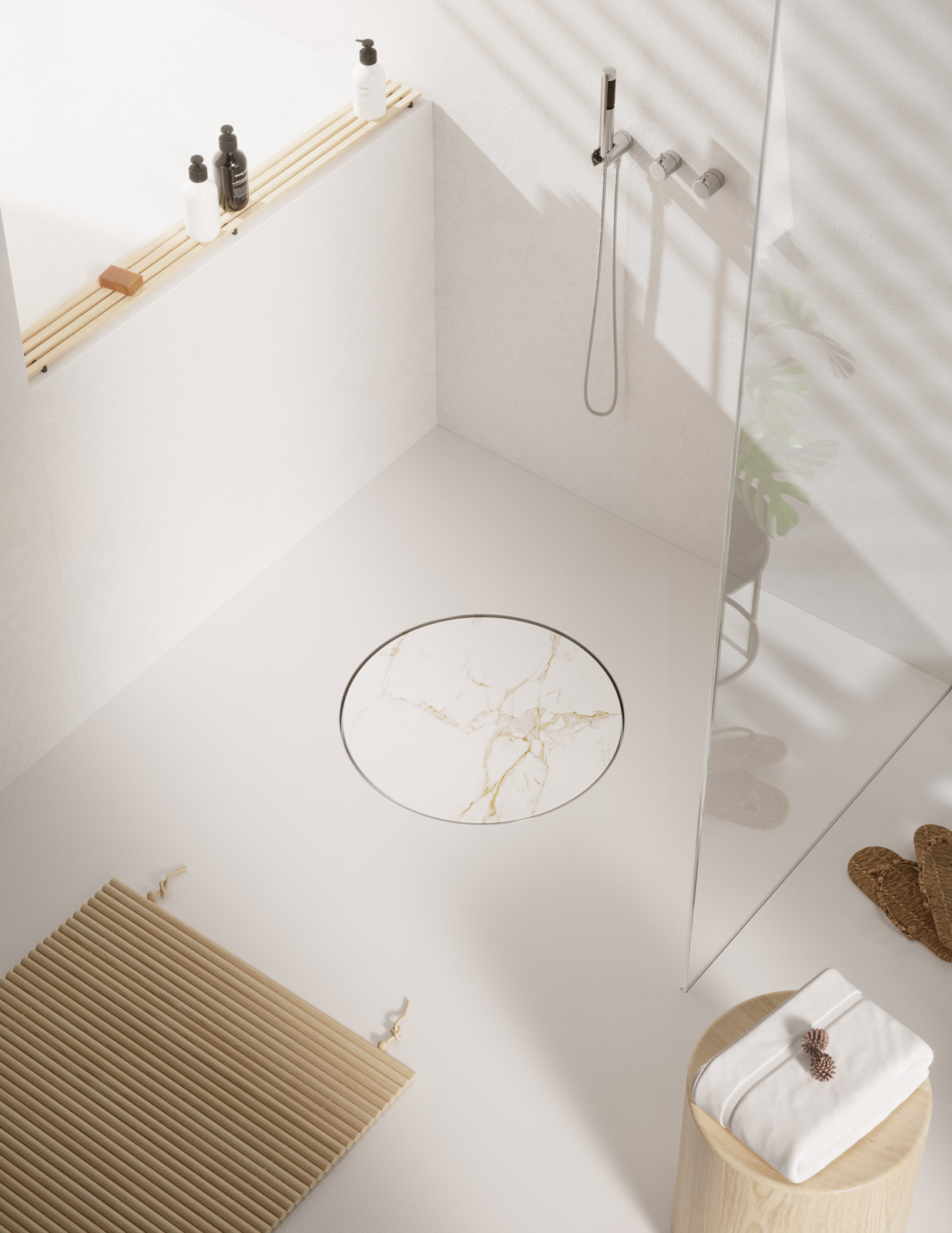

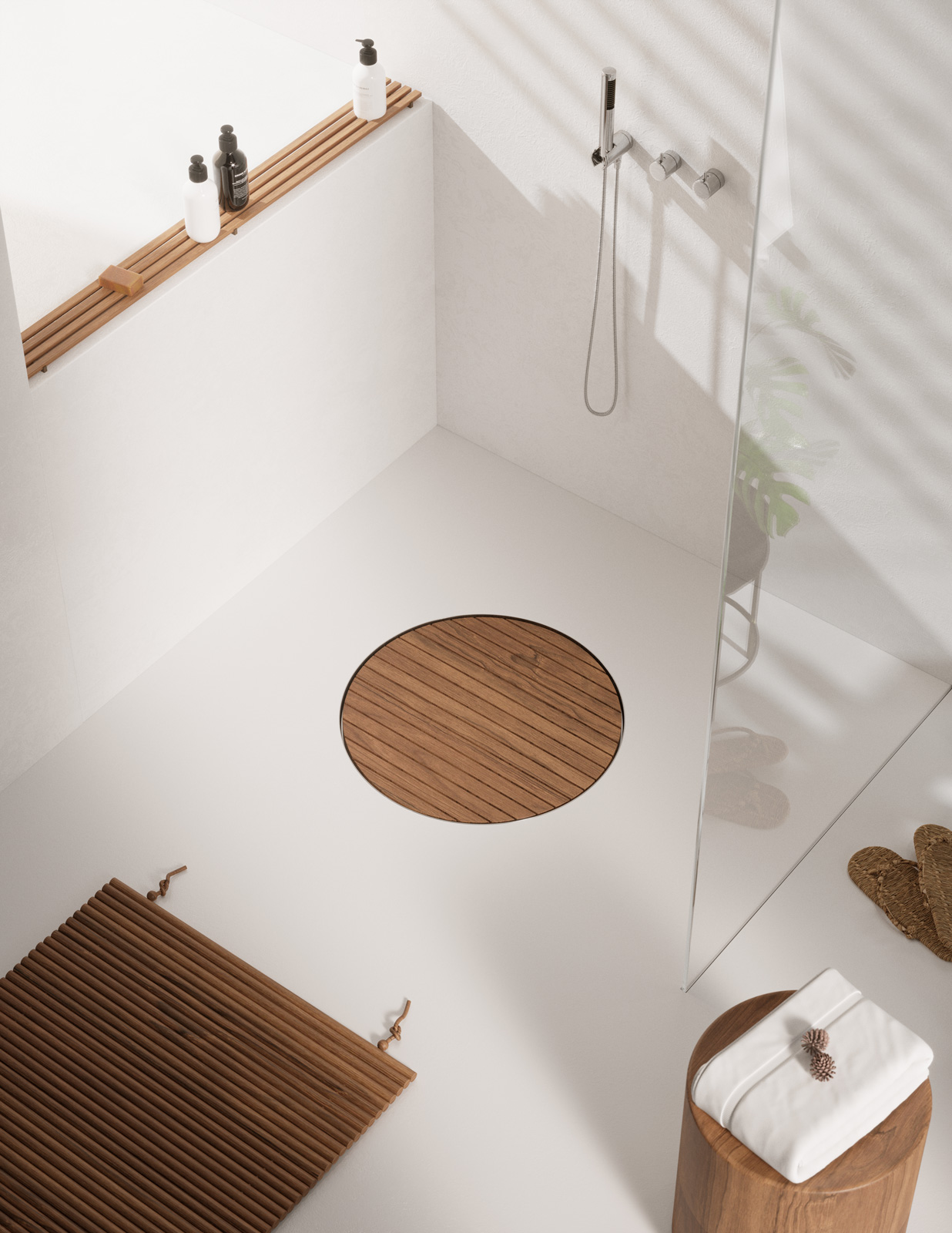

Vieser Dot, with its innovative shape and size, represents a new kind of floor drain system that adds the finishing touch to your bathroom’s interior.

Read more

Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
With Vieser One drains, you can also make use of three DN32/40 side inlets for the floor drain to facilitate the placement of the drain and the installation of the pipeline.
Suitable for both new construction and renovations.
The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)

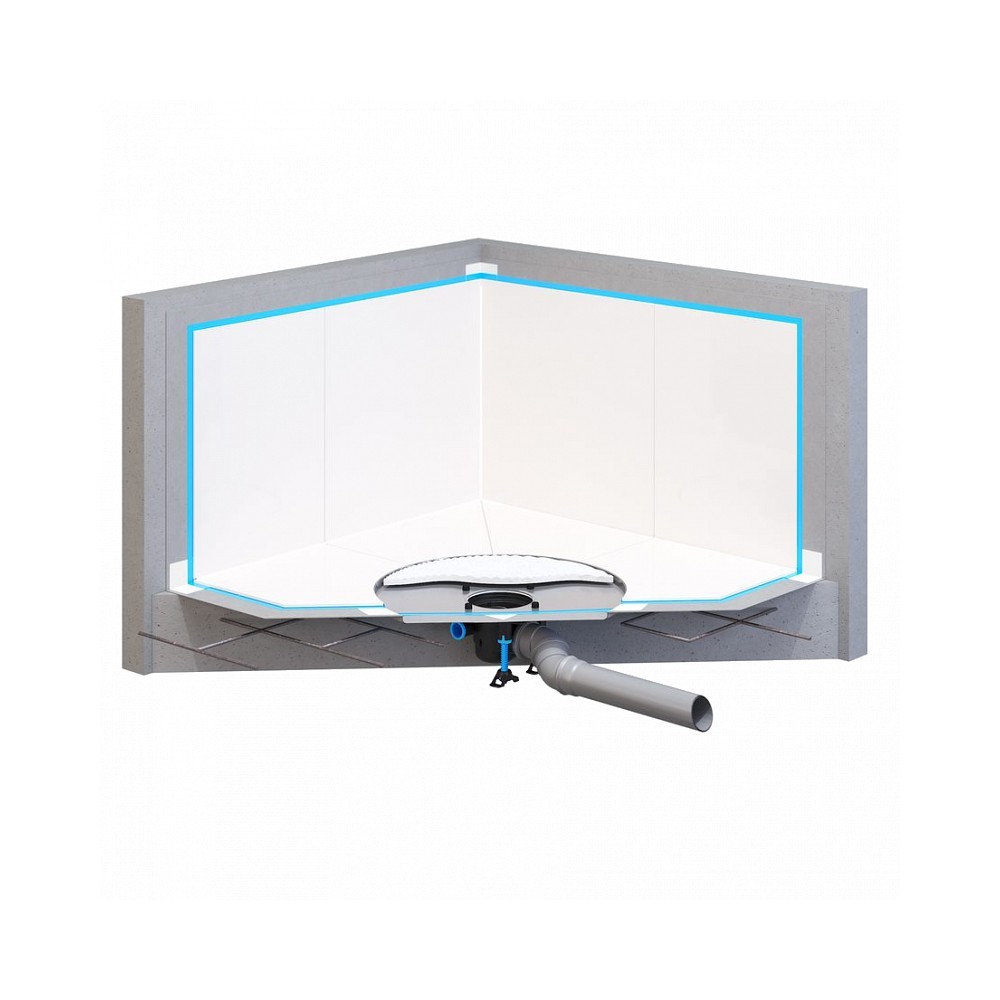

The Vieser Dot floor drain system has a patented solution that enables entirely safe installation and a completely watertight membrane joint. The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate) & (Vieser One and Vieser product certificate when using the Vieser membrane flange)
Vieser Dot is a very user-friendly floor drain system. Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.
Vieser’s drain and cover combination comes with a 10-year system guarantee.

Avainlippu Design From Finland
Vieser no6001178
MaterialStainless steel (AISI 304)
Packaging (box/pallet)10
Product dimensions596 x 596 x 23 mm
Product diameter600 mm
Package dimensions660 x 660 x 100 mm
Package weight5 kg
