Vieser Corner Core grating and frame

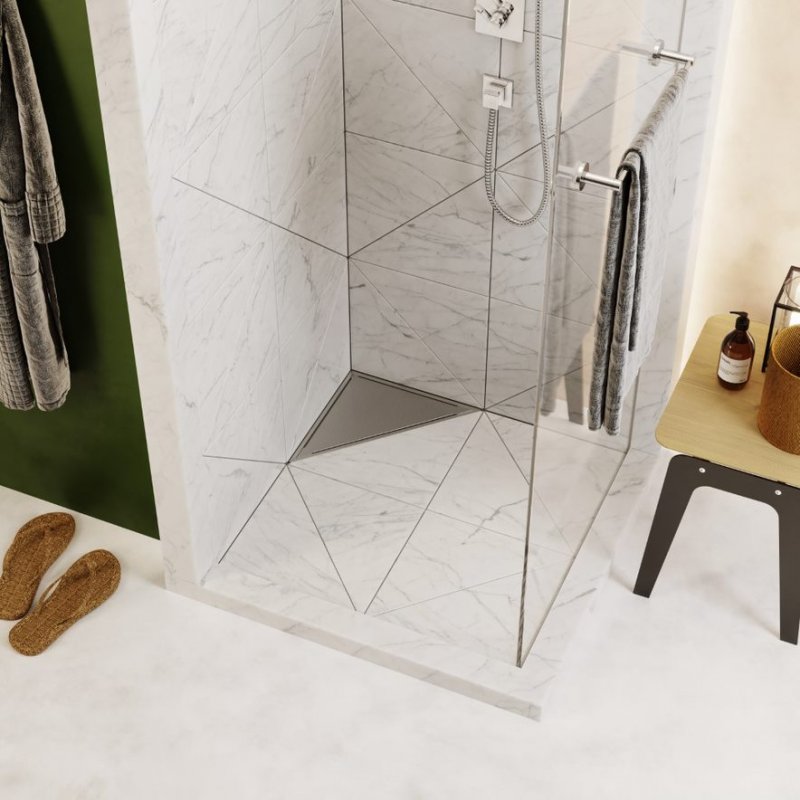

An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Core adds a personal touch and a polished look to your bathroom.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system

Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
Suitable for both new construction and renovations.
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.

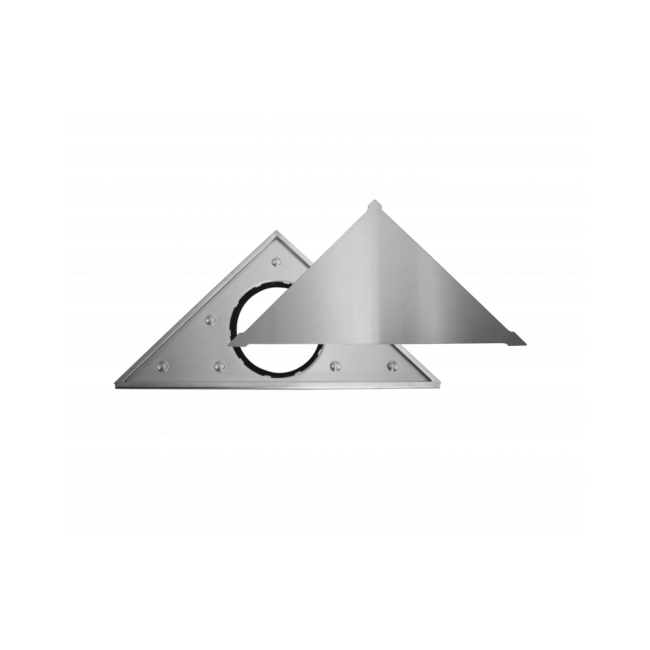

The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Read more

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system – Tiling example

(DWG)Vieser Corner floor drain system – Tiling example

Avainlippu Design From Finland
Vieser no52928
MaterialStainless steel (AISI 304)
Product dimensions526 x 376 x 8 mm
Package dimensions526 x 376 x 30 mm
Package weight1.2 kg
